Overview

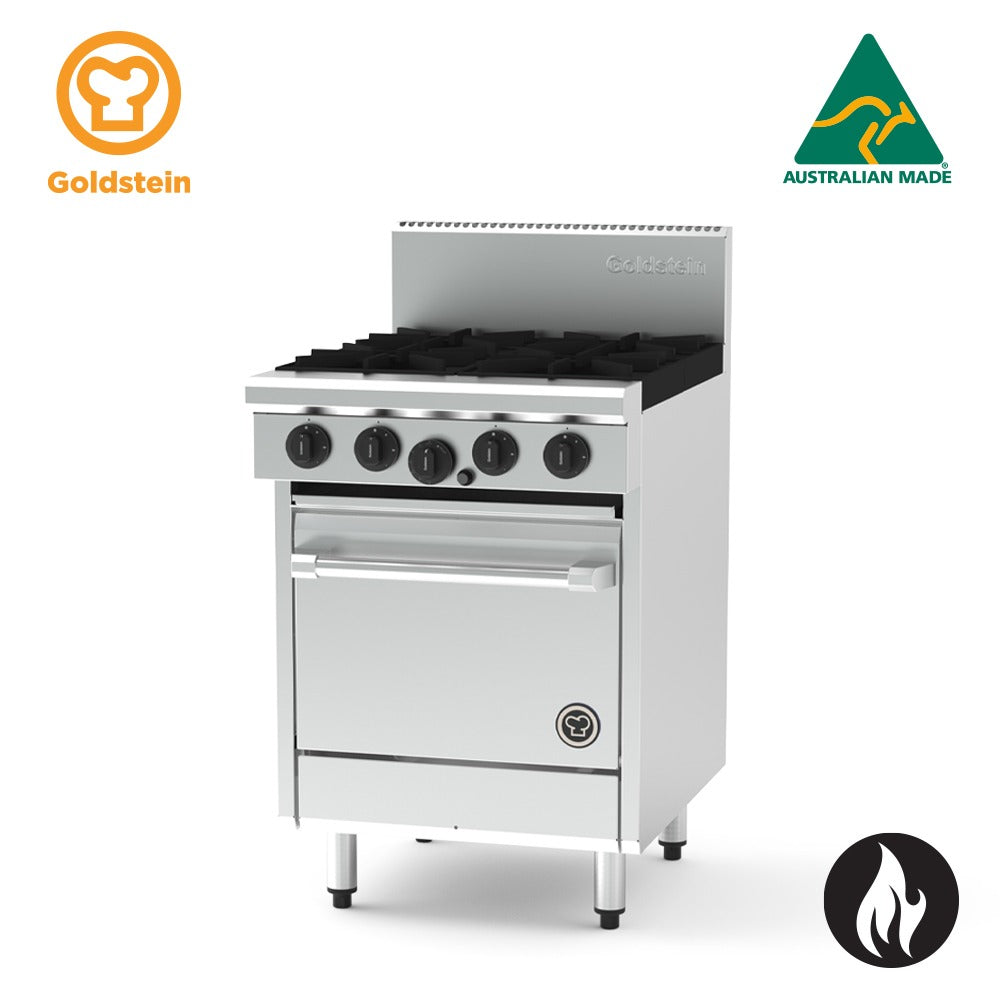

Goldstein PF420-X 800 X-Series 500mm Gas Oven Range with 4 Burners

The Goldstein PF420-X is an Australian-made, heavy-duty gas oven range from the trusted 800 X-Series, purpose-built to handle the rigorous demands of professional commercial kitchens. Constructed on a fully welded stainless steel body, it combines four high-performance 33 MJ open cooktop burners with a gastronorm-compatible static gas oven, delivering reliable and consistent results throughout a full service shift.

The flexible modular cooktop design supports a range of configurations including optional griddle plates and chargrill sections in 305 mm and 610 mm sizes, making it adaptable to diverse menu requirements. The oven cavity features full vitreous enamel insulation on both the interior and door for even heat distribution and straightforward cleaning, with thermostatic control spanning 100°C to 280°C and piezo ignition for quick, dependable starts. Pilot flame failure protection is fitted to both the open burners and the oven burner for added safety, while ergonomic controls, adjustable legs, and a sleek stainless steel fascia ensure long-term productivity and ease of daily maintenance.

Key Benefits

• Four 33 MJ removable open burners deliver even, high-output heat across the cooktop, supporting peak productivity during service.
• Fully insulated vitreous enamel oven interior and door promote consistent heat distribution and reduce cleaning time between services.
• Gastronorm 1/1 compatible oven cavity with a three-position shelf system accommodates standard GN trays, streamlining prep and batch cooking.
• Modular cooktop design allows griddle or chargrill sections (305 mm or 610 mm) to be incorporated, adapting the unit to changing menu needs.
• Pilot flame failure protection on open burners and the oven burner provides an important safety safeguard in a busy kitchen environment.
• Adjustable legs ranging from 140 to 170 mm allow the unit to be levelled on uneven floors, ensuring stable, safe operation.
• Stainless steel fascia, spill zones, and removable drip trays make daily cleaning and maintenance quick and practical.
• Constant pilot flame maximises operating efficiency and minimises ignition delays during a busy service.
• Australian-made construction with heavy-duty welded stainless steel ensures long-term rigidity and durability under continuous commercial use.

Key Features

• 4 x 33 MJ/h removable, high-performance open cooktop burners for even heat distribution.
• 40% of flame ports located in the centre cross of each burner for concentrated, efficient heat output.
• Cast iron star trivets for sturdy, stable pot support on the cooktop.
• Gas static oven with 100°C to 280°C thermostatic control.
• Piezo ignition on the oven burner for reliable, tool-free starting.
• Oven interior and door fully insulated and lined with vitreous enamel for even heat retention and easy cleaning.
• GN 1/1 compatible oven cavity (500 x 560 x 355 mm) with three shelf positions and robust wire rack inserts that lift out and reposition with ease.
• Pilot flame failure protection on all open burners and the oven burner.
• Constant pilot flame for maximised operating and energy efficiency.
• Fully welded stainless steel body for structural rigidity and long-term durability.
• Fully welded surrounds accommodate optional griddle and chargrill sections.
• Flexible modular cooktop design supports burner, griddle plate, and chargrill configurations in 305 mm and 610 mm modules.
• Optional griddle and BBQ (chargrill) sections positioned on the left-hand side.
• Stainless steel fascia and sides for a professional finish and corrosion resistance.
• Spill zones and removable drip trays for efficient cleaning and hygiene management.
• Large, heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment.
• Ergonomic oven door handle and angled corners for a refined, practical design.
• Adjustable legs ranging from 140 to 170 mm for levelling on uneven surfaces.
• Compatible with Natural Gas or LPG with 3/4" BSP gas connection.

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 165
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 126
• Shipping Weight: 180
• Packed Width (mm): 720.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 920.0
• Shipping Cubic: 0.794880000m3
• Power / Gas Input: 152/152 MJ
• Power Rating: 126 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 152
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Cast Iron Trivets
