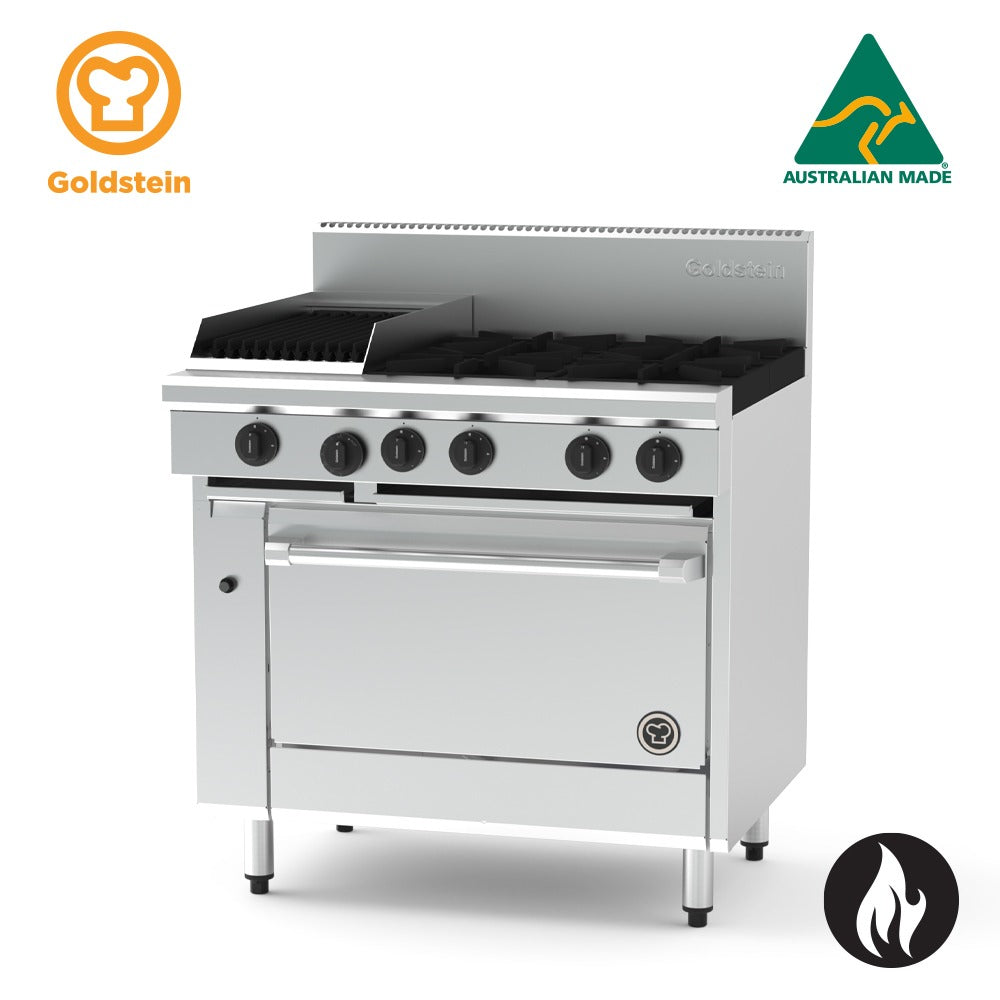

Goldstein PF12Q428EFF-X 800 X-Series 700mm (28in) Gas Oven Range with Chargrill & Electric Fan Forced Oven

The Goldstein PF12Q428EFF-X is a heavy-duty commercial oven range from the 800 X-Series, bringing together four high-output gas burners, a 305 x 510mm chargrill section, and a 28-inch electric fan forced oven within a single 914mm-wide unit built to handle the rigours of busy commercial kitchens. The entire unit is manufactured in Australia from fully welded stainless steel, engineered to deliver long-term reliability and consistent cooking performance across a broad range of menu applications.

A modular cooktop design accommodates flexible arrangements of burners, griddle plates, and chargrill sections in 305mm or 610mm configurations, while the fan forced oven circulates heat evenly throughout its gastronorm-compatible cavity. Practical details including stainless steel spill zones, removable drip trays, reinforced control knobs, and fully insulated vitreous enamel oven surfaces keep daily operation and routine cleaning manageable for kitchen staff.

Key Benefits

• Fan forced electric oven ensures consistent, even heat distribution for reliable baking and roasting results across the full cavity
• Four 33 MJ high-performance cooktop burners with 40% of flame ports concentrated in the centre cross deliver uniform heat for peak productivity
• Constant pilot flame system maximises operating and energy efficiency, while pilot flame failure protection on open burners and the oven burner enhances safety
• Reversible cast iron chargrill grates offer two char pattern options and two levelling positions (flat or gradient), giving chefs greater control over grilling outcomes
• GN 1/1 oven capacity with three-position racking and robust chrome wire racks that lift out without tools accommodates a full range of gastronorm cookware
• Fully welded stainless steel body with stainless steel fascia and sides provides structural rigidity and long-term durability in high-volume kitchen environments
• Stainless steel spill zones and removable drip trays simplify cleaning and reduce downtime between service periods
• Adjustable legs from 140mm to 170mm allow levelling on uneven floors, and an easy-to-service design reduces maintenance costs over the unit's working life

Key Features

• Four removable 33 MJ high-performance even-heat cooktop burners with 40% of flame ports in the centre cross of each burner
• Cast iron star trivets on cooktop burners
• 305 x 510mm chargrill (BBQ) section positioned on the left-hand side of the cooktop
• Heavy-duty cast iron reversible chargrill grates with two char pattern options
• Chargrill features two levelling options: flat or gradient
• 2 x 20 MJ inline radiant burners per 305mm chargrill section
• Ceramic rocks option available for chargrill to increase heat retention and flavour
• 28-inch (approximately 710mm) electric fan forced oven
• Oven thermostatic control range: 100°C to 280°C
• Piezo ignition on oven
• Oven and door fully insulated with vitreous enamel lining, promoting uniform heat retention and straightforward cleaning
• GN 1/1 oven capacity with three-position racking
• Robust chrome wire racks engineered for straightforward removal and reinsertion
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure protection on open cooktop burners and oven burner
• Heavy-duty fully welded stainless steel body for structural rigidity and long-term durability
• Fully welded surrounds across griddle and chargrill sections
• Flexible modular cooktop design supporting varied layouts of burners, griddle plates, and chargrill sections in 305mm or 610mm increments
• The broader 800 X-Series range offers a choice of gas static, electric static, fan forced, and convection oven configurations, all in gastronorm-compatible sizes
• Stainless steel fascia and sides
• Stainless steel spill zone and removable drip trays for straightforward cleaning
• Large heat-resistant reinforced control knobs with clearly visible settings and full high-to-low flame adjustment range
• Streamlined appearance with ergonomic door handle and angled corners
• Adjustable legs: 140mm to 170mm height range
• Designed for easy servicing and maintenance

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 283
• Power / Gas Input: 172/170 MJ; 5.4 kW
• Country of Origin: Australia (Made)
