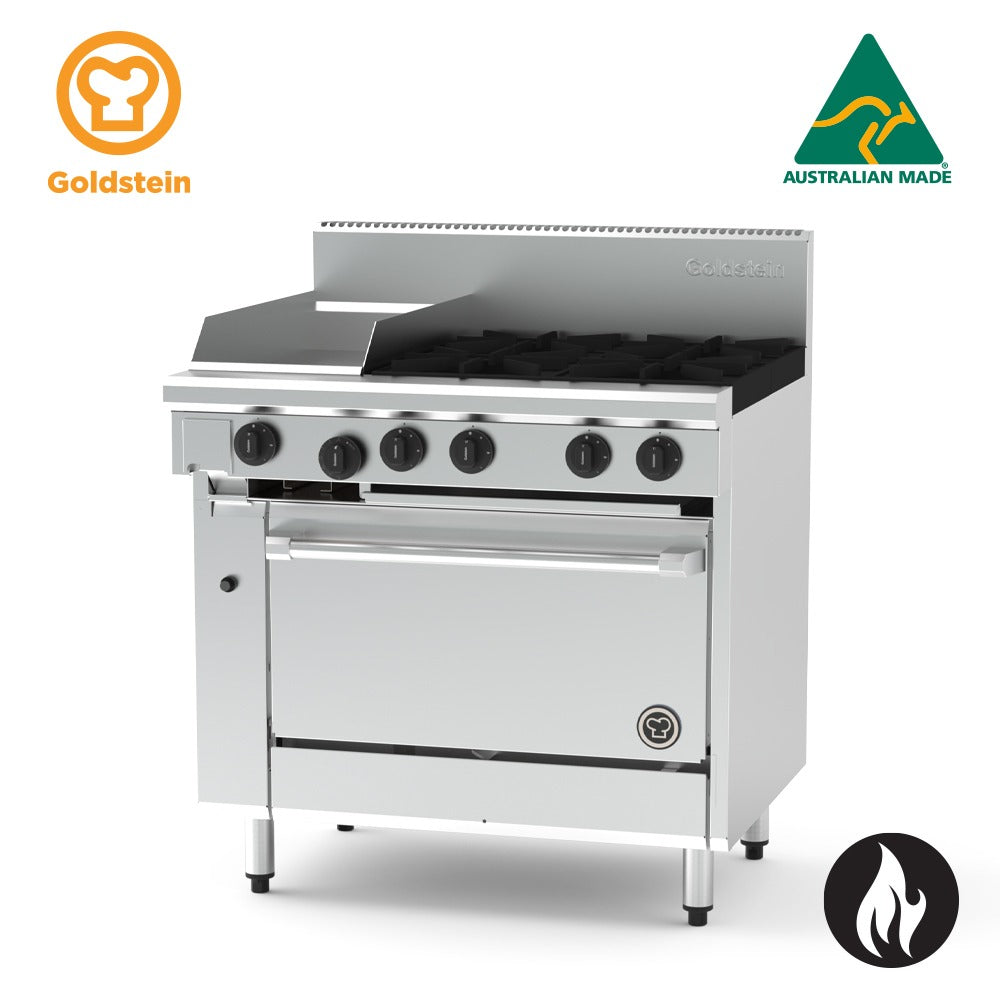

Goldstein PF12G428EFF-X 800 X-Series 700mm (28in) Electric Fan Forced Oven Range

The Goldstein PF12G428EFF-X is a heavy-duty commercial oven range from the Australian-made 800 X-Series, combining a four-burner gas cooktop, a 305mm mild steel griddle plate, and a 700mm (28-inch) electric fan forced oven in a single unit. Built with a fully welded stainless steel body, it is engineered to withstand the rigours of high-volume commercial kitchen operation day after day.

The modular X-Series cooktop design supports flexible configuration of burners, griddle plates, and chargrill sections, while the fan forced electric oven delivers consistent, even heat across its full GN 1/1 gastronorm-compatible cavity. Safety, efficiency, and ease of cleaning are built into every detail, from constant pilot flame technology and flame failure devices to vitreous enamel oven linings and removable drip trays.

Key Benefits

• Electric fan forced oven circulates heat evenly throughout the cavity, producing consistent baking and roasting results across the entire gastronorm-compatible space
• Four high-output 33 MJ cooktop burners with 40% centre-cross flame port distribution deliver uniform heat for peak cooking productivity
• Constant pilot flame maximises energy efficiency and ensures rapid, reliable ignition during busy service periods
• Pilot flame failure protection on open burners and a flame failure device on the oven burner enhance safety for kitchen staff
• Modular cooktop design allows various combinations of burners, griddle plates, and chargrill options across 305mm, 610mm, and 914mm configurations to suit changing menu needs
• Vitreous enamel oven interior and door insulation retain heat effectively while making post-service cleaning straightforward
• Stainless steel fascia and sides, combined with spill zones and removable drip trays, minimise cleaning time and maintain hygiene standards
• Adjustable legs (140-170mm) allow levelling on uneven floors, and an accessible design makes routine servicing quick and simple
• Australian-made construction ensures local compliance and parts availability, supporting long-term reliability in commercial kitchens

Key Features

• Heavy-duty fully welded stainless steel body for structural rigidity and long-term durability
• Fully welded surrounds for griddle and chargrill sections
• Flexible modular cooktop accommodating various burner, griddle plate, and chargrill configurations (305mm, 610mm, and 914mm sections)
• Four removable, high-performance 33 MJ gas cooktop burners with even heat distribution
• 40% of flame ports positioned in the centre cross of each burner for uniform heat output
• Cast iron star trivets on cooktop burners
• 305 x 520 x 20mm thick mild steel griddle plate
• 20 MJ griddle burner per every 305mm griddle section
• Piezo ignition on both griddle and oven
• Griddle and BBQ section positioned on the left-hand side
• 700mm (28-inch) electric fan forced oven cavity
• Thermostatic oven control ranging from 100°C to 280°C
• Oven and door fully insulated with vitreous enamel lining for even heat distribution and easy cleaning
• GN 1/1 gastronorm-compatible oven capacity
• Three-position oven racking with heavy-duty chrome wire rack supports designed for easy removal
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure device on open burners; flame failure device on oven burner
• Stainless steel fascia and sides with spill zone and removable drip trays
• Large heat-resistant reinforced control knobs with clearly visible high-to-low flame settings
• Ergonomic door handle and angled corners for a professional, streamlined appearance
• Adjustable legs from 140mm to 170mm for levelling on uneven surfaces
• Available in multiple oven configurations: gas fan forced (PF12G428FF-X), electric fan forced (PF12G428EFF-X), gas convection (PFC12G428-X), electric convection (PFC12G428E-X), and electric static (PF12G428E-X)
• Made in Australia

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 229
• Power / Gas Input: 152/152 MJ; 5.4 kW
• Country of Origin: Australia (Made)
