Overview

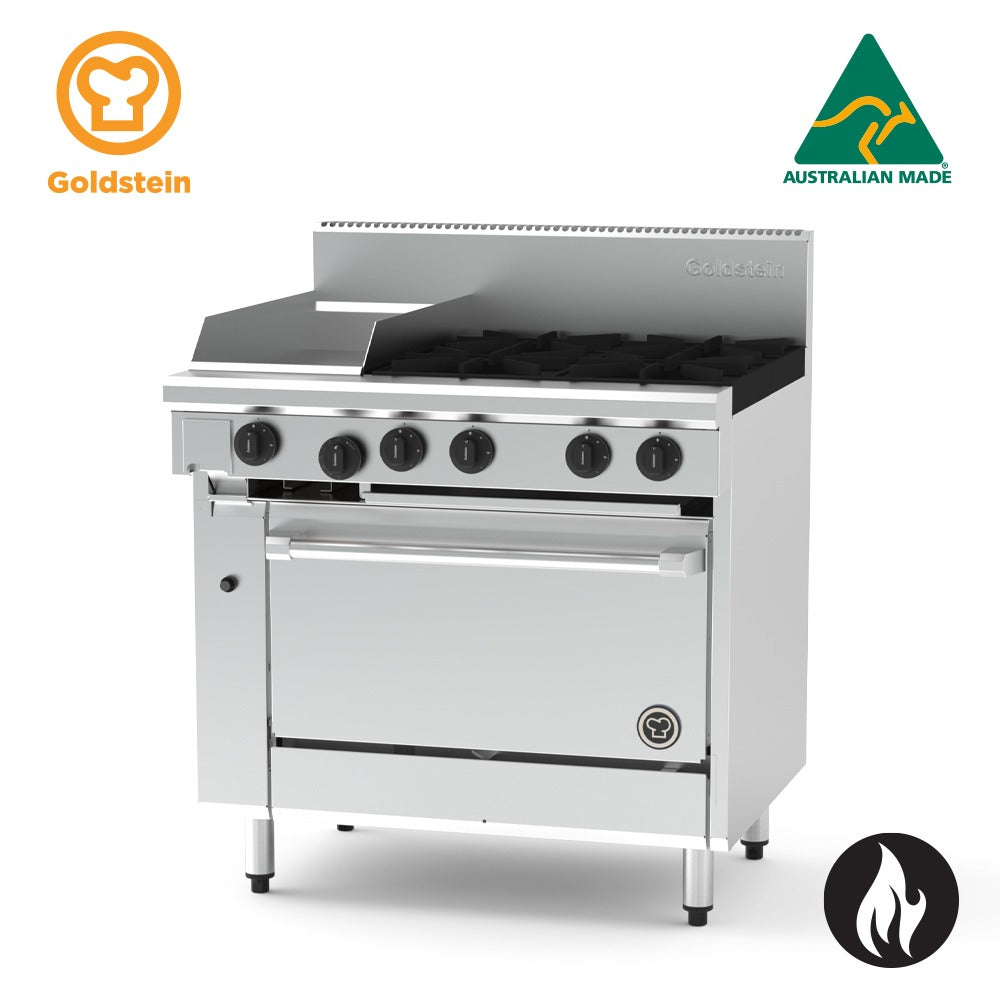

Goldstein PF12G428FF-X 800 X-Series 700mm 4 Burner & 305mm Griddle Fan Forced Gas Oven Range

The Goldstein PF12G428FF-X is an Australian-made 914mm wide commercial oven range from the 800 X-Series, combining four high-performance gas burners with a 305mm mild steel griddle plate and a 700mm fan forced gas oven. Designed for the rigours of busy commercial kitchens, the unit is built around a heavy duty fully welded stainless steel body with stainless steel fascia, sides, spill zones and drip trays, delivering the structural integrity and ease of cleaning that professional operations demand.

The flexible modular cooktop design supports various combinations of burners, griddle plates and chargrill sections in 305mm, 610mm and 914mm configurations, giving operators genuine versatility as their menu evolves. The fan forced gas oven is fully insulated with a vitreous enamel interior and door, offers GN 1/1 capacity with three-position racking, and is thermostically controlled from 100°C to 280°C, making it equally suited to baking, roasting and high-volume catering production.

Key Benefits

• Four 33 MJ removable cooktop burners with 40% of flame ports concentrated in the centre cross deliver even, high-performance heat across the cooking surface for consistent results during peak service.
• The 20mm thick mild steel griddle plate with a dedicated 20 MJ burner per 305mm section provides reliable, uniform surface temperatures ideal for searing, griddling and breakfast service.
• Fan forced gas oven with vitreous enamel lining ensures even heat circulation and simple clean-down, reducing labour between services.
• Constant pilot flame design maximises energy efficiency and minimises ignition delays, while pilot flame failure protection on open burners and flame failure safeguard on the oven burner enhance operational safety.
• GN 1/1 compatible oven cavity with three-position racking and heavy duty chrome wire rack supports accommodates standard gastronorm pans, streamlining prep and service workflows.
• Adjustable legs ranging from 140mm to 170mm allow the unit to be levelled precisely on uneven kitchen floors without tools or specialist intervention.
• Ergonomic door handle, angled corners and large heat-resistant reinforced control knobs with clearly visible high-to-low flame markings make the range intuitive and comfortable to operate under pressure.
• Fully welded construction and a design engineered for easy servicing reduce downtime and support a long operational lifespan in demanding commercial environments.
• Multiple oven configurations available within the same X-Series platform, including gas fan forced, electric fan forced, gas convection, electric convection and electric static, allowing sites to specify the energy source and cooking method that suits their operation.

Key Features

• Australian-made Goldstein 800 X-Series commercial oven range
• Four removable 33 MJ high-performance gas cooktop burners with even heat distribution
• 40% of cooktop burner flame ports located in the centre cross of each burner for focused, consistent heat
• Cast iron star trivets on cooktop burners
• 305 x 520mm, 20mm thick mild steel griddle plate positioned on the left-hand side of the cooktop
• 20 MJ griddle burner per 305mm griddle section with piezo ignition
• Flexible modular cooktop accepts griddle and chargrill sections in 305mm, 610mm and 914mm combinations
• 700mm (28 inch) fan forced gas oven
• Thermostatic oven temperature control from 100°C to 280°C
• Piezo ignition on oven burner
• Oven cavity and door fully insulated with vitreous enamel for even heat and easy cleaning
• GN 1/1 gastronorm compatible oven capacity
• Three-position oven racking with heavy duty chrome wire rack supports designed for easy removal
• Constant pilot flame on cooktop burners for efficient, ready operation
• Pilot flame failure safety system on open burners; flame failure protection on oven burner
• Heavy duty fully welded stainless steel body for structural rigidity and durability
• Fully welded surrounds at griddle and chargrill positions
• Stainless steel fascia and sides throughout
• Stainless steel spill zones and drip trays for straightforward cleaning
• Large, heat-resistant reinforced control knobs with easy-to-read high-to-low flame settings
• Ergonomic door handle and angled corners for a clean, professional appearance
• Adjustable legs from 140mm to 170mm for levelling on uneven surfaces
• Designed for easy field servicing to minimise downtime
• Available in five oven configurations: PF12G428FF-X (gas fan forced), PF12G428EFF-X (electric fan forced), PFC12G428-X (gas convection), PFC12G428E-X (electric convection), PF12G428E-X (electric static)

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 225
• Power / Gas Input: 180/182 MJ; 0.043 kW
• Country of Origin: Australia (Made)
