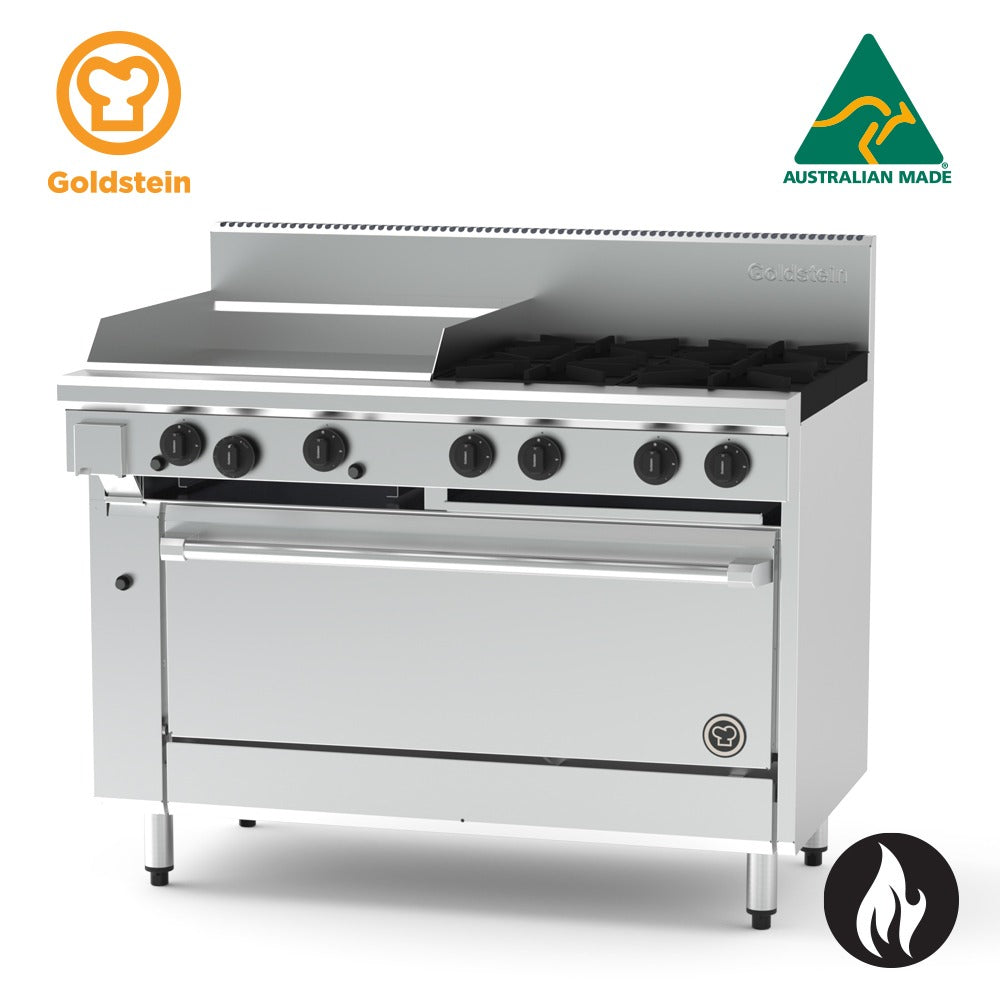

Goldstein PF24G440FF-X 800 X-Series 1005mm (40in) Fan Forced Gas Oven Range

The Goldstein PF24G440FF-X is a 1005mm (40in) commercial oven range from the 800 X-Series, designed and manufactured in Australia for demanding commercial kitchen environments. The cooktop combines four high-performance gas burners with a 610 x 520mm mild steel griddle plate measuring 20mm in depth, while the base houses a fan forced gas oven with thermostatic control and full GN 1/1 compatibility.

Built around a heavy duty welded stainless steel body, this range offers a flexible modular cooktop layout and a choice of oven configurations to suit varying kitchen requirements. Safety features including constant pilot flame ignition and flame failure protection on both open burners and the oven burner ensure reliable, energy-efficient operation across busy service periods.

Key Benefits

• Fan forced gas oven delivers consistent, even heat distribution for reliable baking and roasting across a full GN 1/1 footprint
• Four removable 33 MJ cooktop burners with 40% centre-cross flame port distribution provide high, even heat output for peak productivity
• 610mm mild steel griddle plate with 20 MJ burners per 305mm section expands versatile cooking capacity without needing additional equipment
• Constant pilot flame design maximises energy efficiency, while flame failure protection on burners and oven burner improves safety during service
• Vitreous enamel lining on the oven cavity and door retains heat effectively and simplifies cleaning after service
• Stainless steel fascia and sides, spill zones, and removable drip trays reduce cleaning time and maintain hygiene standards
• Adjustable legs (140–170mm) allow the range to be levelled on uneven floors, and the easy-to-service design minimises downtime
• Modular cooktop design accommodates burner, griddle plate, and chargrill sections in a range of width configurations to suit different kitchen setups

Key Features

• 4 x removable, high-performance gas cooktop burners rated at 33 MJ each
• 40% of burner flame ports located in the centre cross for even heat spread
• Cast iron star trivets on cooktop burners
• 610 x 520mm mild steel griddle plate, 20mm in thickness
• 20 MJ griddle burner for every 305mm griddle section
• Piezo ignition on both griddle and oven
• Constant pilot flame on cooktop burners for improved energy efficiency
• Pilot flame failure protection on open burners; flame failure protection on oven burner
• Fan forced gas oven with thermostatic control from 100°C to 280°C
• Oven cavity and door fully insulated and lined with vitreous enamel for even heat and easy cleaning
• GN 1/1 compatible oven capacity with three rack positions and sturdy chrome wire racks that lift out without tools
• Griddle and BBQ section positioned on the left-hand side of the cooktop
• Flexible modular cooktop design supporting a variety of burner, griddle plate, and chargrill section arrangements
• Available in alternate oven configurations: electric fan forced (PF24G440EFF-X), electric convection (PFC24G440E-X), and electric static (PF24G440E-X)
• Heavy duty welded stainless steel body construction for rigidity and long-term durability
• Fully welded surrounds enclosing the griddle and chargrill sections for structural integrity
• Stainless steel fascia and sides with spill zones and drip trays for simplified cleaning
• Large, heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment
• Ergonomic door handle and angled corners for a practical, streamlined appearance
• Adjustable legs with a height range of 140–170mm
• Designed for ease of servicing in commercial kitchen settings
• Made in Australia
• Total gas input: 207/208 MJ; electric input: 0.043 kW

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 270
• Power / Gas Input: 207/208 MJ; 0.043 kW
• Country of Origin: Australia (Made)
