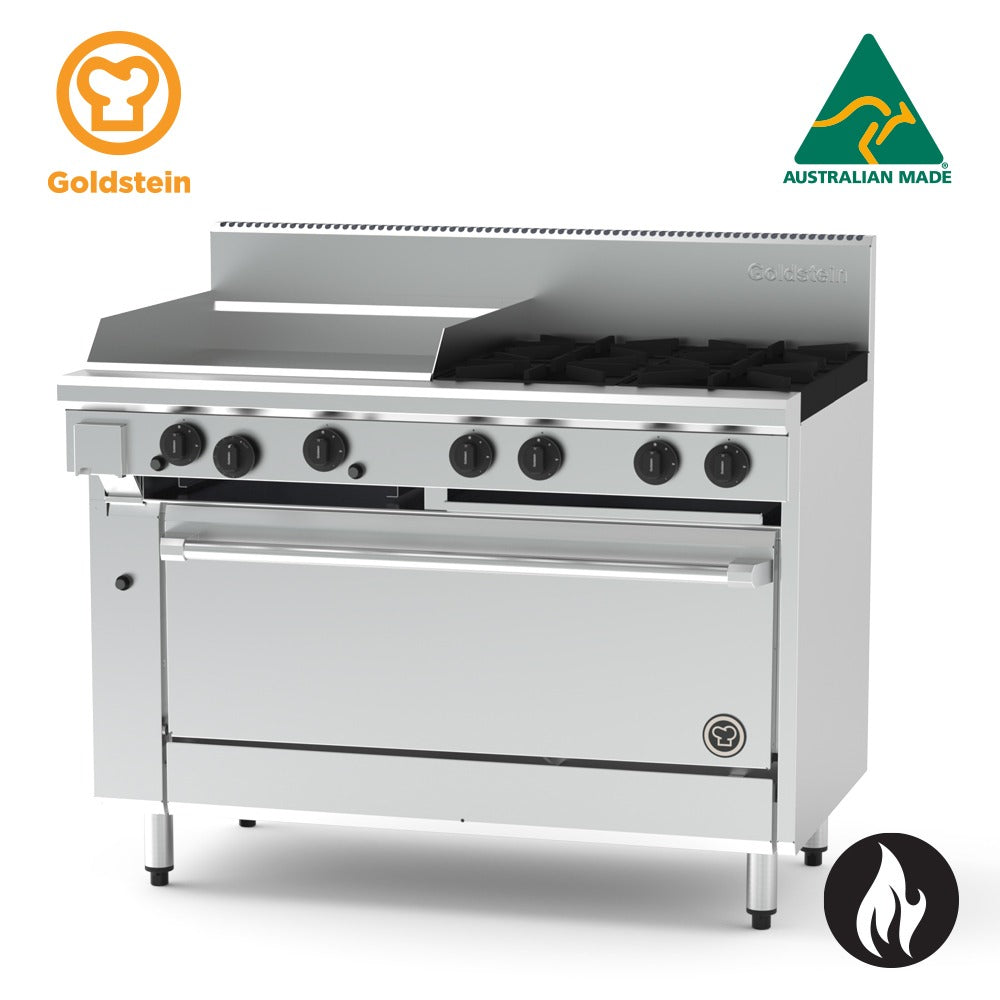

Goldstein PF24G440-X 800 X-Series 1005mm (40in) 4 Burner & 610mm Griddle Gas Static Oven Range

The Goldstein PF24G440-X is an Australian-made commercial oven range from the 800 X-Series, combining four high-output open burners with a 610mm mild steel griddle plate and a 1005mm (40in) gas static oven in a single 1219mm-wide freestanding unit. Built on a heavy-duty fully welded stainless steel body, it is engineered for the rigours of high-volume professional kitchens, with a modular cooktop design that accommodates a range of burner, griddle, and chargrill configurations in 305mm, 610mm, 914mm, and 1219mm increments.

The oven cavity offers GN 1/1 compatibility with three-position racking, thermostatic temperature control from 100°C to 280°C, and a fully insulated vitreous enamel interior for consistent heat distribution and straightforward cleaning. Constant pilot flame ignition with flame-failure protection on both the cooktop burners and the oven burner supports safe, energy-conscious operation, while adjustable legs, removable drip trays, and a stainless steel fascia keep daily maintenance practical. Alternative oven configurations including gas fan-forced, electric fan-forced, electric static, and electric convection are available as separate model options within the X-Series range.

Key Benefits

• Four 33 MJ removable open burners deliver consistent, even heat across the cooktop for high-throughput cooking during service peaks.
• The 20mm thick mild steel griddle plate retains and distributes heat evenly, reducing temperature recovery time between batches.
• GN 1/1 oven capacity with three racking positions maximises usable oven space and suits standard gastronorm trays for efficient service preparation.
• Vitreous enamel lining on the oven interior and door simplifies cleaning and helps maintain steady temperatures throughout cooking.
• Constant pilot flame ignition combined with flame-failure protection on burners and oven improves both energy efficiency and kitchen safety.
• Modular cooktop design supports multiple configurations of burners, griddles, and chargrills, giving operators the flexibility to adapt the range to their menu needs.
• Adjustable legs (140–170mm) allow levelling on uneven kitchen floors, while stainless steel fascia, spill zones, and drip trays reduce cleaning time between services.
• Heavy-duty welded stainless steel construction and heavy-duty chrome wire rack supports are built for the demands of continuous commercial use.
• Multiple oven variants available within the X-Series (gas fan-forced, electric fan-forced, electric static, electric convection) allow operators to select the cooking technology best suited to their operation.

Key Features

• Heavy-duty fully welded stainless steel body for rigidity and long-term durability in commercial environments.
• Four removable 33 MJ high-performance open cooktop burners with even heat distribution; 40% of flame ports positioned in the centre cross of each burner.
• Cast iron star trivets on cooktop burners.
• 610 x 520 x 20mm mild steel griddle plate with 20 MJ griddle burners per every 305mm section.
• Griddle and BBQ section positioned on the left-hand side of the cooktop.
• Fully welded surrounds for the griddle and chargrill option.
• Flexible modular cooktop design accommodating various combinations of burners, griddle plates, and chargrill options in 305mm, 610mm, 914mm, and 1219mm configurations.
• Gas static oven with 1005mm (40in) cavity; GN 1/1 compatible with three-position racking.
• Oven dimensions: 1005mm (W) x 560mm (D) x 355mm (H).
• 100°C to 280°C thermostatic oven temperature control.
• Piezo ignition with flame-failure protection on open burners and oven burner.
• Constant pilot flame for maximised operating and energy efficiency.
• Oven interior and door fully insulated and finished with vitreous enamel for even heat distribution and easy cleaning.
• Heavy-duty chrome wire rack supports designed for easy removal.
• Stainless steel fascia and sides with spill zone and removable drip trays for ease of cleaning.
• Large, heat-resistant reinforced control knobs with clearly visible high-to-low flame settings.
• Ergonomic door handle and angled corners for a sleek, professional appearance.
• Adjustable legs ranging from 140mm to 170mm for levelling on uneven surfaces.
• Gas connection: 3/4 BSP; compatible with natural gas and LPG.
• Freestanding installation; no power supply required (gas operation).
• Australian made.
• Alternative oven options available within the X-Series: gas fan-forced (PF24G440FF-X), electric fan-forced (PF24G440EFF-X), electric convection (PFC24G440E-X), and electric static (PF24G440E-X), all in gastronorm-compatible sizes.

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 260
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 172
• Power / Gas Input: 207/208 MJ
• Power Rating: 172 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 208
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Cast Iron Trivets
