Overview

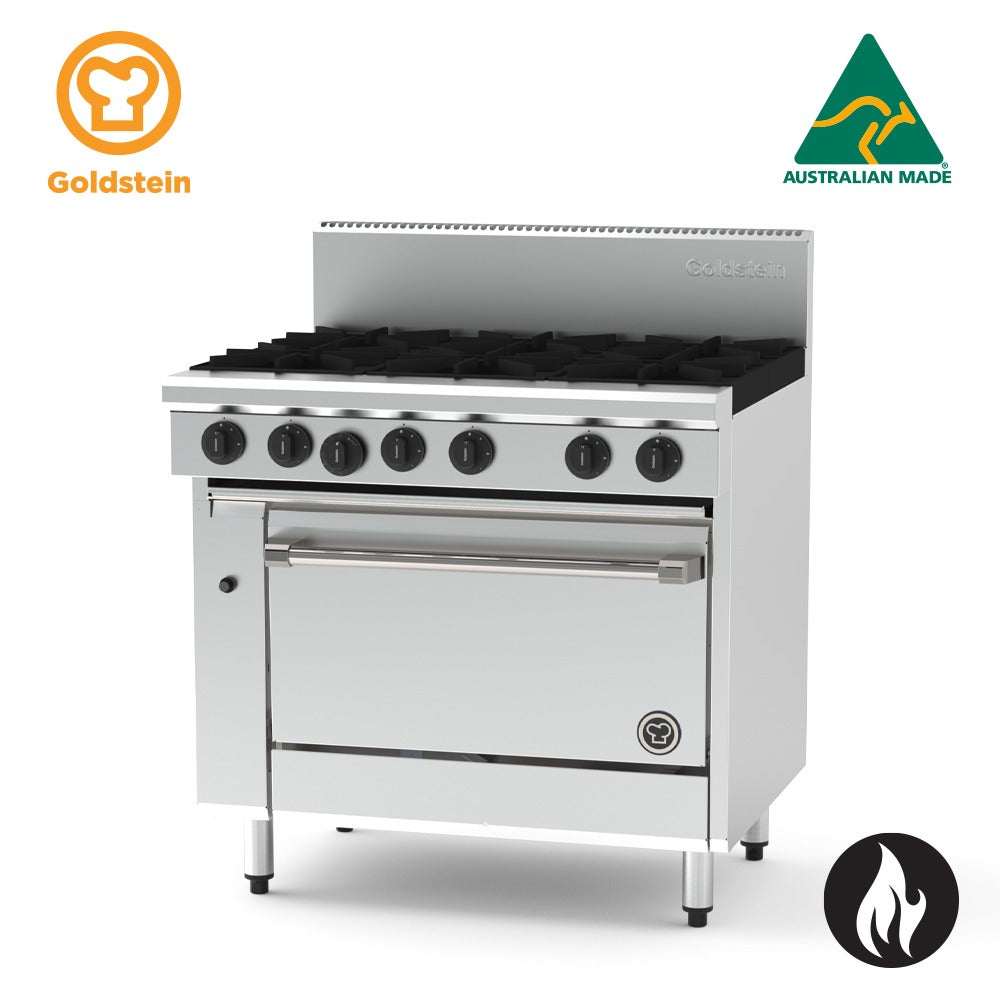

Goldstein PF628-X 800 X-Series 700mm Gas 6 Burner Oven Range

The Goldstein PF628-X is an Australian-made commercial gas oven range from the trusted X-Series 800 line, combining six high-performance 33 MJ open burners with a gastronorm-compatible gas static oven. Built for the rigours of busy professional kitchens, it features a heavy-duty welded stainless steel body, fully insulated vitreous enamel oven cavity, and a flexible modular cooktop that accepts optional griddle plate and chargrill configurations.

Designed for operational efficiency and ease of maintenance, the PF628-X includes cast iron star trivets, constant pilot ignition with flame failure protection, stainless steel spill zones and drip trays, and adjustable legs for levelling on uneven floors. A range of oven variants is also available, including gas fan forced, electric fan forced, and convection options, making the X-Series platform adaptable to a wide variety of commercial kitchen requirements.

Key Benefits

• Six 33 MJ removable open burners deliver consistent, high-output heat across the cooktop for peak productivity during service
• Gastronorm 1/1 compatible oven cavity with three-position racking accommodates standard GN trays, streamlining batch cooking and roasting
• Fully insulated oven and door with vitreous enamel finish ensures even heat distribution and simplifies post-service cleaning
• Constant pilot flame with flame failure protection on both open burners and oven burner maximises safety and energy efficiency
• Modular cooktop design accepts optional 305 mm and 610 mm griddle plates or chargrill sections, allowing the unit to be configured to suit changing menu needs
• Heavy-duty welded stainless steel construction provides long-term rigidity and durability in high-volume commercial environments
• Adjustable legs (140-170 mm) make levelling straightforward on uneven kitchen floors
• Accepts multiple oven upgrade options including gas fan forced, electric fan forced, and convection variants for maximum kitchen flexibility
• Proudly Australian made and supported, ensuring ready access to parts and service

Key Features

• Six removable 33 MJ high-performance open cooktop burners with even heat distribution
• 40% of flame ports located in the centre cross of each burner for concentrated, efficient heat
• Cast iron star trivets for stable pot and pan support
• Gas static oven with 100°C to 280°C thermostatic control
• Piezo ignition on oven burner
• Constant pilot flame on open burners for rapid ignition and energy efficiency
• Pilot flame failure protection on open burners and flame failure on oven burner
• Oven cavity and door fully insulated and finished with vitreous enamel for even heat and easy cleaning
• GN 1/1 compatible oven cavity (700 mm W x 560 mm D x 355 mm H) with three-position racking
• Heavy-duty chrome wire rack supports designed for easy removal
• Heavy-duty fully welded stainless steel body for rigidity and durability
• Fully welded surrounds to support optional griddle plate and chargrill fitment
• Flexible modular cooktop design accommodates various combinations of burners, griddle plates and chargrill sections (305 mm and 610 mm modules)
• Optional griddle and chargrill sections positioned on the left-hand side
• Stainless steel fascia and sides throughout
• Stainless steel spill zone and removable drip trays for ease of cleaning
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment
• Ergonomic oven door handle with angled corners for a contemporary aesthetic
• Adjustable legs from 140 mm to 170 mm for floor levelling
• Freestanding installation with 3/4" BSP gas connection, compatible with Natural Gas and LPG
• Total gas input rating: Natural Gas 226 MJ / LPG 228 MJ
• Cooktop burner output: 198 MJ/h across six burners
• Overall dimensions: 914 mm W x 800 mm D x 1120 mm H
• Constructed from stainless steel; Australian made
• Available oven variants: PF628FF-X gas fan forced, PF628EFF-X electric fan forced, PFC628-X gas convection, PFC628E-X electric convection, PF628E-X electric static

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 220
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 198
• Shipping Weight: 220
• Packed Width (mm): 980.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.058400000m3
• Power / Gas Input: 226/228 MJ
• Power Rating: 198 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 226
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 6
