Overview

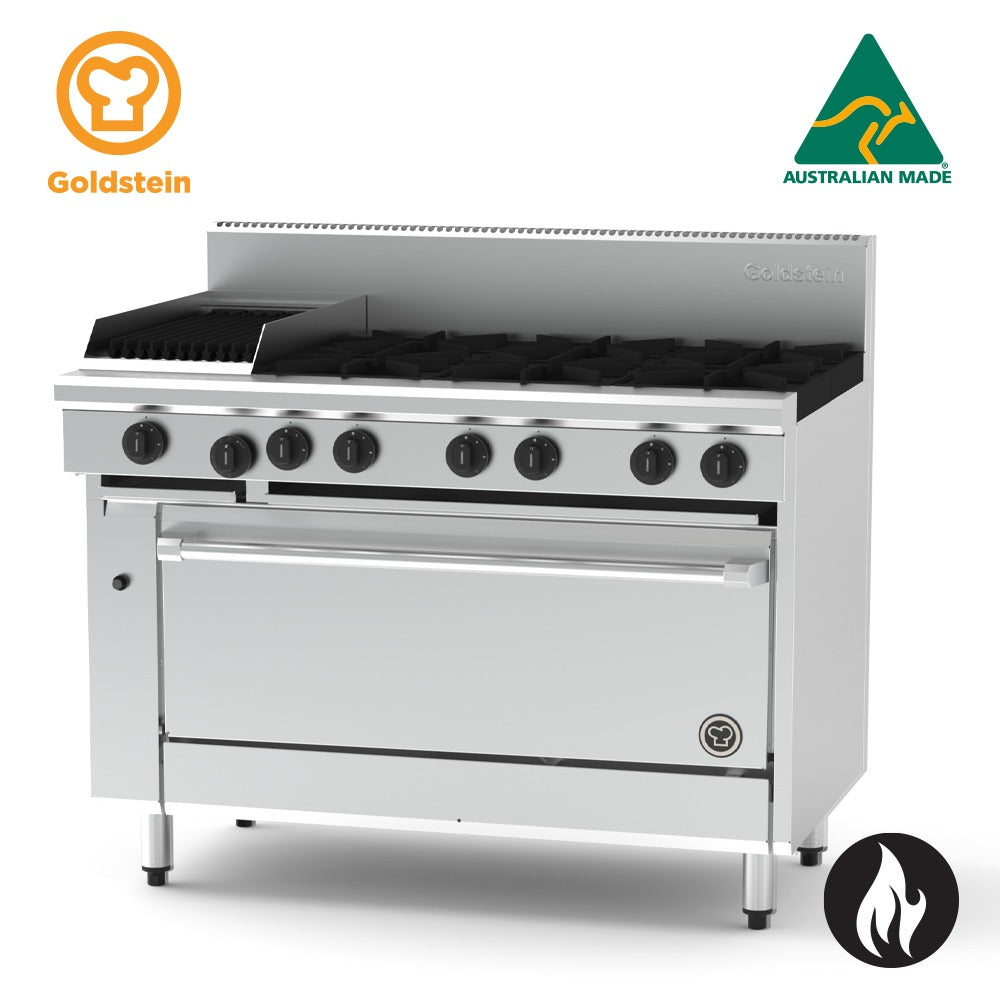

Goldstein PF12Q640FF-X 800 X-Series 1005mm (40in) Fan Forced Gas Oven Range

The Goldstein PF12Q640FF-X is a heavy-duty commercial oven range from the 800 X-Series, purpose-built in Australia for high-volume professional kitchens. Configured with six high-performance cooktop burners, a 305mm cast iron chargrill section, and a 1005mm (40-inch) fan forced gas oven, this 1219mm-wide unit delivers exceptional versatility across a wide range of cooking tasks from grilling to baking and roasting.

Built around a fully welded stainless steel body, the PF12Q640FF-X is engineered for structural rigidity and long-term durability under continuous commercial use. The modular X-Series platform supports various cooktop configurations, while the fan forced oven offers gastronorm-compatible capacity with precise thermostatic control, making this range a reliable centrepiece for any busy commercial kitchen.

Key Benefits

• Six 33 MJ cooktop burners with even heat distribution support peak productivity across multiple cooking tasks simultaneously
• Fan forced gas oven ensures consistent, even temperatures throughout the cavity for reliable baking, roasting and reheating results
• 305mm cast iron reversible chargrill grates with inline radiant burners add flexible char-cooking capability directly on the line
• Pilot flame failure safety system on open burners and oven burner protects against accidental gas release during busy service
• Gastronorm 1/1 compatible oven cavity with three-position racking maximises usable space and accommodates standard commercial cookware
• Stainless steel fascia, sides, spill zones and removable drip trays simplify end-of-service cleaning and reduce downtime
• Fully welded surrounds on the chargrill section and adjustable legs (140–170mm) make installation and levelling straightforward on uneven floors
• Modular cooktop design allows various combinations of burners, griddle plates and chargrill sections to suit changing menu requirements
• Made in Australia, backed by Goldstein's reputation for commercial-grade construction and serviceability

Key Features

• Six removable 33 MJ high-performance cooktop burners with 40% of flame ports concentrated in the centre cross for even heat spread
• Cast iron star trivets for stable, secure pot and pan support
• 305mm BBQ/chargrill section with heavy-duty cast iron reversible grates, offering flat or gradient levelling options
• 2 x 20 MJ inline radiant burners per 305mm chargrill section for consistent, high-heat grilling performance
• Ceramic rocks option available on chargrill to increase heat retention and enhance flavour
• Chargrill and griddle section positioned on the left-hand side of the cooktop
• 1005mm (40-inch) fan forced gas oven with thermostatic control from 100°C to 280°C
• Piezo ignition on oven burner for easy, reliable lighting
• Oven cavity and door fully insulated with vitreous enamel lining for even heat distribution and simplified cleaning
• GN 1/1 compatible oven interior with three-position racking and heavy-duty chrome wire rack supports designed for easy removal
• Constant pilot flame design maximises operating and energy efficiency
• Pilot flame failure protection on open burners and oven burner
• Heavy-duty fully welded stainless steel body for structural rigidity and long-term durability
• Fully welded surrounds on griddle and chargrill sections
• Flexible modular cooktop design compatible with 305mm, 610mm and 914mm griddle and chargrill configurations
• Large heat-resistant reinforced control knobs with clear high-to-low flame settings and easy-to-read markings
• Ergonomic door handle and angled corners for a clean, professional aesthetic
• Stainless steel fascia and sides with spill zones and removable drip trays for ease of cleaning
• Adjustable legs from 140mm to 170mm to accommodate uneven floor surfaces
• Gas input rated at 273/272 MJ; minimal electric draw of 0.043 kW
• Designed for easy servicing and maintenance
• Made in Australia

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 378
• Power / Gas Input: 273/272 MJ; 0.043 kW
• Country of Origin: Australia (Made)
