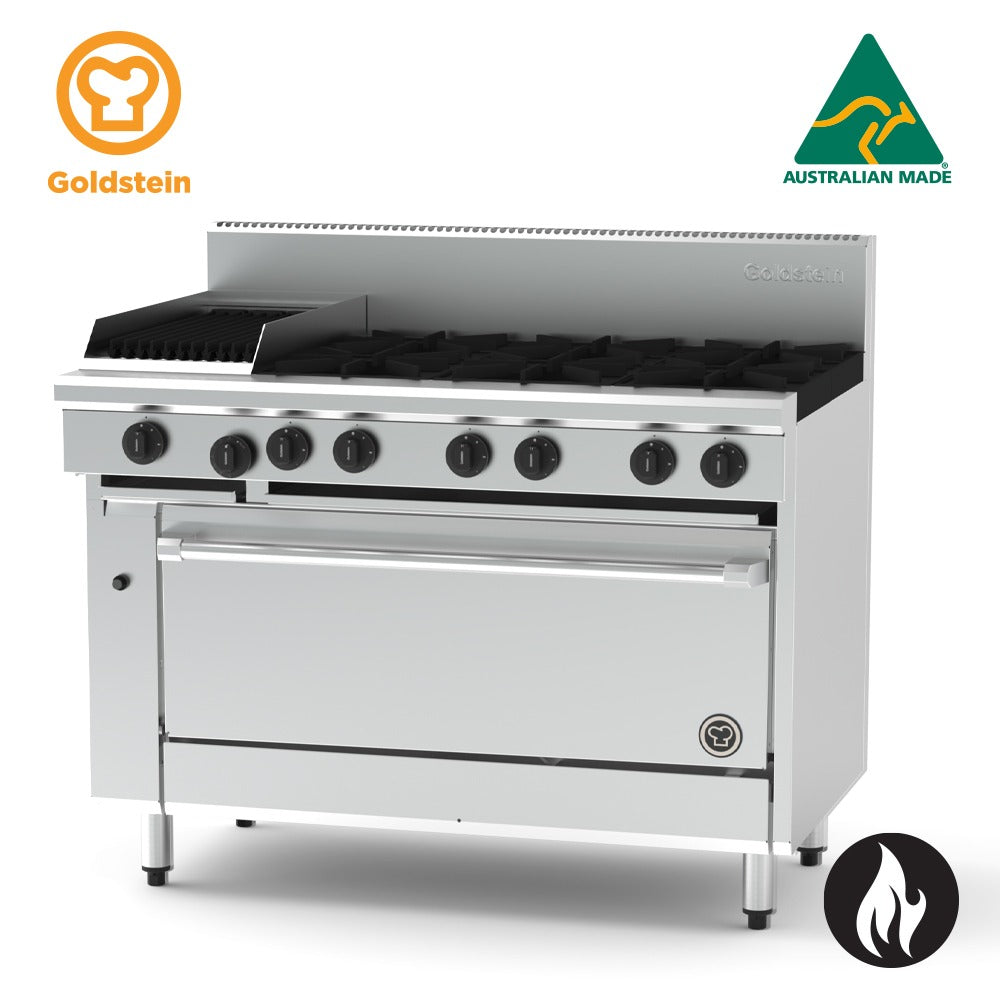

Goldstein PF12Q640-X 800 X-Series 1005mm Gas 6 Burner & 305mm Chargrill with Gas Static Oven

The Goldstein PF12Q640-X is an Australian-made commercial gas range from the 800 X-Series, spanning 1005mm (40 inches) wide and combining six high-output open burners with a 305mm chargrill section and a gas static oven in a single heavy-duty unit. Designed for the rigorous demands of professional kitchens, it delivers consistent, controllable heat across every cooking zone, with a flexible modular cooktop layout that can be configured with burners, griddle plates, and chargrill sections in 305mm or 610mm arrangements.

The range features a fully insulated, vitreous enamel-lined oven and door for even heat distribution and straightforward cleaning, while the stainless steel body, welded construction, and removable spill trays keep the unit robust and hygienic through heavy daily use. Safety is addressed through constant pilot flames, pilot flame failure protection on open burners, and flame failure protection on the oven burner, making this range a dependable workhorse for high-volume cooking operations.

Key Benefits

• Six 33MJ removable cooktop burners deliver high, even heat output for peak-hour productivity across multiple cooking tasks simultaneously.
• The 305mm chargrill section with cast iron reversible grates and inline radiant burners adds versatile high-heat cooking capability without requiring a separate appliance.
• Thermostatic oven control from 100°C to 280°C with Piezo ignition gives chefs precise, repeatable results for baking and roasting.
• GN 1/1 compatible oven cavity with three-position racking accommodates standard gastronorm trays, streamlining prep and batch cooking workflows.
• Constant pilot flame technology maximises energy efficiency and reduces re-ignition time during busy service periods.
• Pilot flame failure protection on open burners and flame failure protection on the oven burner enhance kitchen safety and comply with commercial safety expectations.
• Fully insulated oven and door lined with vitreous enamel retain heat effectively, lowering operating temperatures and energy consumption compared to uninsulated alternatives.
• Modular cooktop design allows configurations with burners, griddle plates, and 305mm or 610mm chargrill sections, making the unit adaptable to changing menu requirements.
• Heavy-duty welded stainless steel body, ergonomic door handle, angled corners, and removable drip trays make the unit durable, easy to clean, and straightforward to service.

Key Features

• Australian-made unit, part of the Goldstein 800 X-Series commercial range lineup.
• Six open cooktop burners, each rated at 33MJ, with 40% of flame ports positioned in the centre cross for even heat distribution.
• Removable cast iron star trivets for easy cleaning and repositioning.
• 305mm chargrill (BBQ) section positioned on the left-hand side of the cooktop.
• Chargrill features heavy-duty cast iron reversible grates with two levelling options: flat or gradient.
• Two 20MJ inline radiant burners per every 305mm chargrill section.
• Optional ceramic rocks available for the chargrill to increase heat retention and enhance flavour.
• 1005mm (40in) gas static oven with thermostatic control ranging from 100°C to 280°C.
• Piezo ignition on the oven burner.
• Oven interior dimensions: W1005 x D560 x H355mm.
• GN 1/1 compatible oven capacity with three-position racking system.
• Heavy-duty chrome wire rack supports inside the oven.
• Oven and door fully insulated and finished with vitreous enamel for even heat distribution and easy cleaning.
• Multiple oven options available: gas fan-forced, electric fan-forced, and static electric, all in gastronorm-compatible sizes.
• Convection and fan oven variants equipped with powerful motors and efficient circulation fans for faster cooking and lower operating temperatures.
• Gas and electric static oven variants offer cast iron sole plates for superior heat distribution.
• Constant pilot flame on cooktop burners for maximised operating efficiency.
• Pilot flame failure safety protection on all open burners.
• Flame failure protection on the oven burner.
• Flexible modular cooktop design allowing combinations of burners, griddle plates, and 305mm or 610mm chargrill sections.
• Heavy-duty welded stainless steel body construction for rigidity and long-term durability.
• Fully welded surrounds for griddle and chargrill sections.
• Stainless steel fascia and sides throughout.
• Removable spill zone and drip trays for straightforward cleaning.
• Large, heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment.
• Ergonomic door handle and angled corners for a contemporary, practical design.
• Adjustable legs with a height range of 140mm to 170mm.
• Designed for ease of servicing.
• Total power input: 272MJ (gas).
• Overall dimensions: W1220 x D800 x H1120mm.
• Weight: 355kg.

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 355
• Power / Gas Input: 273/272 MJ
• Power (kW): 272
• Country of Origin: Australia (Made)
• Fuel Type: Gas
• Number of Burners: 8
