Overview

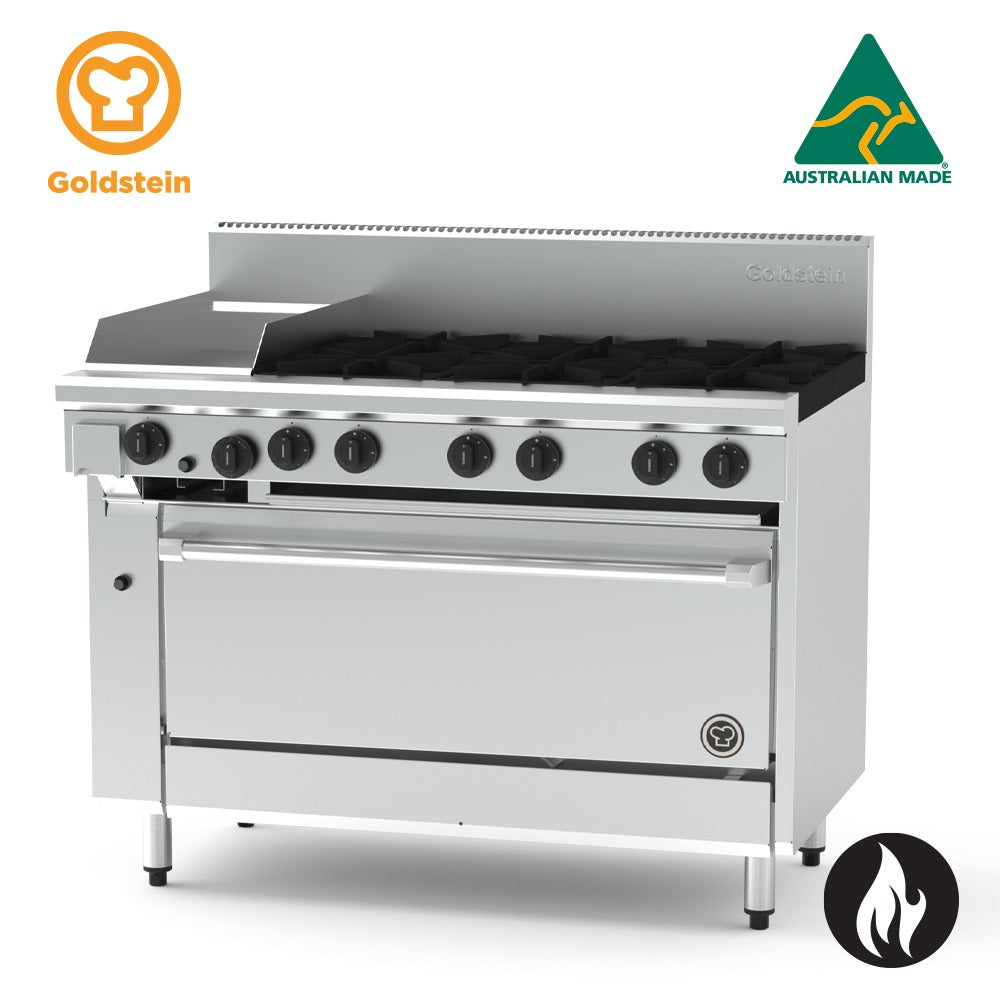

Goldstein PF12G640EFF-X 800 X-Series 1005mm (40") 6-Burner Oven Range with Griddle & Fan Forced Electric Oven

The Goldstein PF12G640EFF-X is part of the Australian-made 800 X-Series and delivers a versatile 1005mm (40 inch) cooking platform combining six high-performance gas burners, a 305mm mild steel griddle plate, and a 1005mm fan forced electric oven. Engineered with a heavy duty welded stainless steel body, this range is built to withstand the rigours of high-volume commercial kitchens while offering a modular cooktop design that provides flexibility across a wide range of menu requirements.

The X-Series platform is designed with practical serviceability and hygiene in mind, featuring removable drip trays, a stainless steel fascia, stainless steel sides, a fully insulated vitreous enamel oven cavity, and ergonomic controls for efficient day-to-day operation. Manufactured in Australia by Goldstein, the PF12G640EFF-X carries the quality and reliability that commercial kitchen operators expect from one of the country's most respected cooking equipment brands.

Key Benefits

• Six 33 MJ cooktop burners with 40% of flame ports concentrated at the centre cross deliver even, high-output heat for rapid cooking across multiple dishes simultaneously.
• The 20mm thick mild steel griddle plate provides consistent, even surface heat ideal for searing, griddling and high-volume breakfast or short-order service.
• Fan forced electric oven with thermostatic control from 100°C to 280°C ensures reliable, uniform baking and roasting results throughout the cavity.
• GN 1/1 compatible oven cavity with three-position rack adjustment maximises flexibility for gastronorm trays, reducing the need for additional cookware.
• Constant pilot flame with flame failure protection on open burners and the oven burner maximises energy efficiency and enhances operational safety.
• Fully welded stainless steel body, integrated spill zone, and pull-out drip trays simplify routine cleaning and help maintain hygiene standards during busy service periods.
• Adjustable legs (140–170mm) allow levelling on uneven floors, while the modular cooktop design supports an assortment of burner, griddle plate, and chargrill configurations for kitchen customisation.
• Robust chrome wire rack supports that lift out without tools, paired with a fully insulated vitreous enamel-lined oven cavity and door, promote even heat distribution and straightforward cleaning.

Key Features

• 6 x removable 33 MJ high-performance gas cooktop burners with even heat distribution; 40% of flame ports located in the centre cross of each burner
• Cast iron star trivets on cooktop burners
• 305 x 520 x 20mm thick mild steel griddle plate positioned on the left hand side of the cooktop
• 20 MJ griddle burner per every 305mm griddle section
• Piezo ignition on both griddle and oven
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure protection on open burners and oven burner
• 1005mm (40 inch) fan forced electric oven
• Oven thermostatic control range: 100°C to 280°C
• Oven cavity and door fully insulated with a vitreous enamel lining that promotes uniform heat distribution and simplifies cleaning
• GN 1/1 gastronorm compatible oven capacity with three rack positions and robust chrome wire supports that are simple to remove
• Heavy duty fully welded stainless steel body for rigidity and long-term durability
• Fully welded surrounds compatible with griddle and chargrill options
• Flexible modular cooktop design accommodating a variety of burner, griddle plate, and chargrill section arrangements (305mm or 610mm options)
• Stainless steel fascia and stainless steel sides
• Integrated spill zone with removable drip trays to keep the cooking surface clean
• Large heat-resistant reinforced control knobs with clearly visible markings and full-range flame adjustment from high to low
• Ergonomic door handle with angled corners for a streamlined appearance
• Adjustable legs from 140mm to 170mm
• Total gas/electric input: 218/218 MJ; 8.8 kW
• Dimensions: 1219mm (W) x 850mm (D) x 1120mm (H)
• Weight: 269 kg
• Made in Australia

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 269
• Power / Gas Input: 218/218 MJ; 8.8 kW
• Country of Origin: Australia (Made)
