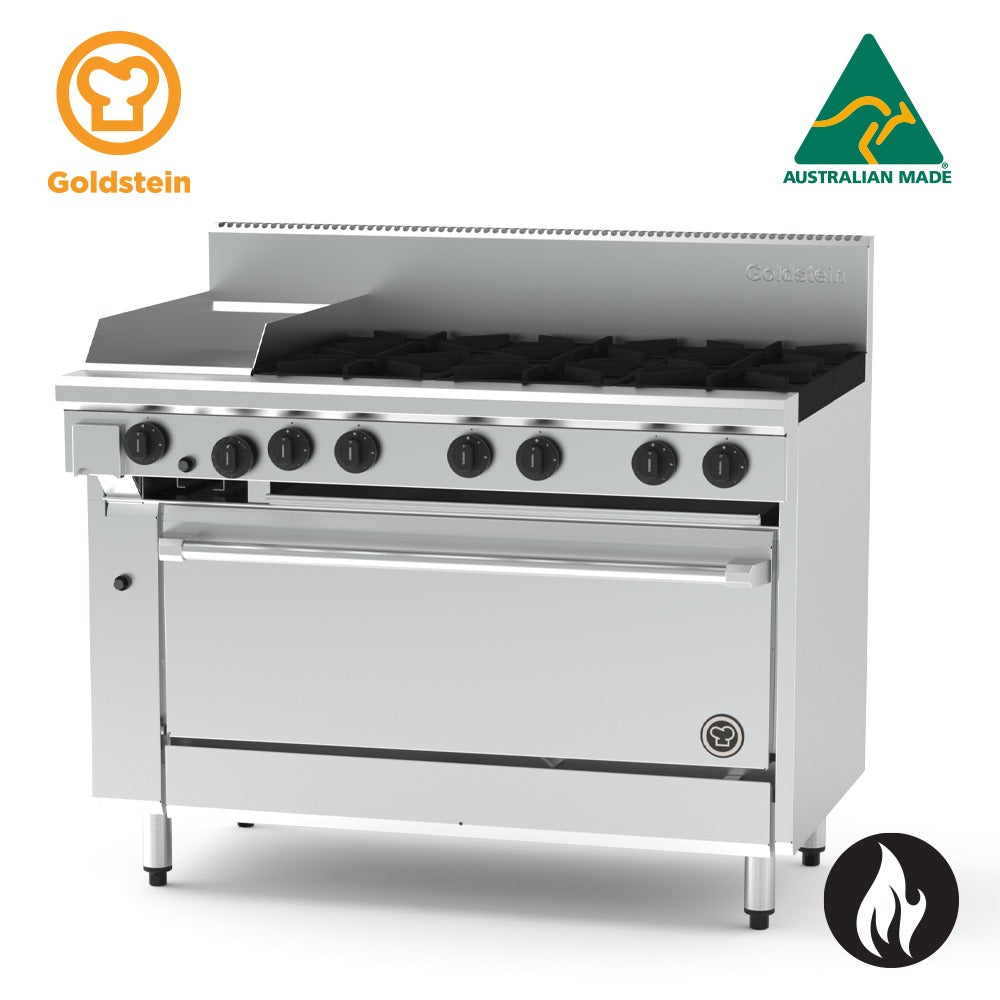

Goldstein PF12G640FF-X 800 X-Series 1005mm (40in) Fan Forced Gas Oven Range

The Goldstein PF12G640FF-X is a 1219mm wide, Australian-made commercial oven range from the 800 X-Series, combining six high-performance gas burners, a 305mm mild steel griddle plate, and a 1005mm (40in) fan forced gas oven in a single heavy-duty unit. Designed for the demands of busy commercial kitchens, the modular cooktop configuration supports various combinations of burners, griddle plates, and chargrill sections, giving operators genuine flexibility as service requirements evolve.

Built around a fully welded stainless steel body with stainless fascia and sides, the range prioritises both structural rigidity and ease of cleaning, with spill zones, drip trays, and vitreous enamel-lined oven surfaces throughout. Safety is addressed via constant pilot flame technology on the cooktop and flame failure protection on both the open burners and the oven burner, while piezo ignition on the griddle and oven sections simplifies daily start-up.

Key Benefits

• Fan forced gas oven delivers consistent, even heat across the cavity for reliable baking and roasting during high-volume service.
• Modular cooktop design allows the cooktop configuration to be tailored with different combinations of burners, griddle, and chargrill sections to match your menu.
• Constant pilot flame on open burners maximises energy efficiency and keeps the cooktop ready for rapid response during peak periods.
• Flame failure protection on both open burners and the oven burner provides an important safety safeguard in a busy kitchen environment.
• GN 1/1 compatible oven cavity with three-position racking maximises usable oven space and integrates with standard gastronorm cookware.
• Vitreous enamel lining on the oven interior and door simplifies cleaning and helps maintain even heat distribution over time.
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven floors, ensuring stable, safe operation.
• Heavy-duty welded stainless steel construction and removable drip trays reduce maintenance time and extend the working life of the range.
• Made in Australia, the X-Series range is backed by Goldstein's reputation for commercial kitchen durability and local serviceability.

Key Features

• Six removable, high-performance 33 MJ cooktop burners with even heat distribution across the cooking surface.
• 40% of the flame ports positioned in the centre cross of each burner for improved heat spread.
• Cast iron star trivets on the cooktop burners.
• 305 x 520 x 20mm thick mild steel griddle plate included as standard.
• 20 MJ griddle burner output per every 305mm griddle section.
• Piezo ignition on both the griddle plate and the oven.
• Constant pilot flame on open burners for energy-efficient, always-ready operation.
• Pilot flame failure safety on open burners; flame failure protection on the oven burner.
• Griddle and BBQ section positioned on the left-hand side of the cooktop.
• Fully welded surrounds for the griddle and chargrill sections for structural rigidity.
• Flexible modular cooktop design compatible with 305mm, 610mm, 914mm, and 1219mm configurations of burners, griddle plates, and chargrill options.
• 40in (1005mm) fan forced gas oven as standard on this model.
• Oven thermostatic control range: 100°C to 280°C.
• Oven cavity and door fully insulated and lined with vitreous enamel for even heat distribution and straightforward cleaning.
• GN 1/1 compatible oven capacity with three-position racking.
• Heavy-duty chrome wire rack supports designed for easy removal.
• Alternative oven configurations available in the same series: electric fan forced (PF12G640EFF-X), electric convection (PFC12G640E-X), and electric static (PF12G640E-X).
• Stainless steel fascia and sides throughout.
• Spill zone and drip trays for straightforward cleaning and maintenance.
• Large, heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment.
• Ergonomic door handle and angled corners for a clean, professional appearance.
• Adjustable legs with a height range of 140–170mm.
• Heavy-duty welded stainless steel body construction for long-term rigidity and durability.
• Designed for easy servicing.
• Australian made.
• Total gas input: 253/254 MJ; electrical input: 0.043 kW.
• Overall dimensions: 1219mm (W) x 850mm (D) x 1120mm (H); weight: 270kg.

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 270
• Power / Gas Input: 253/254 MJ; 0.043 kW
• Country of Origin: Australia (Made)
