Overview

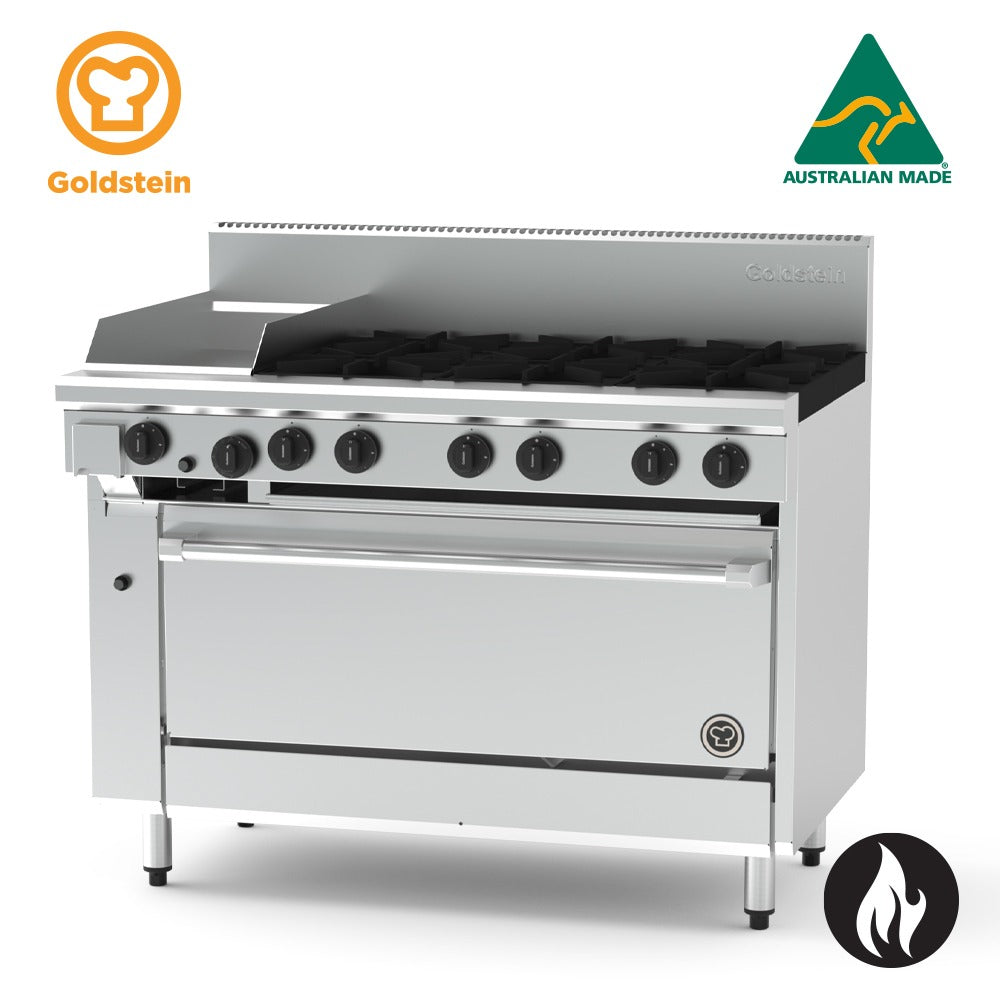

Goldstein PF12G640-X 800 X-Series 1005mm (40in) 6 Burner & 305mm Griddle Gas Static Oven Range

The Goldstein PF12G640-X is a heavy-duty Australian-made commercial oven range from the 800 X-Series, combining six high-performance 33 MJ gas cooktop burners and a 305 x 520 x 20mm mild steel griddle with a 1005mm gas static oven. Constructed with a fully welded stainless steel body and measuring 1219 x 800 x 1120mm, this freestanding unit is engineered for demanding commercial kitchen environments that require consistent, high-volume output across multiple cooking zones simultaneously.

The flexible modular cooktop design supports various configurations including burners, griddle plates and chargrill options, while the gastronorm-compatible static oven offers precise thermostatic control from 100°C to 280°C. A vitreous enamel-lined oven interior, constant pilot flame with flame failure safety, cast iron star trivets, and a full suite of stainless steel drip trays and spill zones make this range as practical to maintain as it is to cook on. Multiple oven variants are available to suit different production requirements.

Key Benefits

• Six removable 33 MJ cooktop burners deliver even, high-output heat across the full cooktop width, supporting rapid production during peak service periods.
• The 20mm thick mild steel griddle plate with a dedicated 20 MJ burner per 305mm section provides consistent surface heat for searing, frying and toasting.
• Vitreous enamel lining on both the oven cavity and door ensures even heat distribution throughout the GN 1/1 oven space and simplifies clean-up between services.
• Constant pilot flame operation maximises energy efficiency, while pilot flame failure protection on open burners and oven burner enhances kitchen safety.
• Fully welded stainless steel construction with welded griddle and chargrill surrounds delivers long-term structural rigidity under continuous commercial use.
• Adjustable legs from 140mm to 170mm allow the unit to be levelled accurately on uneven kitchen floors without compromising stability.
• The gastronorm-compatible oven cavity with three-position racking and heavy-duty chrome wire rack supports accommodates standard GN 1/1 trays for efficient batch cooking.
• Multiple oven configurations are available, including gas fan forced, electric fan forced, electric static and electric convection variants, allowing the platform to be specified to exact production needs.
• Made in Australia with a design focused on ease of servicing, reducing downtime and keeping maintenance costs manageable over the life of the equipment.

Key Features

• Six removable, high-performance 33 MJ open cooktop burners with 40% of flame ports located in the centre cross of each burner for even heat spread.
• Cast iron star trivets for stable, heat-retentive pot support across all burner positions.
• 305 x 520 x 20mm mild steel griddle plate positioned on the left-hand side of the cooktop.
• 20 MJ griddle burner for every 305mm section of griddle surface.
• Piezo ignition on both cooktop burners and griddle section.
• Constant pilot flame on all cooktop burners for immediate response and energy efficiency.
• Pilot flame failure safety on open burners and oven burner.
• 1005mm gas static oven with thermostatic control ranging from 100°C to 280°C.
• Oven cavity and door fully insulated and lined with vitreous enamel for even heat distribution and straightforward cleaning.
• GN 1/1 compatible oven cavity with three-position racking.
• Heavy-duty chrome wire rack supports designed for easy removal.
• Oven internal dimensions: 1005 x 560 x 355mm (W x D x H).
• Piezo ignition on oven burner.
• Heavy-duty fully welded stainless steel body for rigidity and long-term durability.
• Fully welded surrounds for griddle and chargrill sections.
• Flexible modular cooktop design supporting configurations with burners, griddle plates and chargrills in 305mm, 610mm, 914mm and 1219mm combinations.
• Stainless steel fascia and sides with spill zones and drip trays for efficient cleaning.
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame adjustment.
• Ergonomic door handle with angled corners for a contemporary, functional appearance.
• Adjustable legs with a height range of 140mm to 170mm.
• Freestanding installation on natural gas or LPG (3/4 BSP gas connection).
• Total burner output: 218 MJ/h; gas rating: Natural Gas 253 MJ / LPG 254 MJ.
• Overall dimensions: 1219 x 800 x 1120mm (W x D x H); weight: 260 kg.
• Made in Australia.
• Available oven variants: PF12G640FF-X (gas fan forced), PF12G640EFF-X (electric fan forced), PFC12G640E-X (electric convection), PF12G640E-X (electric static).

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 260
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 218
• Shipping Weight: 440
• Packed Width (mm): 1280.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.382400000m3
• Power / Gas Input: 253/254 MJ
• Power Rating: 218 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 254
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 6
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Cast Iron Trivets
