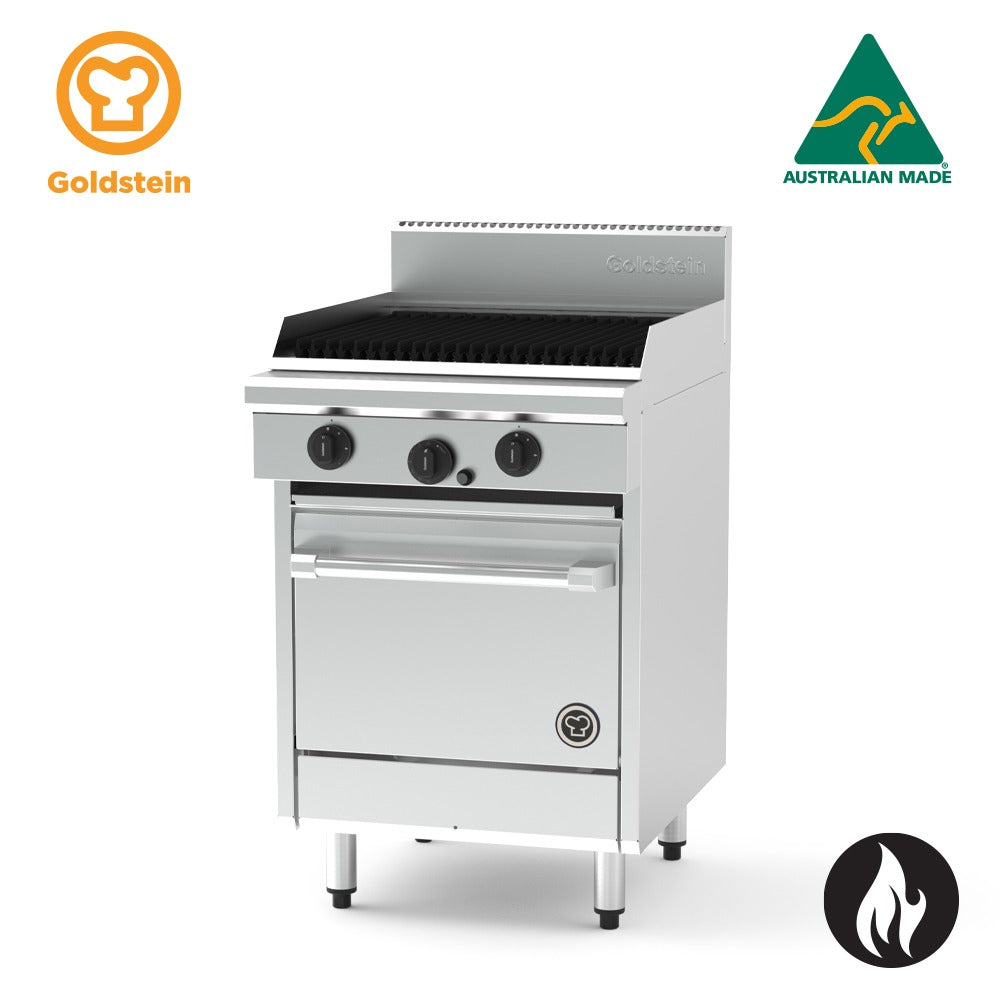

Goldstein PF24Q20FF-X 800 X-Series 500mm (20in) Gas Fan Forced Oven Range with 610mm Chargrill

The Goldstein PF24Q20FF-X is part of the Australian-made 800 X-Series range, combining a 610 x 510mm chargrill section with a 500mm gas fan forced oven in a single, heavy-duty commercial unit. Built from fully welded stainless steel, this 600mm-wide range is engineered for the rigours of high-volume professional kitchens, offering a modular cooktop design that pairs chargrilling capability with consistent, even oven performance.

The fan forced oven delivers thermostatic control from 100°C to 280°C with GN 1/1 compatibility, making it equally suited to baking, roasting and general oven cookery. The chargrill features heavy-duty cast iron reversible grates with inline radiant burners, while the fully insulated, vitreous enamel-lined oven cavity ensures reliable heat retention and straightforward cleaning. Adjustable legs, ergonomic controls and easy-access drip trays make this unit practical for everyday service.

Key Benefits

• Fan forced oven circulation delivers even heat distribution for consistent baking and roasting results across the full cavity
• Thermostatic control from 100°C to 280°C gives chefs precise temperature management for a wide range of menu items
• Reversible cast iron chargrill grates offer two char pattern options, providing greater cooking control and energy efficiency
• GN 1/1 oven compatibility and three-position racking maximises usable capacity and accommodates standard gastronorm cookware
• Fully welded stainless steel body with vitreous enamel oven lining simplifies cleaning and supports long-term durability
• Pilot flame failure safety on both open burners and the oven burner protects against unintended gas flow
• Constant pilot flame design maximises operating and energy efficiency during service
• Adjustable legs (140–170mm) allow levelling on uneven kitchen floors for stable, safe operation
• Modular X-Series platform supports various cooktop configurations, making it straightforward to expand or reconfigure the cooking line

Key Features

• 610 x 510mm chargrill (BBQ) section positioned on the left-hand side
• 500mm (20in) gas fan forced oven with piezo ignition
• Heavy-duty fully welded stainless steel body construction for rigidity and long-term durability
• Fully welded surrounds for the chargrill section
• Flexible modular cooktop design compatible with 305mm and 610mm burner, griddle and chargrill configurations
• Stainless steel fascia and sides throughout
• Heavy-duty cast iron reversible grates on chargrill — two char pattern options available
• Chargrill levelling options: flat or gradient
• 2 x 20 MJ inline radiant burners per 305mm chargrill section
• Ceramic rocks option available for increased heat retention and enhanced flavour
• Oven thermostatic control range: 100°C to 280°C
• Oven cavity and door fully insulated with vitreous enamel lining for even heat and easy cleaning
• GN 1/1 oven capacity with three-position racking
• Heavy-duty chrome wire rack supports designed for easy removal
• Pilot flame failure protection on open burners and oven burner
• Constant pilot flame for improved operating and energy efficiency
• Large heat-resistant reinforced control knobs with clear high-to-low flame settings
• Ergonomic door handle and angled corners for a streamlined appearance
• Spill zone and drip trays included for ease of cleaning
• Adjustable legs from 140mm to 170mm
• Total gas input: 100/96 MJ
• Made in Australia
• Overall dimensions: 610mm wide x 850mm deep x 1120mm high

Specifications

• Width (mm): 610
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 189
• Power / Gas Input: 100/96 MJ
• Country of Origin: Australia (Made)
