Overview

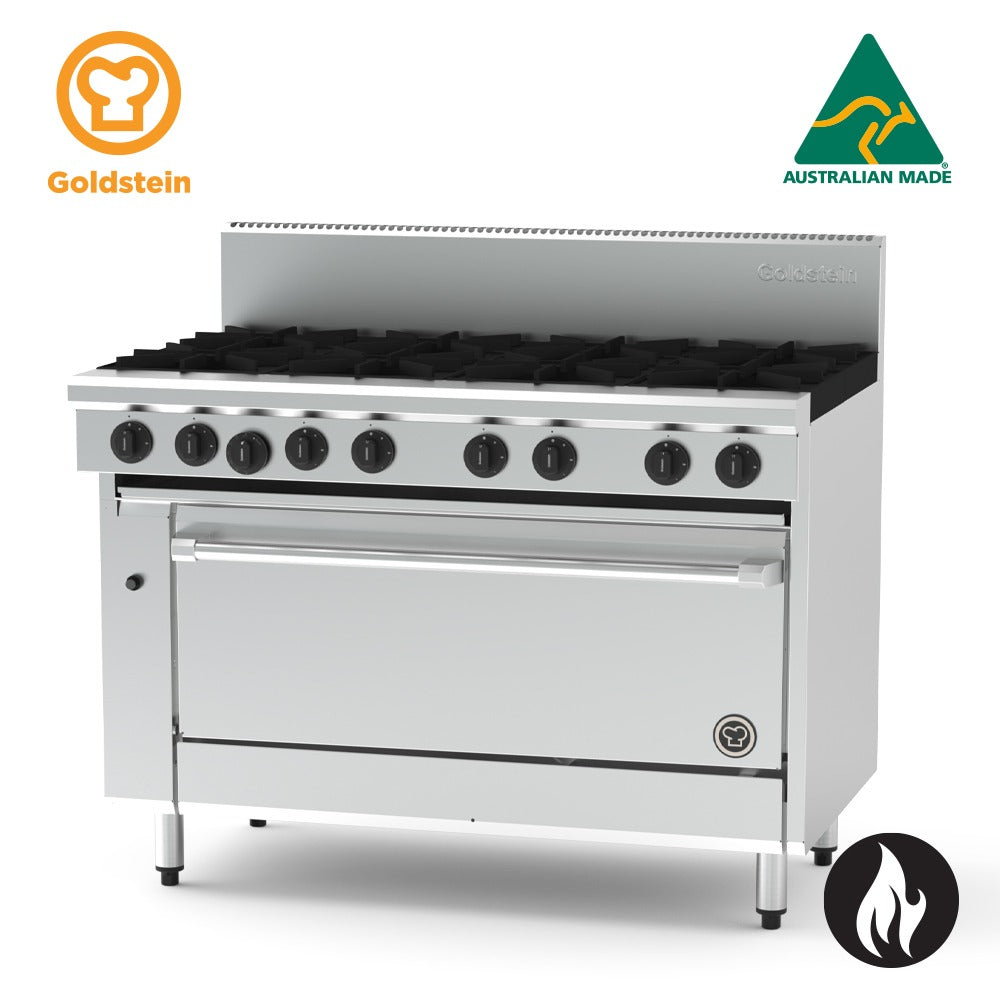

Goldstein PF840-X 800 X-Series 1005mm (40in) 8-Burner Gas Oven Range

The Goldstein PF840-X is an Australian-made, heavy-duty 1005mm (40-inch) commercial gas oven range from the 800 X-Series, built for the rigours of high-volume professional kitchens. It combines eight removable 33 MJ open cooktop burners with a 1005mm static gas oven, delivering a total input of 299 MJ (Natural Gas) or 300 MJ (LPG) and a cooking temperature range of 100°C to 280°C.

The X-Series platform is engineered around a fully welded stainless steel body and a flexible modular cooktop concept, allowing operators to configure the range with various combinations of burners, griddle plates, and chargrill sections. A full suite of oven variants is also available under the same footprint, including gas fan-forced, electric fan-forced, electric convection, and electric static options, all in gastronorm-compatible dimensions, making the PF840-X a highly adaptable centrepiece for any commercial kitchen.

Key Benefits

• Eight high-output 33 MJ burners deliver even, reliable heat across the entire cooktop surface for consistently strong cooking performance during peak service periods.
• A constant pilot flame combined with pilot flame failure protection on open burners and the oven burner maximises both energy efficiency and operational safety.
• The gastronorm-compatible GN 1/1 oven cavity with three-position racking accommodates standard kitchen containers, streamlining workflow and reducing the need for additional equipment.
• Fully insulated oven and door finished in vitreous enamel distribute heat evenly throughout the cavity and are straightforward to clean after service.
• The modular cooktop design supports burner, griddle plate, and chargrill configurations across multiple widths, giving operators the flexibility to tailor the range to their menu.
• Stainless steel fascia and sides, dedicated spill zones, and removable drip trays minimise cleaning time and help maintain hygiene standards in a busy kitchen environment.
• Adjustable legs across a 140 to 170 mm range allow the unit to be levelled on uneven floors, while the straightforward design keeps routine servicing practical and accessible.
• Made in Australia from heavy-duty welded stainless steel, the PF840-X is built to withstand the daily demands of commercial kitchen use with long-term durability.

Key Features

• Heavy-duty fully welded stainless steel body construction for structural rigidity and long-term durability
• Eight removable, high-performance 33 MJ open cooktop burners with even heat distribution
• 40% of flame ports positioned in the centre cross of each burner for consistent heat output
• Cast iron star trivets for stable, secure pot and pan support
• Constant pilot flame for maximised operating efficiency and immediate ignition readiness
• Pilot flame failure protection on all open burners and the oven burner for enhanced safety
• Piezo ignition system on the oven burner
• Thermostatic oven control across a 100°C to 280°C temperature range
• 1005mm (40in) static gas oven with GN 1/1 gastronorm-compatible cavity dimensions (W1005 x D560 x H355 mm)
• Three-position racking system inside the oven for flexible shelf placement
• Heavy-duty chrome wire rack supports designed for straightforward removal and cleaning
• Fully insulated oven cavity and door with vitreous enamel finish for even heat distribution and easy cleaning
• Stainless steel fascia and sides throughout
• Integrated spill zones and removable drip trays for simplified cooktop cleaning
• Fully welded surrounds compatible with optional griddle plate and chargrill sections
• Modular cooktop design supporting configurations across 305 mm, 610 mm, and 914 mm griddle and chargrill sections
• Optional griddle and chargrill sections positioned on the left-hand side
• Large, heat-resistant reinforced control knobs with clearly visible high-to-low flame markings
• Ergonomic door handle and angled corner styling for a refined, practical aesthetic
• Adjustable stainless steel legs with a height range of 140 to 170 mm
• Compatible oven variants available: PF840FF-X (gas fan-forced), PF840EFF-X (electric fan-forced), PFC840E-X (electric convection), PF840E-X (electric static)
• Accepts Natural Gas (3/4" BSP connection, 299 MJ input) or LPG (300 MJ input)
• Freestanding installation, manufactured in Australia
• 2-year parts and labour warranty

Specifications

• Width (mm): 1219
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 260
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 264
• Shipping Weight: 440
• Packed Width (mm): 1280.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.382400000m3
• Power / Gas Input: 299/300 MJ
• Power Rating: 264 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 300
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 100°C - 280°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 8
