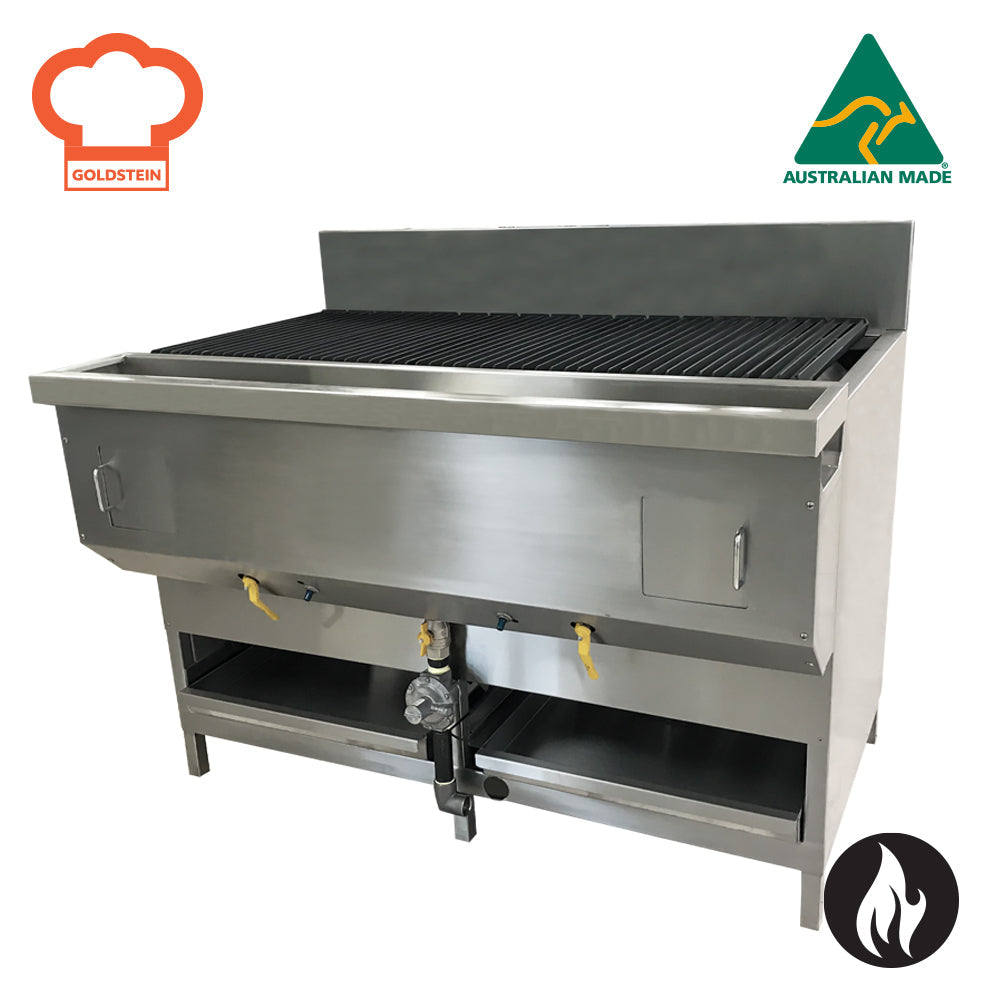

Goldstein RBAHD Ultra Heavy Duty Radiant BBQ Char Broiler

The Goldstein RBAHD Ultra Heavy Duty Radiant BBQ is an Australian-made commercial char broiler engineered for the most demanding kitchen environments, including steakhouses, pubs, bars and high-volume grills. Featuring 8 inline cast iron burners delivering a combined 290 MJ/h output, this unit runs approximately 60% higher in heat output than comparable competitor models, ensuring consistent searing performance across a generous 1235 x 575 mm grill surface.

Built with a stainless steel frame and exterior, the RBAHD is designed for both durability and ease of maintenance, with all components accessible from the front for fast servicing without disrupting kitchen workflow. Piezo ignition with flame failure protection comes standard, and the freestanding footprint with adjustable legs makes installation straightforward in virtually any commercial kitchen layout.

Key Benefits

• 290 MJ/h total output across 8 burners delivers roughly 60% more heat than comparable units, supporting faster cook times and higher throughput during peak service
• High-temperature firebox and hoods store and radiate heat efficiently, maintaining consistent cooking temperatures even under heavy continuous use
• Large 1235 x 575 mm cast iron grill surface provides ample cooking area for steaks, burgers, seafood and mixed proteins simultaneously
• Removable full-size grease tray and easy-lift grills simplify end-of-service cleaning, reducing labour time and supporting hygiene standards
• All components are serviceable from the front, minimising downtime and allowing maintenance without moving the unit or disrupting adjacent equipment
• Flame failure protection as standard shuts off gas supply if the flame extinguishes, improving kitchen safety and meeting commercial compliance requirements
• Adjustable robust gas switches give operators precise control over each burner zone, enabling multi-temperature cooking across the grill surface
• Practical food tray holder positioned at the front keeps plates or resting trays within easy reach, improving service efficiency during busy periods
• Adjustable legs (125-150 mm) allow levelling on uneven floors and provide flexibility when integrating the unit into existing kitchen configurations

Key Features

• 8 inline cast iron burners with a combined output of 290 MJ/h
• Grill cooking surface measuring 1235 mm wide x 575 mm deep
• High-temperature firebox and hoods designed to store and radiate heat for consistent performance
• Piezo (manual spark) ignition with flame failure device as standard on all burners
• Stainless steel frame and exterior for corrosion resistance and easy cleaning
• Removable full-size grease tray for straightforward grease management and hygiene
• Easy-remove cast iron grills to facilitate thorough cleaning between services
• Adjustable robust gas control switches for precise per-burner temperature management
• Practical food tray holder at the front of the unit for convenient plating during service
• All components fully accessible and serviceable from the front of the unit
• Adjustable legs ranging from 125 mm to 150 mm for levelling and installation flexibility
• Compatible with both Natural Gas and LPG (factory configured)
• 1-inch BSP gas connection
• Freestanding installation with no power supply required
• Australian-made construction

Specifications

• Width (mm): 1335
• Depth (mm): 925
• Height (mm): 1105
• Weight (kg): 420
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 1" BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 222
• Power / Gas Input: 290 MJ
• Power Rating: 222 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: N/A (Open flame)
• Installation Type: Freestanding
• Control Type: Manual
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 6
• Griddle Surface: Cast Iron Grates
