Overview

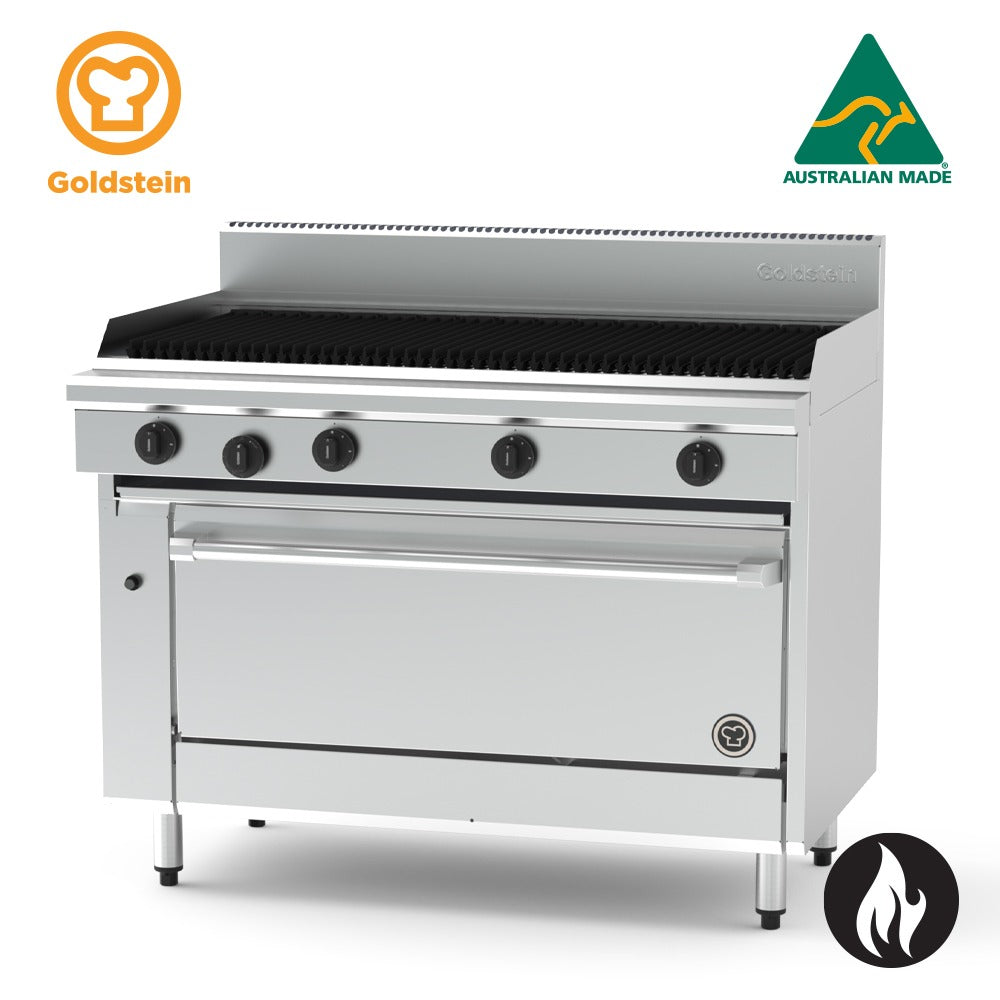

Goldstein PF48Q40FF-X 800 X-Series 1219mm Chargrill & 1005mm Fan Forced Gas Oven Range

The Goldstein PF48Q40FF-X is a commercial-grade oven range from the 800 X-Series, combining a 1219mm (48-inch) chargrill section with a 1005mm (40-inch) fan forced gas oven in a single heavy-duty unit. Manufactured in Australia, it is engineered for the rigorous demands of busy commercial kitchens, offering a modular cooktop design that accommodates various burner, griddle, and chargrill configurations in 305mm, 610mm, and 914mm increments.

The unit features a fully welded stainless steel body with stainless steel fascia and sides, ensuring long-term structural integrity and straightforward cleaning. The fan forced gas oven delivers consistent, even heat across a GN 1/1 compatible cavity with thermostatic control between 100°C and 280°C, while the heavy-duty cast iron chargrill grates provide reliable high-heat searing performance across the full 1219mm cooking surface.

Key Benefits

• Fan forced gas oven delivers even heat distribution throughout the cavity, supporting consistent baking and roasting results across service periods.
• Thermostatic control from 100°C to 280°C gives kitchen staff precise temperature management for a wide range of menu items.
• The modular cooktop design allows flexible configuration of burners, griddle plates, and chargrill sections to suit changing kitchen requirements.
• Constant pilot flame system maximises operating and energy efficiency, reducing gas consumption during quieter periods.
• Pilot flame failure protection on open burners and the oven burner enhances kitchen safety and complies with commercial gas safety expectations.
• GN 1/1 compatible oven cavity with three-position racking maximises usable space and integrates with standard gastronorm equipment.
• Fully welded stainless steel body, spill zones, and removable drip trays make routine cleaning faster and easier, reducing kitchen labour.
• Heavy-duty cast iron reversible chargrill grates offer two levelling options (flat or gradient) and optional ceramic rocks for improved heat retention and flavour.
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven kitchen floors, while the ergonomic door handle and angled corners contribute to a practical, professional finish.

Key Features

• Heavy-duty fully welded stainless steel body construction for rigidity and long-term durability in commercial environments.
• Stainless steel fascia and sides throughout, with fully welded surrounds for griddle and chargrill sections.
• Flexible modular cooktop design supporting various combinations of burners, griddle plates, and chargrill options in 305mm, 610mm, and 914mm modules.
• 1219mm (48-inch) chargrill section positioned on the left-hand side of the unit.
• Heavy-duty cast iron reversible chargrill grates with two levelling positions: flat or gradient.
• 2 x 20 MJ inline radiant burners per every 305mm chargrill section.
• Ceramic rocks option available for the chargrill to increase heat retention and enhance flavour.
• 1005mm (40-inch) fan forced gas oven with 100°C to 280°C thermostatic control.
• Piezo ignition for reliable, tool-free oven start-up.
• Oven cavity and door fully insulated with vitreous enamel lining for even heat distribution and easy cleaning.
• GN 1/1 compatible oven capacity with three-position racking.
• Heavy-duty chrome wire rack supports designed for straightforward removal and cleaning.
• Constant pilot flame for improved operating efficiency and reduced energy use.
• Pilot flame failure safety device on open burners and oven burner.
• Large heat-resistant reinforced control knobs with clearly visible settings and high-to-low flame control.
• Ergonomic door handle and angled corners for a sleek, practical aesthetic.
• Stainless steel spill zone and removable drip trays for simplified maintenance.
• Adjustable legs from 140mm to 170mm for installation on uneven surfaces.
• Designed for ease of servicing in commercial kitchen environments.
• Total gas input: 195 MJ (gas) / 0.043 kW (electric pilot).
• Overall dimensions: 1219mm wide x 850mm deep x 1120mm high.
• Made in Australia.

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 378
• Power / Gas Input: 195/188 MJ; 0.043 kW
• Country of Origin: Australia (Made)
