Overview

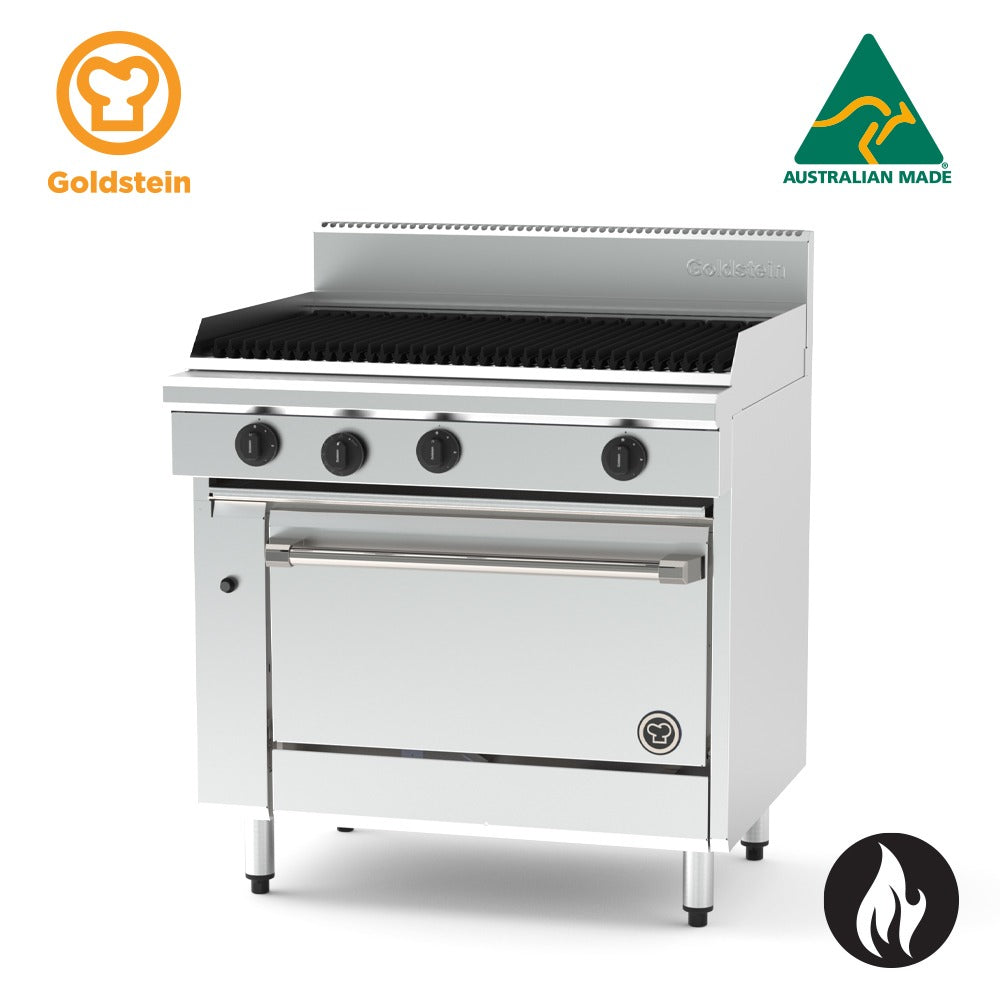

Goldstein PF36Q28E-X 800 X-Series 914mm Chargrill with 700mm Electric Static Oven Range

The Goldstein PF36Q28E-X is an Australian-made unit within the 800 X-Series modular cooking range, pairing a 914 x 510mm chargrill section with a 700mm (28-inch) electric static oven in a heavy-duty commercial configuration. The X-Series platform accommodates 305mm, 610mm and 914mm modules, enabling operators to combine open burners, griddle plates and chargrill sections in multiple arrangements to match their specific menu needs.

Built from fully welded heavy-duty stainless steel throughout, the PF36Q28E-X is engineered for long-term durability and straightforward daily upkeep in high-volume kitchens. The electric oven offers full insulation, vitreous enamel lining, piezo ignition and thermostatic temperature control spanning 100°C to 280°C, with a GN 1/1 compatible cavity suited to consistent baking and roasting outcomes.

Key Benefits

• Modular X-Series design allows the chargrill to be combined with griddle plates or open burners in multiple configurations, giving kitchens flexibility as menus evolve.
• Heavy-duty cast iron reversible chargrill grates with two levelling options (flat or gradient) provide versatile cooking surfaces for a wide range of proteins and vegetables.
• Ceramic rocks option on the chargrill increases heat retention and imparts authentic chargrilled flavour, enhancing food quality.
• Thermostatic oven control from 100°C to 280°C with full insulation ensures precise, even heat for reliable baking and roasting results.
• GN 1/1 oven cavity with three-position racking and heavy-duty chrome wire rack supports maximises gastronorm compatibility and batch cooking capacity.
• Stainless steel fascia, sides, spill zone and dedicated drip trays keep cleaning quick and straightforward, helping maintain hygiene standards during busy service periods.
• Adjustable legs ranging from 140mm to 170mm allow levelling on uneven kitchen floors for safe, stable operation.
• Australian-made construction supports local serviceability and easy access to parts, reducing downtime in commercial operations.

Key Features

• 914 x 510mm chargrill section with heavy-duty cast iron reversible grates
• 700mm (28-inch) electric static oven with piezo ignition
• Part of the 800 X-Series modular platform, compatible with 305mm, 610mm and 914mm cooktop sections
• X-Series range supports multiple oven configurations including electric static, fan forced and convection oven options
• Thermostatic oven temperature control from 100°C to 280°C
• Oven cavity and door fully insulated with vitreous enamel lining
• GN 1/1 oven capacity with three-position racking
• Heavy-duty chrome wire rack supports housed within the oven cavity
• 2 x 20 MJ inline radiant burners per 305mm chargrill section
• Two chargrill levelling options: flat or gradient
• Ceramic rocks option available on chargrill for increased heat retention and flavour
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure safety on open burners and oven burner
• Fully welded heavy-duty stainless steel construction providing a rigid, long-lasting body; griddle and chargrill sections feature fully welded surrounds
• Stainless steel fascia and sides throughout
• Integrated spill zone and removable drip trays to facilitate quick clean-down between services
• Large heat-resistant reinforced control knobs with easy-to-view high-to-low flame settings
• Ergonomic door handle and angled corners for a clean, professional appearance
• Chargrill and griddle section positioned on the left-hand side
• Adjustable legs from 140mm to 170mm for levelling on uneven floors
• Total gas and electric input: 120/114 MJ gas plus 5.4 kW electric
• Overall dimensions: 914mm wide x 800mm deep x 1120mm high
• Made in Australia

Specifications

• Width (mm): 914
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 267
• Power / Gas Input: 120/114 MJ; 5.4 kW
• Country of Origin: Australia (Made)
