Overview

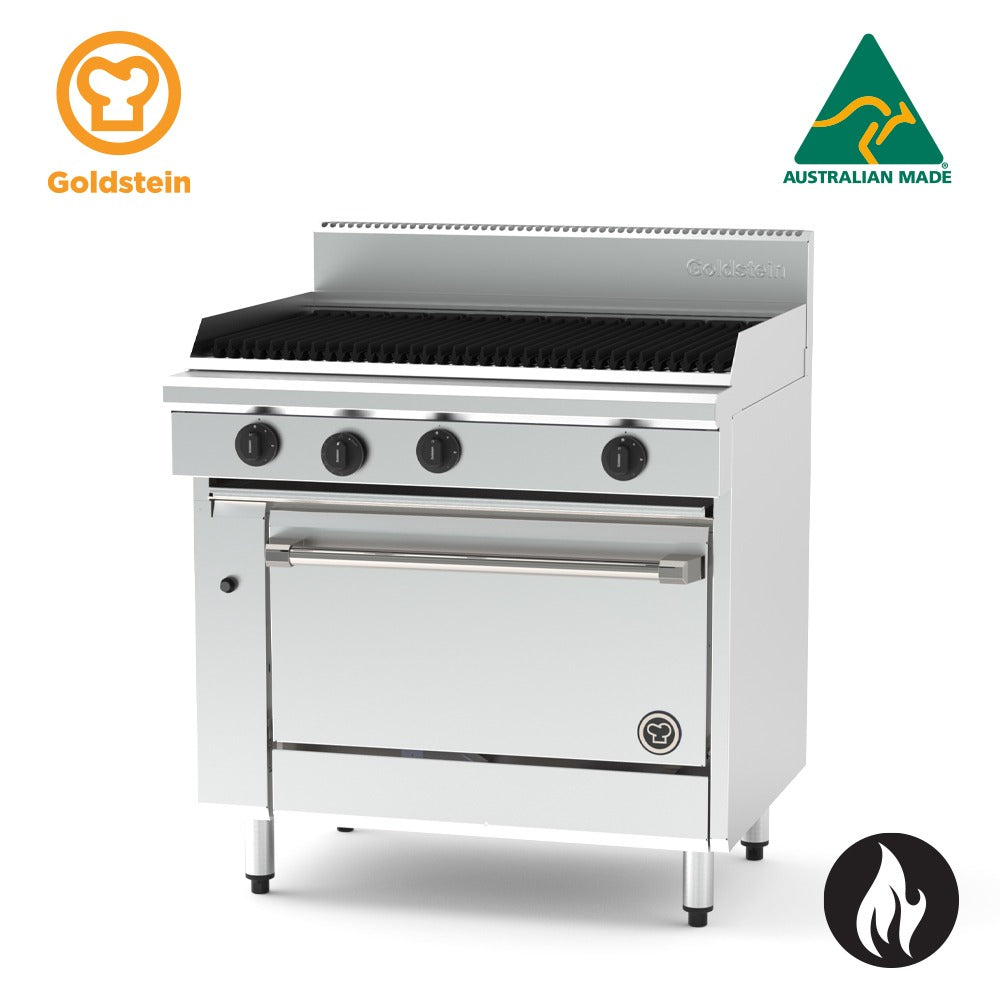

Goldstein PF36Q28EFF-X 800 X-Series 914mm Chargrill with 700mm Electric Fan Forced Oven Range

The Goldstein PF36Q28EFF-X is part of the Australian-made 800 X-Series modular cooking range, combining a 914 x 510mm heavy duty chargrill section with a 700mm (28-inch) fan forced electric oven in a single, robust unit. Built from heavy duty welded stainless steel with fully welded surrounds and a stainless steel fascia and sides, this range delivers the structural rigidity and hygiene standards required for high-volume commercial foodservice environments.

With an overall footprint of 914mm wide by 850mm deep and a height of 1120mm on adjustable legs, the PF36Q28EFF-X is engineered for consistent, efficient performance across every service period. The flexible modular cooktop design supports a wide variety of section pairings, allowing operators to tailor the cooking line to suit evolving menu and kitchen requirements.

Key Benefits

• Fan forced electric oven delivers uniform heat distribution for reliable, consistent baking and roasting results at every rack level
• Reversible cast iron chargrill grates provide two distinct char pattern options, giving chefs greater control and flexibility over plate presentation
• Gastronorm 1/1 compatible oven cavity with a three-tier rack system maximises usable capacity for high-volume commercial output
• Fully insulated oven and door with vitreous enamel lining retains heat efficiently and makes post-service cleaning straightforward
• Modular cooktop design allows the unit to be paired with other 305mm or 610mm sections to accommodate changing kitchen layouts
• Stainless steel fascia, spill zones, and removable drip trays minimise downtime spent on cleaning and routine maintenance
• Adjustable legs with a 140mm to 170mm height range allow the unit to be levelled precisely on uneven kitchen floors
• Piezo ignition and thermostatic oven control from 100°C to 280°C provide straightforward, reliable operation for kitchen staff
• Australian-made construction and an easy-to-service design reduce long-term maintenance costs and support equipment longevity

Key Features

• Heavy duty welded stainless steel body construction for structural rigidity and long-term durability
• Stainless steel fascia and sides throughout
• Fully welded surrounds for the chargrill section
• 914 x 510mm chargrill (BBQ) section positioned on the left hand side
• 700mm (28-inch) fan forced electric oven
• Oven thermostatic control range: 100°C to 280°C
• Piezo ignition for the oven
• Fully insulated oven and door with vitreous enamel lining, providing uniform cooking performance and simplified cleaning
• GN 1/1 (Gastronorm) compatible oven cavity with three rack positions and robust chrome wire shelf supports that lift out without tools
• Heavy duty cast iron reversible chargrill grates offering two char pattern options
• Chargrill levelling available in two options: flat or gradient
• Each 305mm chargrill section is equipped with two 20 MJ radiant burners mounted inline beneath the grates
• Option for ceramic rocks on chargrill to increase heat retention and flavour
• Removable high performance cast iron star trivets on cooktop burners
• Cooktop burners rated at 33 MJ each with even heat distribution; 40% of flame ports located in the centre cross of the burner
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure safety system on open burners and oven burner
• Large heat-resistant reinforced control knobs with clearly visible settings, offering full adjustment from maximum to minimum flame output, paired with an ergonomic door handle and angled corners for a streamlined appearance
• Adjustable legs ranging from 140mm to 170mm for precise levelling
• Flexible modular cooktop design compatible with 305mm and 610mm section configurations across a range of burner, griddle plate, and chargrill combinations
• Within the X-Series range, oven options include gas static, electric static, fan forced, and convection configurations
• Total gas input: 120 MJ; electric input: 5.4 kW (114 MJ equivalent)
• Overall dimensions: 914mm wide x 850mm deep x 1120mm high
• Country of origin: Australia

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 283
• Power / Gas Input: 120/114 MJ; 5.4 kW
• Country of Origin: Australia (Made)
