Overview

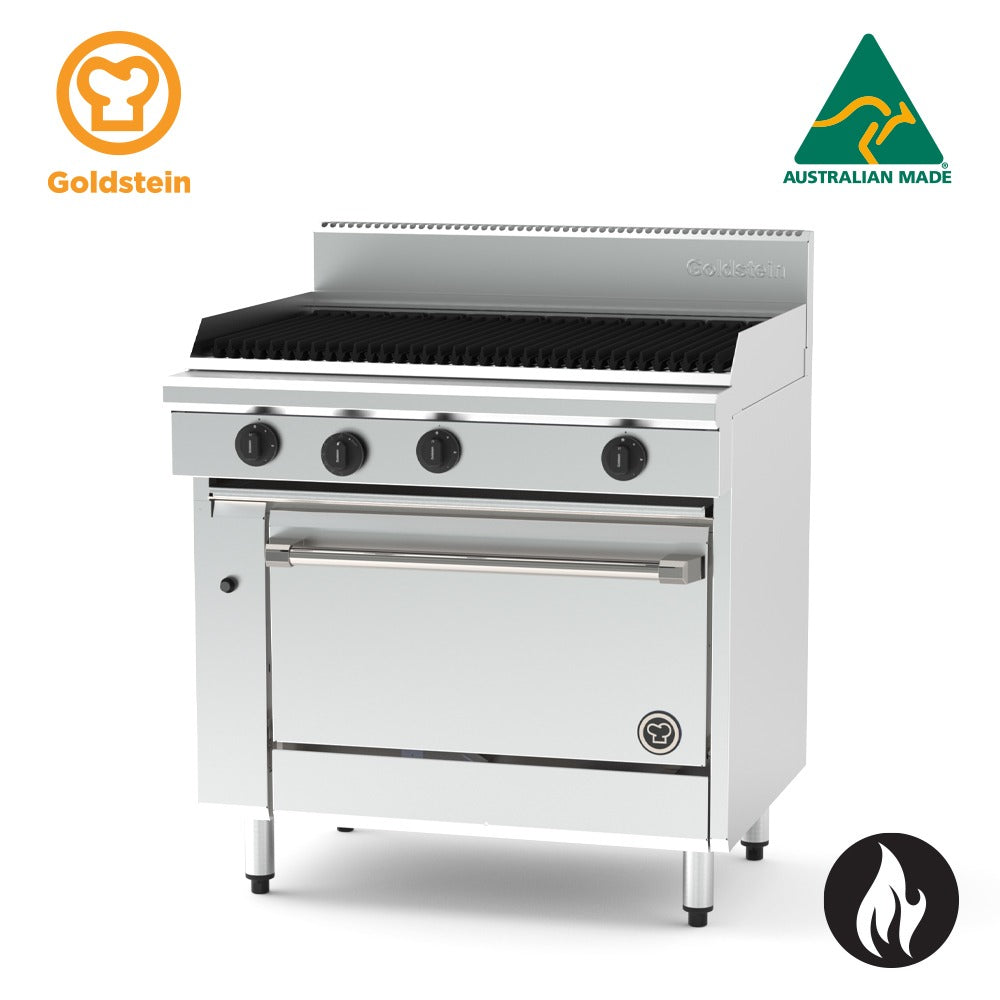

Goldstein PF36Q28FF-X 800 X-Series 914mm Chargrill with 700mm Fan Forced Gas Oven Range

The Goldstein PF36Q28FF-X is an Australian-made unit from the 800 X-Series modular cooking range, pairing a 914mm chargrill section alongside a 700mm fan forced gas oven in a single heavy-duty assembly purpose-built for high-volume commercial kitchens. The fully welded stainless steel body, gastronorm-compatible oven cavity and adaptable modular cooktop design make it a versatile centrepiece for professional kitchen fit-outs.

The chargrill section features heavy duty cast iron reversible grates with inline radiant burners and an optional ceramic rocks configuration, while the fan forced gas oven delivers consistent, even heat across a thermostatic range of 100°C to 280°C. Constant pilot flame technology, piezo ignition, and flame failure safety devices on both open burners and the oven burner ensure reliable, energy-efficient daily operation.

Key Benefits

• Fan forced gas oven achieves uniform heat distribution throughout the cavity, delivering consistent baking and roasting results at full GN 1/1 capacity
• The X-Series modular architecture lets you tailor the cooktop by combining burners, griddle plates and chargrill sections in 305mm, 610mm and 914mm increments to suit any kitchen layout
• Cast iron reversible chargrill grates with two levelling options — flat or gradient — provide flexibility for different cooking styles and products
• Constant pilot flame and flame failure safety devices on open burners and the oven burner maximise energy efficiency and operator safety
• Fully insulated oven and door with vitreous enamel lining promotes even heat retention and simplifies cleaning after service
• Stainless steel fascia, sides, spill zones and drip trays make routine cleaning fast and thorough in a busy kitchen environment
• Adjustable legs (140–170mm) allow the unit to be levelled accurately on uneven floors, ensuring stable operation
• Australian-made construction with a heavy duty fully welded stainless steel body ensures long-term rigidity and durability under continuous commercial use

Key Features

• 914 x 510mm chargrill section positioned on the left-hand side of the unit
• 700mm (28in) fan forced gas oven
• Heavy duty fully welded stainless steel body for structural rigidity
• Fully welded surrounds for chargrill and griddle options
• Flexible modular cooktop design compatible with 305mm, 610mm and 914mm configurations of burners, griddle plates and chargrill sections
• Range includes static gas or electric oven variants, fan forced oven and convection oven models available across the X-Series lineup
• Heavy duty cast iron reversible chargrill grates
• Two levelling positions for chargrill grates: flat or gradient
• 2 x inline radiant burners rated at 20 MJ each, fitted per 305mm of chargrill section
• Optional ceramic rocks available for the chargrill to increase heat retention and enhance flavour
• Oven thermostatic control range: 100°C to 280°C
• Piezo ignition for the oven burner
• Constant pilot flame for maximised operating and energy efficiency
• Pilot flame failure protection on open burners and flame failure device on the oven burner
• Oven and door fully insulated with vitreous enamel lining; GN 1/1 compatible oven cavity with three shelf positions and robust chrome wire racks engineered for straightforward removal and cleaning
• Stainless steel fascia and sides with spill zones and drip trays
• Large heat-resistant reinforced control knobs with easy-to-read high-to-low flame settings
• Ergonomic door handle and angled corners for a streamlined aesthetic
• Adjustable legs: 140–170mm height range
• Total gas input: 148 MJ (0.043 kW electric)
• Made in Australia

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 283
• Power / Gas Input: 148/144 MJ; 0.043 kW
• Country of Origin: Australia (Made)
