Overview

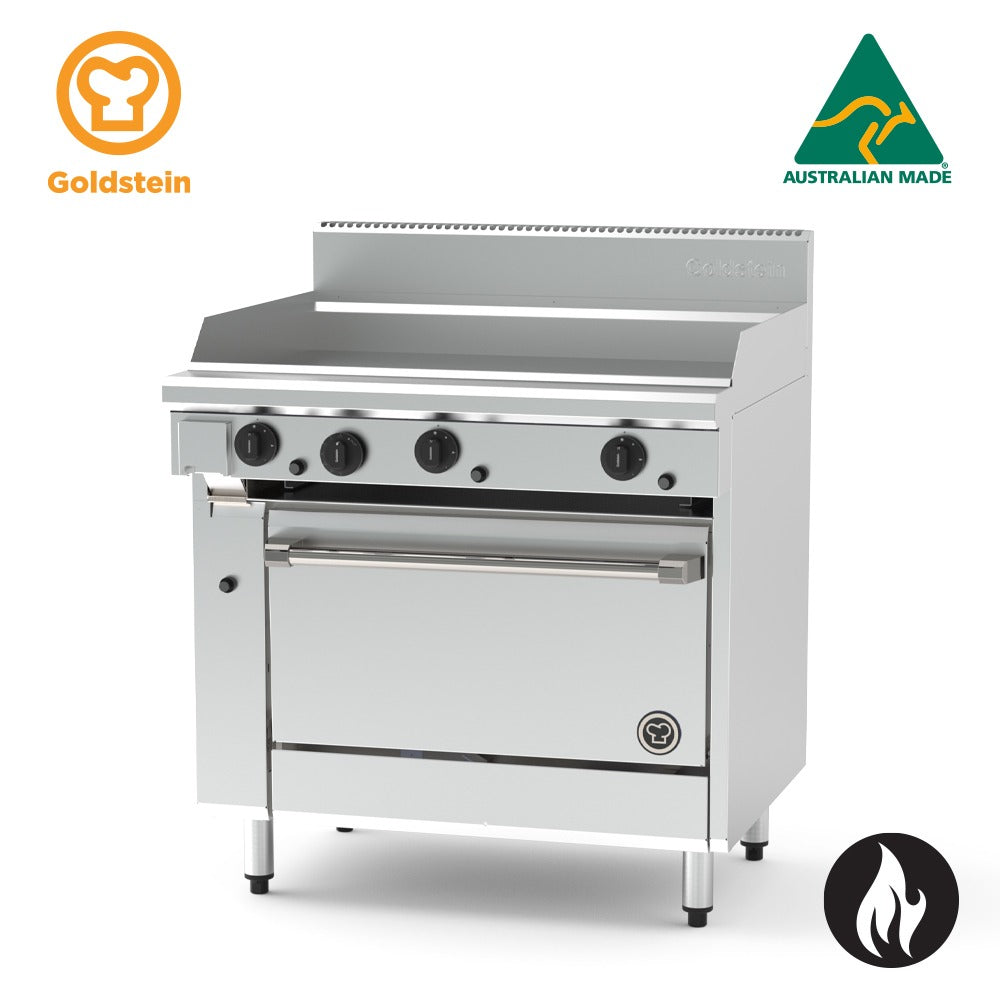

Goldstein PF36G28EFF-X 800 X-Series 914mm Griddle and 700mm Electric Fan Forced Oven Range

The Goldstein PF36G28EFF-X is an Australian-made unit from the 800 X-Series modular range, pairing a full 914 x 520 x 20mm mild steel griddle with a 700mm electric fan forced oven in one heavy-duty assembly. The body is constructed from fully welded stainless steel, with stainless steel fascia, sides, spill zone and drip trays throughout, and the modular cooktop platform supports flexible configuration across 305mm, 610mm and 914mm sections, allowing burners, griddle plates and chargrills to be arranged in whatever combination best suits the kitchen.

The electric fan forced oven circulates heat evenly through a fully insulated, vitreous enamel-lined cavity that accepts GN 1/1 gastronorm trays across three rack positions, with thermostatic control spanning 100°C to 280°C. Practical features including piezo ignition, flame failure safety, a constant pilot flame, large heat-resistant control knobs, and adjustable legs ranging from 140mm to 170mm make this range straightforward to operate, clean and maintain across continuous commercial service.

Key Benefits

• Fan forced electric oven circulates heat uniformly throughout the full cavity, producing consistent baking and roasting results every service
• GN 1/1 compatible oven with three rack positions accommodates a wide range of gastronorm trays for efficient, high-volume output
• Full 914mm griddle plate provides a generous cooking surface for simultaneous, large-scale production
• Modular X-Series design allows the cooktop to be configured with burner, griddle and chargrill sections tailored to specific kitchen requirements
• Vitreous enamel oven interior and door insulation retain heat effectively and make post-service cleaning straightforward
• Stainless steel fascia, sides, spill zone and drip trays allow routine cleaning to be completed quickly between services
• Adjustable legs from 140mm to 170mm enable precise levelling across uneven kitchen floors
• Piezo ignition on the griddle section provides reliable, tool-free lighting for faster start-up at the beginning of each shift
• Australian-made heavy-duty welded stainless steel body delivers long-term rigidity and durability in demanding commercial environments

Key Features

• 914 x 520 x 20mm mild steel griddle plate positioned on the left-hand side
• 20mm thick mild steel griddle plate for superior heat retention and an even cooking surface temperature
• 20 MJ griddle burners for every 305mm section of griddle
• Piezo ignition on griddle burners
• 700mm (28-inch) electric fan forced oven
• Thermostatic oven control from 100°C to 280°C
• Oven cavity and door fully insulated with a vitreous enamel lining, promoting uniform temperatures and simplifying clean-up
• GN 1/1 oven capacity with three-position racking
• Heavy-duty chrome wire oven racks that lift out without tools for quick removal and cleaning
• Flame failure safety on open burners and oven burner
• Constant pilot flame for maximised operating and energy efficiency
• Heavy-duty fully welded stainless steel body for rigidity and long-term durability
• Fully welded surrounds compatible with griddle and chargrill sections, ensuring structural integrity across all configurations
• Stainless steel fascia, sides, spill zone and drip trays for straightforward routine maintenance
• Large heat-resistant reinforced control knobs with clearly visible settings, offering stepless adjustment from maximum to minimum flame
• Ergonomic door handle and angled corners for a streamlined appearance
• Flexible modular cooktop design supporting 305mm, 610mm and 914mm configurations of burners, griddle and chargrill
• Adjustable legs from 140mm to 170mm for levelling on varied floor surfaces
• Available oven options in the X-Series range include gas fan forced, gas convection, electric convection and electric static variants
• Australian-made product

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 259
• Power / Gas Input: 60/60 MJ; 5.4 kW
• Country of Origin: Australia (Made)
