Overview

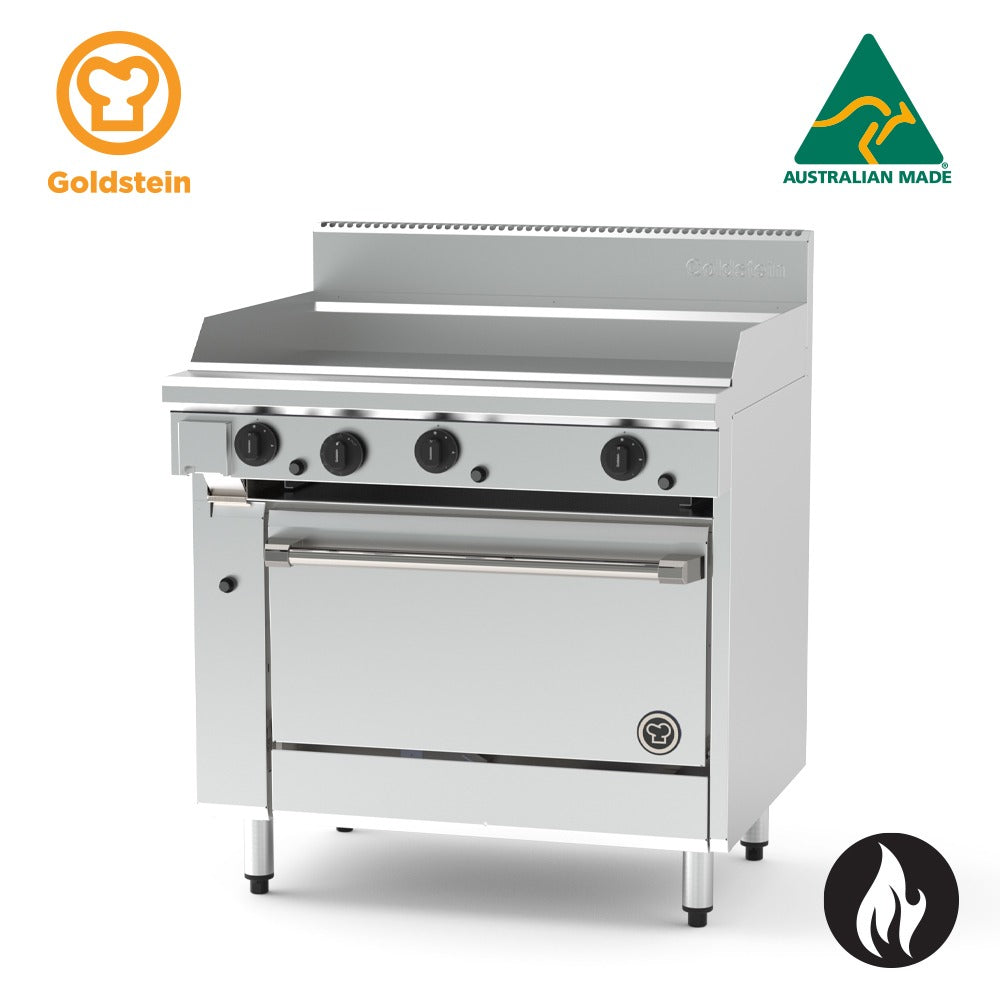

Goldstein PF36G28FF-X 800 X-Series 914mm Griddle with Gas Fan Forced Oven

The Goldstein PF36G28FF-X is an Australian-made commercial oven range from the 800 X-Series, featuring a full 914mm mild steel griddle plate paired with a gas fan forced oven. Built on a heavy duty welded stainless steel frame, this unit is engineered for the rigours of high-volume commercial kitchen operation, with a modular cooktop design that accommodates various griddle, burner and chargrill configurations in 305mm, 610mm and 914mm increments.

The gas fan forced oven delivers consistent, even heat across a gastronorm-compatible cavity with 100°C to 280°C thermostatic control, making it well suited to a wide range of baking and roasting applications. Multiple oven configurations are available within the X-Series range, including gas and electric static, fan forced and convection options, allowing operators to select the right combination for their menu and workflow.

Key Benefits

• Full 914mm griddle surface provides generous cooking area for high-volume service periods
• Gas fan forced oven delivers consistent, even heat throughout the cavity for reliable baking and roasting results
• Modular cooktop design allows flexible configuration with burners, griddle plates and chargrill options across 305mm, 610mm and 914mm sections
• Vitreous enamel oven interior and door insulation retain heat efficiently and simplify cleaning after service
• Constant pilot flame with pilot and oven burner flame failure protection maximises energy efficiency and operator safety
• Stainless steel fascia, sides, spill zone and drip trays make day-to-day cleaning quick and straightforward
• Adjustable legs (140mm to 170mm) allow levelling on uneven kitchen floors
• GN 1/1 compatible oven cavity with three-position racking and removable chrome wire rack supports offers practical flexibility for different tray sizes
• Made in Australia, backed by Goldstein's reputation for durable commercial kitchen equipment

Key Features

• Heavy duty welded stainless steel body construction for long-term rigidity and durability
• Fully welded surrounds for griddle and chargrill sections
• 914 x 520 x 20mm thick mild steel griddle plate for even heat retention and searing performance
• 20 MJ griddle burner output per every 305mm section
• Piezo ignition on both griddle and oven
• Constant pilot flame on cooktop burners for efficient, reliable ignition
• Pilot flame failure protection on open burners; flame failure protection on oven burner
• Gas fan forced oven with 100°C to 280°C thermostatic temperature control
• Oven cavity and door fully insulated with vitreous enamel lining for even heat distribution and easy cleaning
• GN 1/1 gastronorm compatible oven capacity with three-position racking
• Heavy duty chrome wire rack supports designed for easy removal
• Stainless steel fascia and sides with spill zone and drip trays
• Large heat-resistant reinforced control knobs with clearly visible high-to-low flame settings
• Ergonomic door handle and angled corners for a clean, professional appearance
• Griddle and BBQ section positioned on the left-hand side
• Adjustable legs with 140mm to 170mm height range
• Flexible X-Series range with multiple oven options: gas fan forced (PF36G28FF-X), electric fan forced (PF36G28EFF-X), gas convection (PFC36G28-X), electric convection (PFC36G28E-X), and electric static (PF36G28E-X)
• Total gas input: 88/90 MJ; supplementary electric input: 0.043 kW
• Made in Australia

Specifications

• Width (mm): 914
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 255
• Power / Gas Input: 88/90 MJ; 0.043 kW
• Country of Origin: Australia (Made)
