Overview

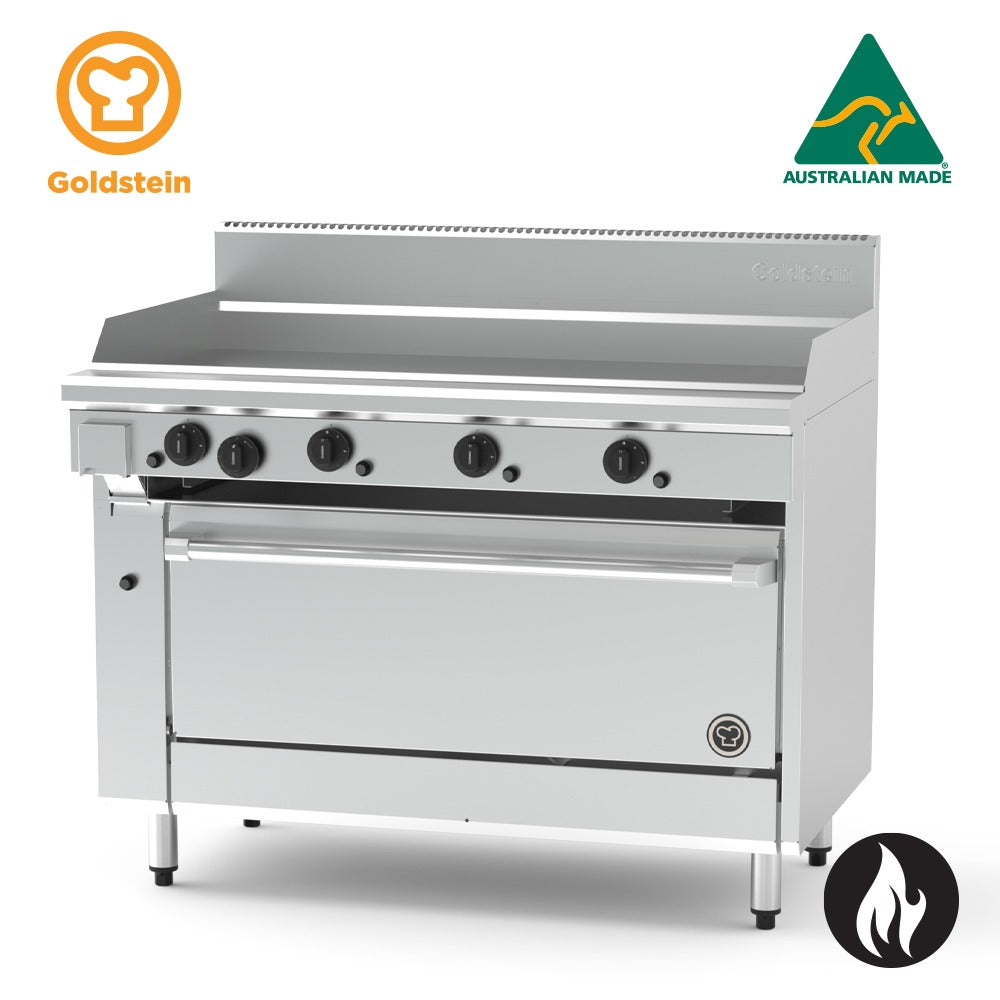

Goldstein PF48G40EFF-X 800 X-Series 1005mm (40in) Electric Fan Forced Oven Range

The Goldstein PF48G40EFF-X is a heavy-duty 1219mm (40in) jumbo gas range from the 800 X-Series, fitted with a fan forced electric oven. Manufactured in Australia to exacting commercial standards, it combines a flexible modular cooktop with a fully insulated, gastronorm-compatible oven cavity, making it well suited to high-volume restaurant, hotel and catering kitchen environments.

The X-Series platform supports a range of cooktop configurations including open burners, griddle plates and chargrill sections in modular widths of 305, 610, 914 and 1219mm, allowing operators to tailor the range to their menu requirements. A fully welded stainless steel body, vitreous enamel oven interior and generously sized spill zones ensure the unit withstands the rigours of daily commercial use while remaining straightforward to clean and service.

Key Benefits

• Fan forced electric oven delivers even, consistent heat throughout the cavity for reliable baking and roasting results across a full service period.
• Gastronorm 1/1 compatible oven with three-position racking accommodates standard GN trays, streamlining workflow and reducing the need for additional cookware.
• Modular cooktop design supports multiple burner, griddle and chargrill combinations, giving operators the flexibility to reconfigure the surface to suit changing menu demands.
• Constant pilot flame on open burners maximises energy efficiency and ensures immediate ignition response during a busy service.
• Pilot flame failure protection on open burners and the oven burner enhances kitchen safety by cutting gas supply if a flame is extinguished unexpectedly.
• Fully welded stainless steel body, sides and fascia provide long-term structural rigidity and resist the knocks and spills of a commercial environment.
• Vitreous enamel oven lining and insulated door promote even heat distribution while making the interior easy to wipe down between services.
• Adjustable legs (140–170mm) allow the unit to be levelled on uneven floors, and heavy-duty chrome wire rack supports are designed for quick removal to simplify cleaning.
• Ergonomic door handle, large heat-resistant reinforced control knobs and angled corners combine practical operability with a professional appearance.

Key Features

• Model: PF48G40EFF-X – 800 X-Series electric fan forced oven configuration within the 40in jumbo gas range platform.
• Overall dimensions: 1219mm (W) x 850mm (D) x 1120mm (H); weight 289kg.
• Gas input: 80 MJ; electric input: 80 MJ / 8.8 kW.
• Made in Australia.
• Heavy-duty fully welded stainless steel body, surrounds, fascia and sides for structural rigidity and durability.
• Flexible modular cooktop available in 305, 610, 914 and 1219mm widths to accommodate open burner, griddle plate and chargrill combinations.
• Griddle plate: 20mm thick mild steel construction with piezo ignition; 20 MJ burner per every 305mm section.
• Griddle and BBQ sections positioned on the left-hand side.
• Constant pilot flame on open burners for energy-efficient, immediate ignition.
• Pilot flame failure safety device fitted to open burners and oven burner.
• Fan forced electric oven with thermostatic control range of 100°C to 280°C.
• Piezo ignition on oven.
• Oven cavity and door fully insulated; interior finished in vitreous enamel for even heat distribution and easy cleaning.
• Gastronorm GN 1/1 compatible oven capacity with three-position racking.
• Heavy-duty chrome wire rack supports designed for easy removal.
• Spill zones and removable drip trays simplify cooktop cleaning.
• Large, heat-resistant reinforced control knobs with clearly visible high-to-low flame settings.
• Ergonomic door handle and angled corners for a streamlined, professional aesthetic.
• Adjustable legs from 140mm to 170mm for levelling on uneven surfaces.
• Designed for ease of servicing in the field.
• Compatible oven options within the same platform include gas fan forced (PF48G40FF-X), electric static (PF48G40E-X) and electric convection (PFC48G40E-X).

Specifications

• Width (mm): 1219
• Depth (mm): 850
• Height (mm): 1120
• Weight (kg): 289
• Power / Gas Input: 80/80 MJ; 8.8 kW
• Country of Origin: Australia (Made)
