Overview

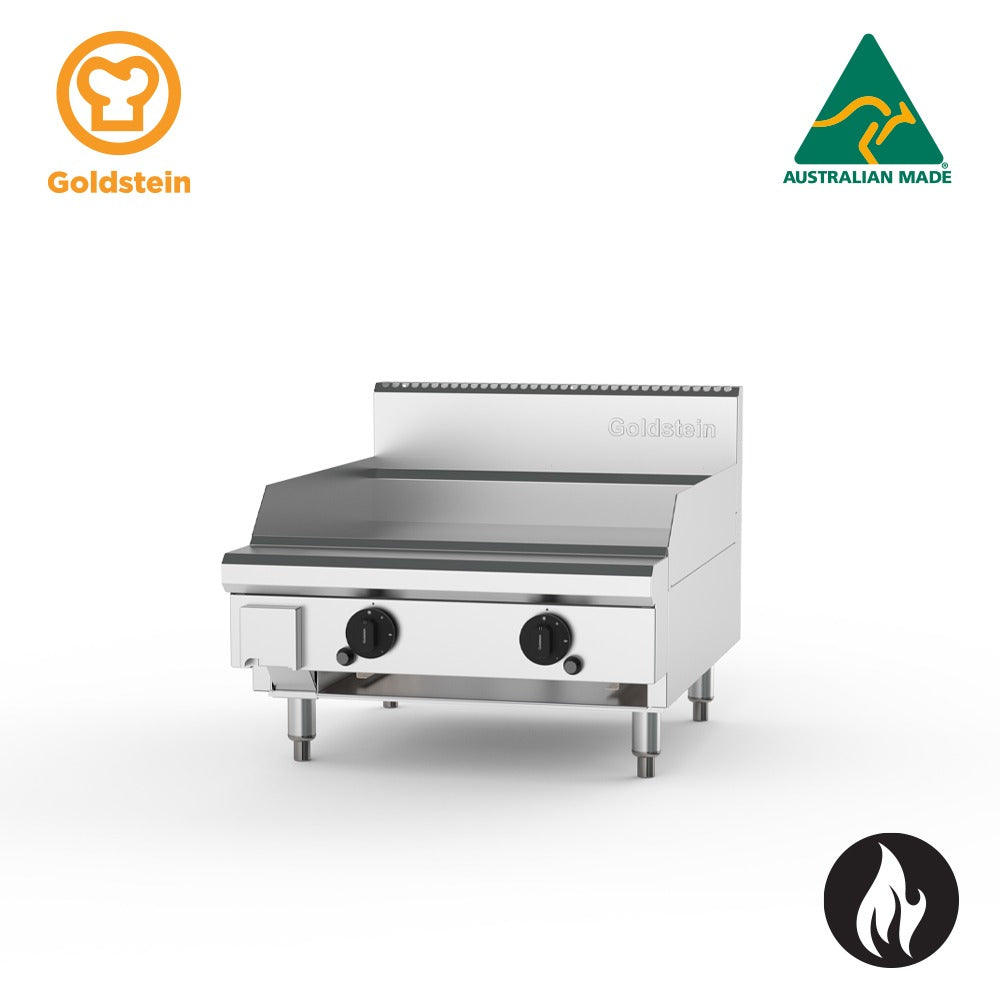

Goldstein GPGDB24-X 800 X-Series Gas Griddle Plate 610mm

The Goldstein GPGDB24-X is a 610mm benchtop gas griddle plate from the Australian-made 800 X-Series, designed for demanding commercial kitchen environments. Built around a 20mm thick smooth mild steel cooking surface measuring 610 x 520mm, it delivers outstanding heat retention and consistent cooking results across the entire plate, making it ideal for high-volume breakfast service, burgers, bacon, eggs and a wide range of grilled foods.

Constructed with a heavy-duty fully welded stainless steel body, the GPGDB24-X combines long-term structural rigidity with straightforward day-to-day cleaning. Two 20MJ burners provide a total output of 40MJ/h, with each burner covering a 305mm section of the plate for precise zone control. A constant pilot flame with pilot flame failure protection, piezo ignition, and a high-to-low flame control knob make the unit both efficient and easy to operate. Optional plate finishes, thermostatic control, and stand configurations allow the griddle to be tailored to specific operational needs.

Key Benefits

• The 20mm thick mild steel plate absorbs and retains heat effectively, reducing temperature recovery time between loads and supporting continuous high-output service.
• Two independently controlled 20MJ burners, one per 305mm zone, allow different cooking temperatures across the plate simultaneously, improving menu flexibility.
• A constant pilot flame maximises energy efficiency while pilot flame failure protection on each burner adds an important layer of operational safety.
• The front grease trough, generous chute and grease catcher keep fats and juices channelled away from the cooking surface, reducing flare-ups and simplifying end-of-service cleaning.
• Stainless steel fascia, sides and drip trays are straightforward to wipe down quickly, supporting rapid turnaround between service periods.
• Adjustable legs (140–170mm range) allow the unit to be levelled on uneven bench surfaces and accommodate varying counter heights.
• Compatible with both natural gas and LPG at 40MJ/h, giving operators flexibility in how the unit is installed and connected.
• Made in Australia, with optional upgrades including chrome or ribbed plate finishes, thermostatic control (120°C–280°C), bench mounting, and stand with undershelf or cupboard stand to suit different kitchen configurations.

Key Features

• 610 x 520 x 20mm smooth mild steel griddle plate for even heat distribution and excellent heat retention
• Heavy-duty fully welded stainless steel body construction for rigidity and long-term durability
• Fully welded surrounds for a robust, seamless structure
• Two 20MJ burners, one per 305mm plate section, providing independent zone temperature control and a combined output of 40MJ/h
• Piezo ignition for reliable, tool-free lighting
• Constant pilot flame on each burner maximises operating and energy efficiency
• Pilot flame failure protection on all burners for added safety
• Front grease trough with generous chute and grease catcher for efficient fat management
• Stainless steel fascia and sides with drip trays for ease of cleaning
• Large, heat-resistant reinforced control knob with clearly visible settings and high-to-low flame adjustment
• Adjustable legs from 140mm to 170mm for levelling on varied bench surfaces
• Accepts natural gas or LPG (3/4" BSP connection)
• Benchtop / countertop installation
• Made in Australia
• Optional plate finishes: machined steel or ribbed plate
• Optional thermostatic control: 120°C–280°C
• Optional stand with undershelf or cupboard stand

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 545
• Weight (kg): 110
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo
• Burner Output (MJ/h): 40
• Shipping Weight: 170
• Packed Width (mm): 720.0
• Packed Height (mm): 870.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 0.563760000m3
• Power / Gas Input: 40/40 MJ
• Power Rating: 40 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 40
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Installation Type: Countertop
• Control Type: Thermostat
• Mounting Type: Benchtop
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 610 x 533
