Overview

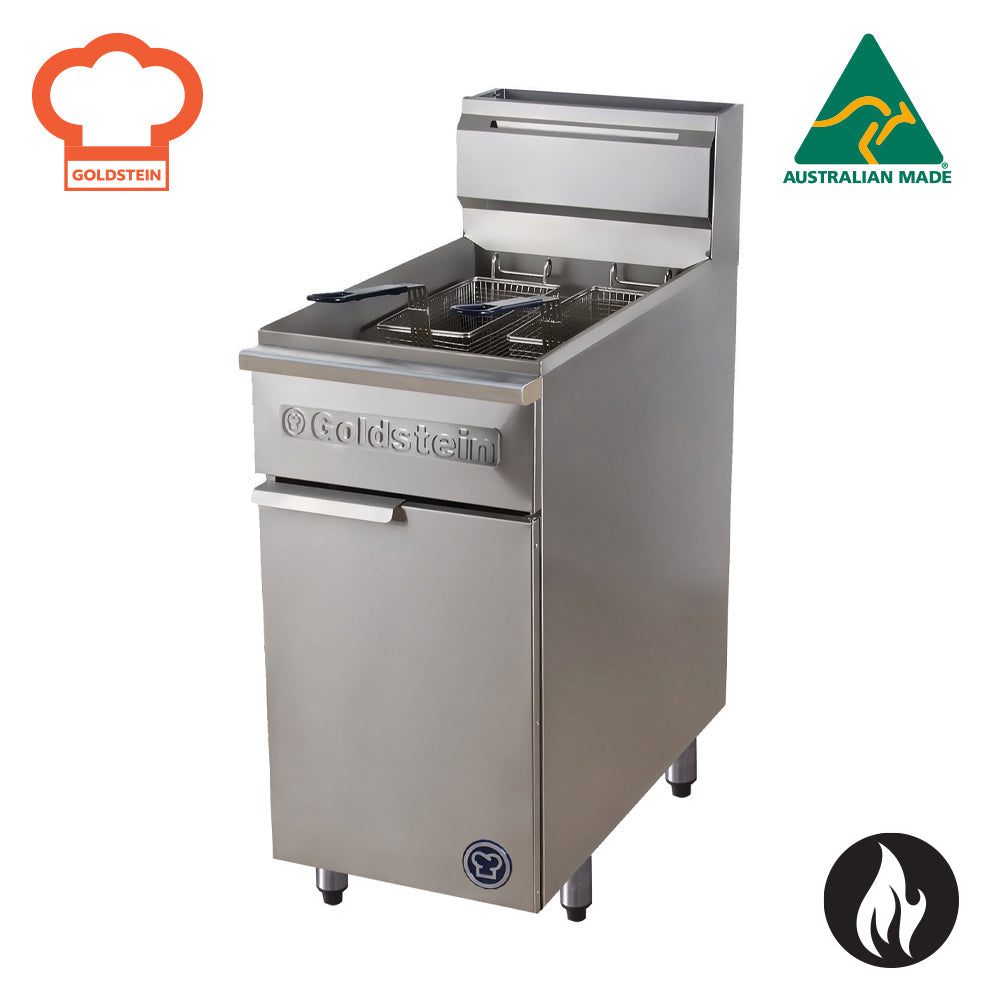

Goldstein TGF1M/400L 800 Series Turbo Gas Fryer – Single Pan, 28L, 394mm Wide

The Goldstein TGF1M/400L is an Australian-made single pan turbo gas tube fryer from the 800 Series, designed to deliver rapid heat recovery and consistent frying performance in high-volume commercial kitchens. At 394mm wide, it fits neatly into tight cooking lines while providing a generous 28-litre oil capacity and a pan size of 353 x 353 x 300mm, accommodating two baskets simultaneously for efficient service.

Built from stainless steel throughout, the TGF1M/400L features a large cool zone beneath the fry area to extend oil life and reduce operating costs. Piezo ignition with flame failure protection provides safe, straightforward start-up, and the thermostat control maintains accurate temperatures across a range of 93°C to 190°C. Cover and joiner strips are available for seamless multiple unit installations, making this fryer well suited to busy kitchens requiring flexible line-up configurations.

Key Benefits

• Turbo gas tube design delivers rapid heat recovery, keeping output high during busy service periods without sacrificing energy efficiency.
• Large cool zone below the fry area slows oil degradation, extending oil life and lowering ongoing consumable costs.
• Twin basket configuration allows two separate batches to be fried simultaneously, improving throughput during peak periods.
• Stainless steel pan and baskets are straightforward to clean, reducing downtime between services and supporting hygiene compliance.
• Piezo ignition with integrated flame failure device ensures safe, reliable lighting and automatic shut-off if the flame is extinguished.
• Thermostat control with a wide 93°C to 190°C range gives operators precise temperature management across a variety of fried menu items.
• Gas rear or base entry options provide installation flexibility to suit different kitchen layouts.
• Cover and joiner strips are available for multi-unit line-ups, allowing a cohesive, professional counter appearance when combining several units.
• Australian-made construction supports quality assurance and straightforward access to local parts and service.

Key Features

• Single pan turbo gas tube fryer configuration
• Pan dimensions: 353mm wide x 353mm deep x 300mm high
• 28-litre oil capacity
• Includes 2 stainless steel baskets
• Large cool zone beneath the fry area for extended oil life
• Stainless steel pan and exterior for durability and easy cleaning
• Thermostat temperature control, range 93°C to 190°C
• Piezo ignition with flame failure device
• Gas input rating: 110 MJ/h (natural gas) / 87 MJ/h (LPG)
• Compatible with natural gas and LPG
• 3/4" BSP gas connection
• Gas entry available from the rear or base
• Freestanding installation
• Line-up nosing for flush multi-unit installations
• Cover and joiner strips available for multiple unit installations
• Stainless steel construction throughout
• Dimensions: 394mm wide x 800mm deep x 1120mm high
• Weight: 65 kg
• Made in Australia
• Part of the Goldstein 800 Series

Specifications

• Width (mm): 394
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 65
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 81
• Packed Width (mm): 700.0
• Packed Height (mm): 1340.0
• Packed Depth (mm): 1040.0
• Shipping Cubic: 0.975520000m3
• Capacity (Litres): 28 L oil
• Power / Gas Input: 110 MJ
• Power Rating: 90 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 110
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 93°C - 190°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
