Overview

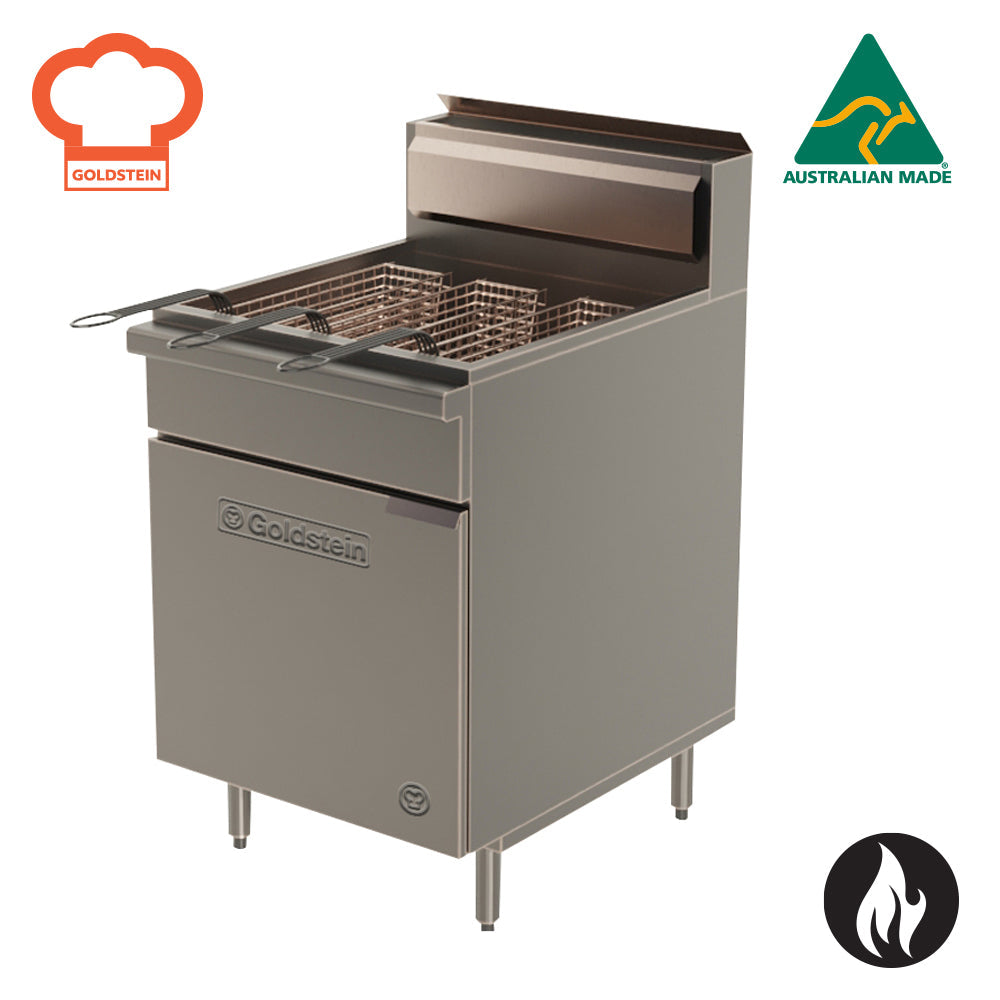

Goldstein TGF24ML 800 Series Turbo Gas Fryer 610mm Wide

The Goldstein TGF24ML is an Australian-made, single-pan turbo gas tube fryer from the 800 Series, engineered for high-volume commercial kitchens that demand rapid heat recovery and consistent frying performance. Its 48-litre oil capacity and generously sized 565 x 355 x 203mm pan accommodate three stainless steel baskets simultaneously, making it well suited to busy service periods where throughput is critical.

Constructed throughout in stainless steel and available for natural gas or LPG operation, the TGF24ML features a large cool zone beneath the frying area to extend oil life and reduce operating costs. Piezo ignition with flame failure protection adds a layer of safety, while line-up nosing and optional cover/joiner strips allow seamless installation alongside other units in a continuous cooking suite.

Key Benefits

• Turbo gas tube design delivers the fastest possible heat recovery, maintaining consistent oil temperature during continuous high-volume frying
• Energy-efficient burner configuration reduces gas consumption relative to output, lowering ongoing running costs
• Large cool zone keeps food debris below the active frying area, significantly extending oil life and reducing oil replacement frequency
• Three baskets per pan allow multiple products to be fried concurrently, improving kitchen throughput and service speed
• Stainless steel pan and exterior simplify cleaning and withstand the rigours of a professional kitchen environment
• Compatible with cover/joiner strips and line-up nosing for neat, gap-free integration into a multi-unit cooking suite
• Piezo ignition with flame failure device provides reliable lighting and automatic gas shut-off for operator safety
• Accepts both natural gas and LPG connections, giving flexibility for different site requirements

Key Features

• Single-pan turbo gas tube fryer configuration for rapid recovery and energy efficiency
• 48-litre oil capacity with pan dimensions of 565mm wide x 355mm deep x 203mm high
• Three stainless steel baskets included per pan
• Large cool zone beneath the fry zone to protect oil quality and prolong oil life
• Stainless steel pan, baskets and exterior construction throughout
• Gas input rating: 147 MJ (natural gas) / 116 MJ (LPG)
• Thermostat control with temperature range of 93°C to 190°C
• Piezo ignition with integrated flame failure device
• 3/4" BSP gas connection, suitable for natural gas or LPG
• Freestanding installation on 610mm wide footprint (W610 x D800 x H1120mm)
• Line-up nosing for flush alignment with adjacent equipment
• Cover/joiner strips available for seamless multiple-unit installations
• Made in Australia

Specifications

• Width (mm): 610
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 90
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 75
• Packed Width (mm): 920.0
• Packed Height (mm): 1450.0
• Packed Depth (mm): 1040.0
• Shipping Cubic: 1.387360000m3
• Capacity (Litres): 48 L oil
• Pan Size: 565 x 355 x 203
• Power / Gas Input: 147 MJ
• Power Rating: 127 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 140
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 93°C - 190°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
