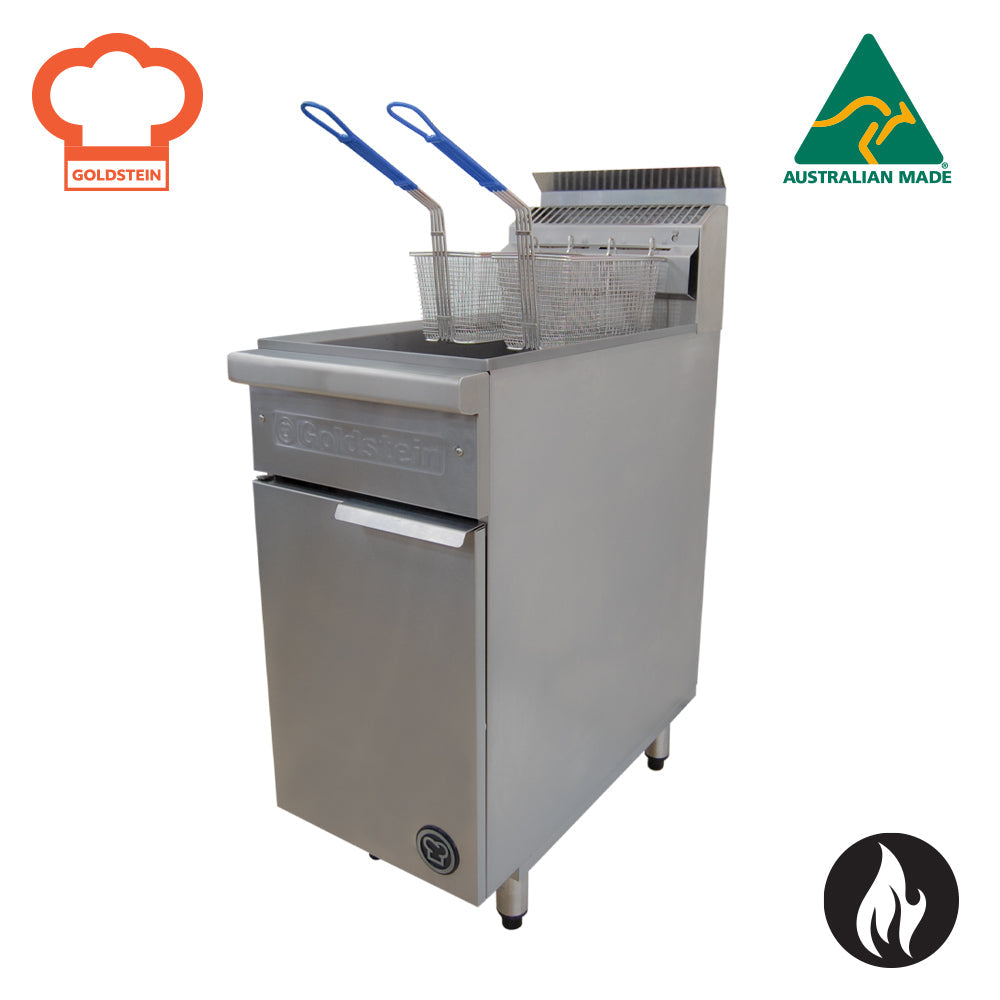

Goldstein VFG1L 800 Series Single V-Pan Gas Fryer 395mm Wide

The Goldstein VFG1L is a proudly Australian-made single V-pan gas fryer designed for high-output commercial kitchens. Its V-shaped pan geometry delivers outstanding energy efficiency, fast heat recovery and straightforward cleaning, while a 20-litre oil capacity keeps running costs low without sacrificing production output rated at 29 kg per hour.

Precise temperature management is handled by a mechanical control system incorporating a Fenwal thermostat accurate to within plus or minus 1 degree Celsius, covering an optimal cooking range of 150 to 190 degrees Celsius. A large cool zone beneath the pan extends oil life considerably, and all components are accessible from the front for fast, hassle-free servicing in a busy kitchen environment.

Key Benefits

• V-pan shape combines rapid heat response with high energy efficiency, reducing gas consumption and lowering operating costs.
• Fenwal thermostat accuracy of plus or minus 1 degree Celsius ensures consistent frying results across every batch.
• Large cool zone keeps sediment away from the heat source, significantly extending usable oil life.
• 20-litre oil capacity delivers substantial oil savings compared to larger-volume alternatives without compromising production capacity.
• All serviceable components are accessible from the front, minimising downtime and simplifying routine maintenance.
• Gas rear or base entry and adjustable legs between 140 and 170 mm allow flexible installation within existing kitchen line-ups.
• Line-up nosing provides a neat, uniform appearance when installed alongside other 800 Series equipment.
• Production rate of 29 kg per hour supports continuous high-volume service in restaurants, cafes and catering operations.

Key Features

• Single V-pan configuration; pan size 353 mm wide x 353 mm deep x 300 mm high
• 20-litre oil capacity per pan
• Two nickel-plated wire mesh fry baskets included
• Night lid included as standard
• Stainless steel pan front and sides for durability and easy cleaning
• Large cool zone beneath the pan for extended oil life
• Mechanical control system with Fenwal thermostat; accuracy of plus or minus 1 degree Celsius
• Optimal cooking temperature range 150 to 190 degrees Celsius; full thermostat range 93 to 190 degrees Celsius
• Piezo/manual spark ignition with continuous pilot and flame failure safety device
• Gas input rating 97 MJ (natural gas) / 95 MJ (LPG); cooking output 90 to 100 MJ/h
• Compatible with both natural gas and LPG; 3/4 inch BSP gas connection
• Gas entry available from the rear or base
• All components serviceable from the front of the unit
• Adjustable legs from 140 to 170 mm height
• Line-up nosing for cohesive suite installation
• Freestanding installation; 395 mm wide x 800 mm deep x 1120 mm high
• Stainless steel construction throughout
• Production rate of 29 kg per hour
• Australian made
• 2-year parts and labour warranty

Specifications

• Width (mm): 395
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 70
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 81
• Packed Width (mm): 430.0
• Packed Height (mm): 1320.0
• Packed Depth (mm): 1100.0
• Shipping Cubic: 0.624360000m3
• Capacity (Litres): 20 L oil
• Pan Size: 353 x 353 x 300
• Power / Gas Input: 97 MJ
• Power Rating: 90 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 100
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 93°C - 190°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
