Overview

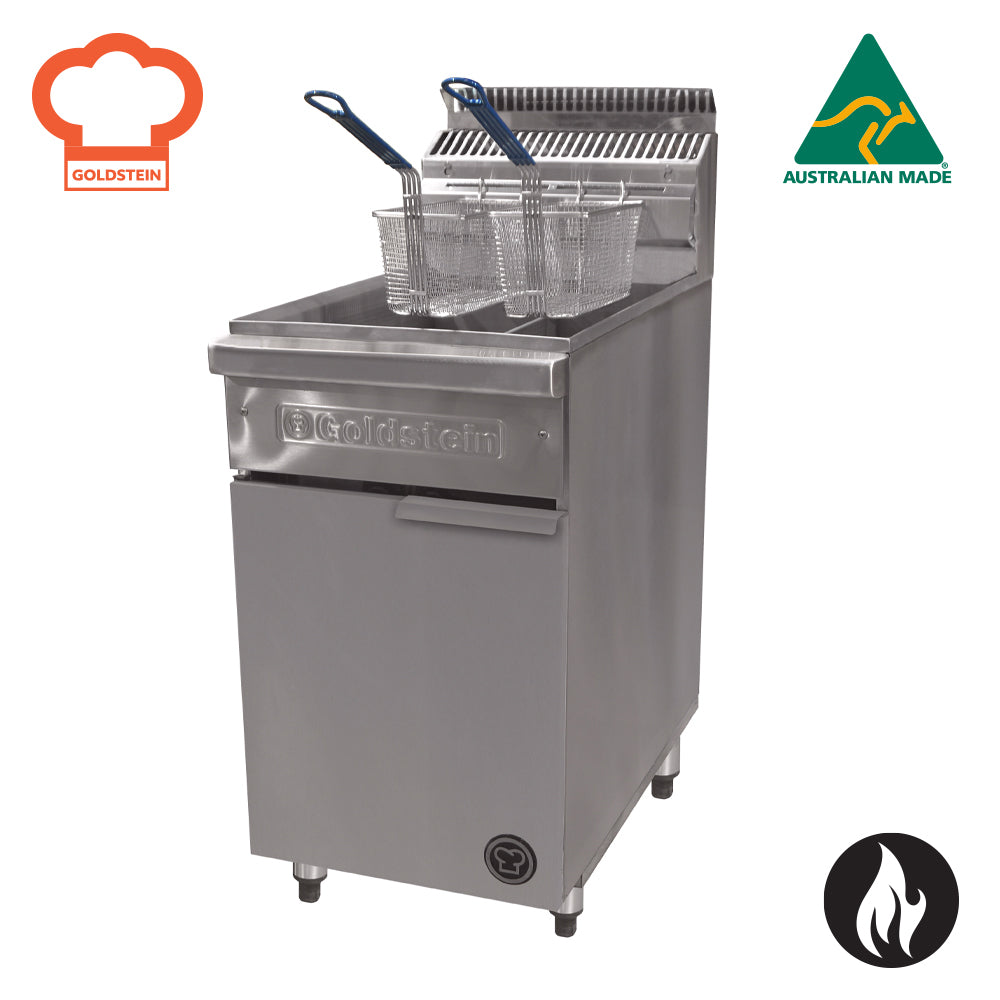

Goldstein VFGTL 800 Series V-Pan Split Pan Gas Fryer 450mm Wide

The Goldstein VFGTL is an Australian-made commercial gas fryer built around a high-performance V-pan design that delivers exceptional energy efficiency, rapid heat response and outstanding cooking flexibility. Configured as a split pan unit, it houses two independent 16-litre oil pans, each measuring 176mm wide by 353mm deep by 300mm high, allowing operators to fry different products simultaneously or shut down one side during quieter periods to save energy.

Precision temperature management is at the heart of this fryer, with a thermostat accurate to plus or minus 2 degrees Celsius ensuring consistent, repeatable results across every service. Continuous pilot ignition with piezo flame failure protection adds reliability and safety, while the large cool zone beneath the heating elements slows oil degradation and extends oil life considerably. At 450mm wide, the VFGTL integrates neatly into tight kitchen lines and cover or joiner strips are available for seamless multi-unit installations.

Key Benefits

• Split pan configuration lets you fry two different products at once or operate a single pan during off-peak periods, reducing gas consumption and oil usage.
• Plus or minus 2 degree Celsius thermostat precision maintains consistent cooking temperatures across every batch, reducing over- or under-cooked product.
• V-pan geometry combined with a large cool zone slows oil breakdown, extending oil life and lowering consumable costs.
• Rapid heat recovery after each load drop keeps output high during busy service periods without long waits between batches.
• Continuous pilot ignition with piezo flame failure device provides reliable, safe lighting and automatic shutdown if the flame is extinguished.
• Stainless steel construction throughout simplifies cleaning and withstands the rigours of daily commercial use.
• Compact 450mm footprint with line-up nosing and optional cover or joiner strips allows flexible positioning and tidy multi-fryer lineups.
• Australian-made build quality supports local service networks and ensures the unit is engineered for Australian gas supply conditions, available in both natural gas and LPG configurations.

Key Features

• V-pan split pan design with two independent half pans, each 176mm wide x 353mm deep x 300mm high
• Total oil capacity of 2 x 16 litres (32 litres combined)
• One frying basket included per pan (two baskets total)
• Plus or minus 2 degrees Celsius precision thermostat for consistent temperature control
• Temperature range of 93 degrees Celsius to 190 degrees Celsius
• Gas input rating of 105 MJ; output rating of 130 MJ/h
• Compatible with natural gas and LPG; 3/4 inch BSP gas connection
• Continuous pilot ignition with piezo ignition and flame failure safety device
• Large cool zone beneath heating elements to protect oil quality and extend oil life
• Stainless steel pan and exterior construction for durability and easy cleaning
• Line-up nosing for flush multi-unit installations
• Cover and joiner strips available as accessories for multi-unit lineups
• Freestanding installation; overall dimensions 450mm wide x 800mm deep x 1120mm high
• Unit weight 80 kg
• Australian made

Specifications

• Width (mm): 450
• Depth (mm): 800
• Height (mm): 1120
• Weight (kg): 80
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4" BSP
• Ignition Type: Piezo with Flame Failure
• Shipping Weight: 81
• Packed Width (mm): 750.0
• Packed Height (mm): 1140.0
• Packed Depth (mm): 1040.0
• Shipping Cubic: 0.889200000m3
• Capacity (Litres): 2 x 16 L oil
• Power / Gas Input: 105 MJ
• Power Rating: 130 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: 93°C - 190°C
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Gas
