Overview

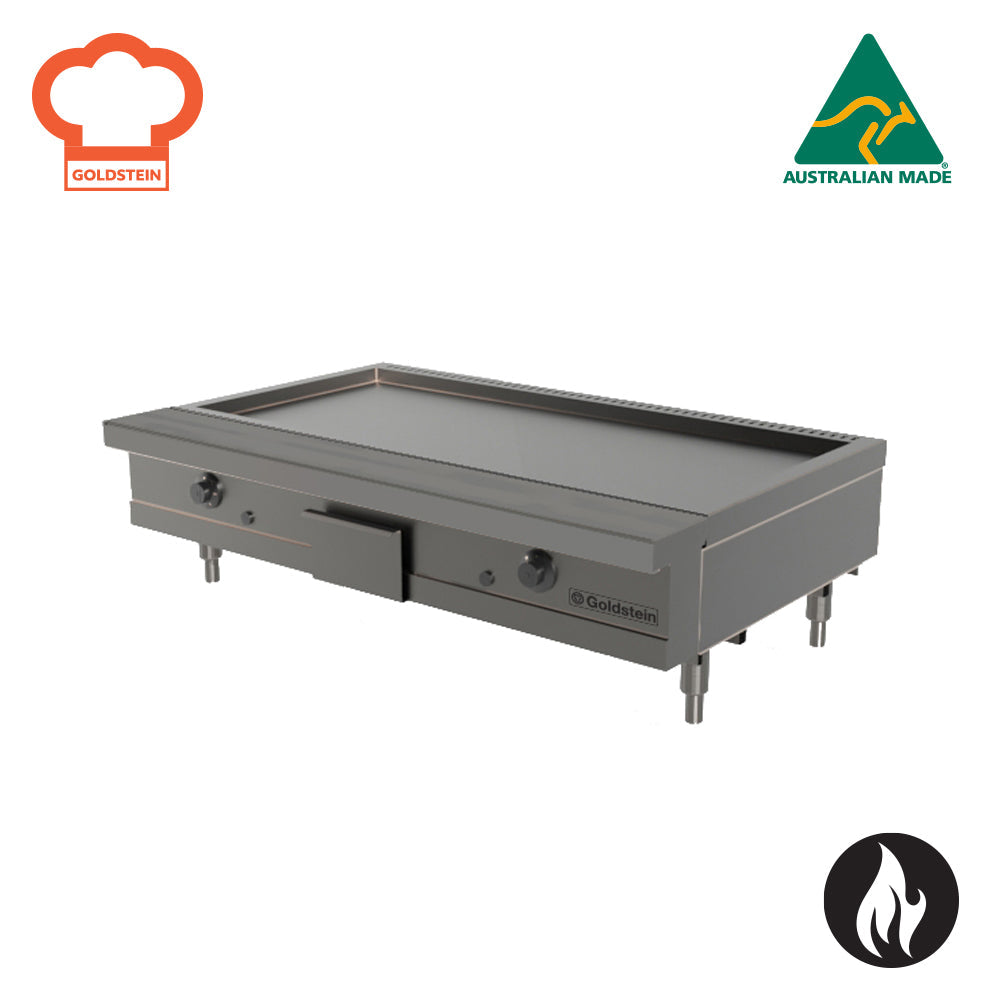

Goldstein TK45 Gas Teppanyaki Plate

The Goldstein TK45 is an Australian-made commercial gas teppanyaki plate built for high-volume kitchens and live-cooking venues. Its 20mm thick smooth mild steel plate delivers exceptional heat retention and even temperature distribution across the full 1044 x 420mm cooking surface, giving chefs precise, consistent results service after service.

Powered by two heavy-duty cast iron ring burners with a combined output of 80 MJ/h, the TK45 offers flexible installation as a bench-mounted unit or on an optional stand. Stainless steel hob, fascia, and plate surround keep cleaning quick and straightforward, while piezo ignition with flame failure protection adds a layer of operational safety.

Key Benefits

• Thick 20mm mild steel plate retains heat effectively, minimising temperature drop when food is loaded and ensuring consistent cook quality throughout service.
• Two heavy-duty cast iron ring burners provide powerful, even heat spread across the entire plate surface, reducing hot spots and giving chefs greater cooking control.
• Bench-mounted or stand-mounted installation options allow the unit to suit a wide range of kitchen layouts and counter configurations.
• Stainless steel hob, fascia, and plate surround are straightforward to wipe down, reducing cleaning time between services.
• Piezo ignition with flame failure device allows fast, safe lighting and automatically cuts gas if the flame is extinguished, protecting kitchen staff.
• Dual natural gas and LPG compatibility makes the unit suitable for venues with different gas supplies without requiring additional conversion kits.
• Australian manufacture supports reliable parts availability and local service support, minimising downtime in busy operations.

Key Features

• 20mm thick smooth mild steel griddle plate, 1044mm x 420mm cooking surface
• Two heavy-duty cast iron ring burners, each rated at 40 MJ/h, total output 80 MJ/h
• Centre heat distribution with smooth mild steel cooking surface
• Piezo ignition with flame failure safety device
• Stainless steel hob, fascia, and plate surround
• Baked enamel sides; stainless steel front, sides, and bottom panels
• Compatible with natural gas and LPG; 3/4 BSP gas connection
• Bench-mounted as standard; optional stand available
• Freestanding or built-in installation
• Thermostat control
• Overall dimensions: 1120mm (W) x 700mm (D) x 345mm (H)
• Unit weight: 120 kg
• Made in Australia

Specifications

• Width (mm): 1120
• Depth (mm): 700
• Height (mm): 345
• Weight (kg): 120
• Colour: Stainless Steel
• Gas Type: Natural Gas / LPG
• Gas Connection: 3/4 BSP
• Ignition Type: Piezo with Flame Failure
• Burner Output (MJ/h): 80
• Shipping Weight: 185
• Packed Width (mm): 1250.0
• Packed Height (mm): 530.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 0.596250000m3
• Power / Gas Input: 80 MJ
• Power Rating: 80 MJ/h
• Power Supply: N/A (Gas)
• Power (kW): 80
• Voltage/Phase: N/A (Gas)
• Country of Origin: Australia (Made)
• Material: Stainless Steel
• Temperature Range: N/A (Open flame)
• Installation Type: Freestanding / Built-in
• Control Type: Thermostat
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
