Overview

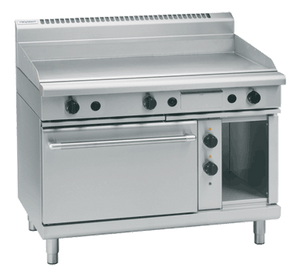

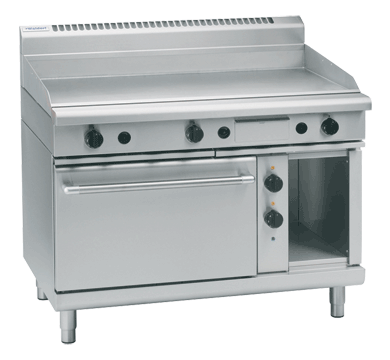

Waldorf GP8121GE 800 Series 1200mm Gas Griddle Electric Static Oven Range

The Waldorf GP8121GE is a heavy-duty 1200mm wide commercial range from the 800 Series, combining a high-output gas griddle top with a 2/1 GN electric static oven beneath. Constructed from 304 stainless steel and manufactured in New Zealand, it is engineered for the rigorous demands of busy commercial kitchens, delivering consistent, even heat across both cooking zones.

The griddle section features a 20mm thick top-weld sealed plate for excellent heat retention and uniform heat distribution, powered by an 80MJ/hr thermostatic burner system with push-button piezo ignition and full flame failure protection on all burners. The electric static oven below is lined with vitreous enamel-coated welded walls and a cast iron even heat sole plate, offering precise thermostatic temperature control for reliable baking and roasting. Optional ribbed or chrome mirror griddle plates are available to suit different menu requirements.

Key Benefits

• The 20mm thick seamless weld-construction griddle plate retains and distributes heat evenly, reducing hot spots and improving cooking consistency across the full surface.
• Flame failure protection on all burners and push-button piezo ignition provide a safer, faster start-up process and peace of mind during continuous service.
• The 2/1 GN electric static oven accommodates full gastronorm trays, maximising usable oven capacity for high-volume baking and roasting.
• A cast iron even heat oven sole plate combined with vitreous enamel-lined walls ensures stable, consistent oven temperatures and simplifies cleaning.
• Thermostatic controls on both the griddle and oven allow precise temperature management, reducing energy waste and improving menu repeatability.
• Adjustable feet and two additional rollers make installation straightforward and allow repositioning within the kitchen without heavy lifting.
• The stainless steel grease drawer beneath the griddle catches run-off for quick, hygienic removal, reducing cleaning time between services.
• Heavy-duty reinforced control knobs and a cool-touch stainless steel door handle are built to withstand the wear of daily commercial use.
• A two-year parts and labour warranty backs the unit, reflecting the robust build quality expected from Waldorf's New Zealand manufacturing.

Key Features

• 1200mm wide 800 Series gas griddle and electric static oven range
• 20mm thick griddle plate with top weld sealed, seamless construction for superior heat retention and even distribution
• 80MJ/hr thermostatic burner system across the griddle top
• Three 36MJ three-bar even heat burners with individual thermostatic controls
• Full pilot and flame failure protection on all burners
• Push-button piezo ignition for reliable, tool-free lighting
• Optional ribbed or chrome mirror griddle plate available as an upgrade
• Stainless steel grease drawer for easy collection and disposal of cooking run-off
• 2/1 GN electric static oven with welded, vitreous enamel-lined interior
• Cast iron even heat oven sole plate for stable base heat distribution
• 6.5kW electric oven heating elements
• Oven thermostatic temperature control with Lo-Hi top heat control
• Oven temperature range: 50-320°C (thermostatic control)
• Indicator lights for oven power and heating status
• Cool-touch stainless steel oven door handle
• Drop-down oven door with welded frame construction
• 4 oven shelves included
• Storage cabinet on the right-hand side
• Heavy-duty reinforced control knobs for durability in continuous use
• Adjustable feet and two additional rollers for flexible installation and repositioning
• Stainless steel splashback included
• Constructed from 304 stainless steel throughout
• Compatible with both natural gas and LPG (R 3/4 BSP male connection)
• Electrical supply: 415V 3-phase (3P+N+E, 10A) or 1-phase 230-240V (1P+N+E, 27A) at 6.5kW
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 355.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 300
• Packed Width (mm): 1245.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.359353000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.5kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
