Overview

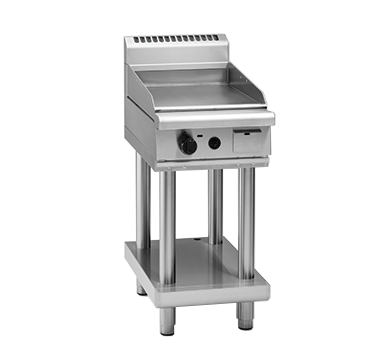

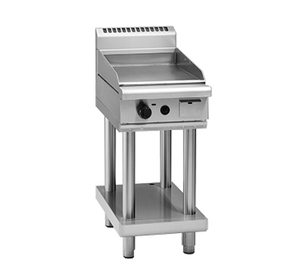

Waldorf GP8450G-CB 800 Series 450mm Gas Griddle with Cabinet Base

The Waldorf GP8450G-CB is a compact yet high-performance 450mm gas griddle built on a cabinet base, forming part of Waldorf's respected 800 Series of commercial cooking equipment. At its core is a 40MJ thermostatic burner system paired with a 20mm thick griddle plate that delivers outstanding heat retention and consistent heat distribution across the entire cooking surface, making it ideal for busy breakfast services, burgers, seafood and everything in between.

Manufactured in New Zealand from 304 stainless steel with a welded hob surround and top weld sealed plates, this unit is engineered for the demands of high-volume commercial kitchens. The cabinet base provides enclosed storage, while practical features such as push-button piezo ignition, heavy-duty reinforced control knobs, a stainless steel grease drawer, and adjustable feet with two additional rollers make daily operation, cleaning and servicing straightforward.

Key Benefits

• Consistent, even heat across a 442mm x 530mm smooth cooking surface reduces hot spots and improves cook quality across the full griddle plate.
• Thermostatic temperature control between 100°C and 290°C allows precise adjustment to suit different proteins, batters and cooking styles without guesswork.
• The 20mm thick griddle plate retains heat effectively during high-volume service, recovering temperature quickly between loads and reducing cooking time variation.
• Push-button piezo ignition enables fast, reliable start-up without the need for a separate ignition source, keeping service flow uninterrupted.
• A dedicated stainless steel grease drawer channels fat away from the cooking zone and pulls out for quick emptying and cleaning, supporting food safety and faster turnaround.
• Top weld sealed plates and a welded hob surround eliminate gaps where grease and debris can accumulate, significantly reducing cleaning time and effort.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven floors and reposition it during kitchen reorganisation or deep cleaning.
• Compatible with both natural gas and LPG, giving operators flexibility when installing in different venue configurations.
• Optional ribbed or chrome mirror plate inserts allow the same unit to handle a broader menu range, including char-style cooking or delicate items requiring a polished surface.

Key Features

• 450mm wide gas griddle mounted on an enclosed cabinet base with cabinet door
• 40MJ/hr thermostatic burner system with a single burner delivering 7.5kW output
• 20mm thick griddle plate for superior heat retention and even distribution
• Smooth cooking surface as standard; optional ribbed or chrome mirror plate available
• Cooking surface area: 442mm x 530mm
• Temperature range: 100°C to 290°C with thermostatic control
• Push-button piezo ignition for reliable, tool-free start-up
• Heavy-duty reinforced control knobs for durable, precise operation
• Top weld sealed plates for a hygienic, easy-clean cooking zone
• Welded hob surround constructed from 1.5mm 304 stainless steel with bull nose profile
• Stainless steel grease drawer for efficient fat collection and simple removal
• 63mm diameter heavy-duty legs in 1.2mm 304 stainless steel with adjustable feet and two additional rollers
• Splashback included
• Full 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 27
• Shipping Weight: 130
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 1
• Griddle Surface: Smooth
• Cooking Surface Area (mm): 442mm x 530mm
• Power Rating: 7.5 kW
• Temperature Control: Thermostatic
