Overview

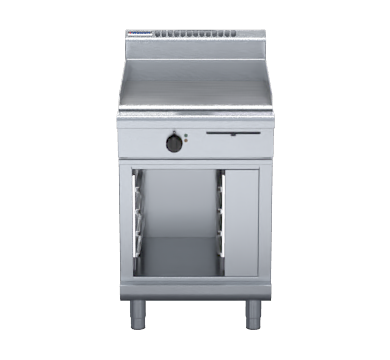

Waldorf GP8600E-CB 800 Series 600mm Electric Griddle with Cabinet Base

The Waldorf GP8600E-CB is a 600mm electric griddle from the heavy-duty 800 Series, mounted on a fully enclosed cabinet base and designed for the rigours of high-volume commercial kitchen service. Built in New Zealand from 304 stainless steel, it features a solid 20mm thick machined griddle plate powered by 7.2kW heating elements, delivering consistent heat retention and even distribution across the entire cooking surface for reliable results across breakfast service, burgers, seafood and more.

A single thermostatic temperature control zone with a range of 50 to 300°C keeps operation straightforward, while thoughtful design details such as top weld sealed plates, an overlapping front-to-rear plate finish, a stainless steel grease drawer and heavy-duty reinforced control knobs make daily cleaning and maintenance fast and efficient. The cabinet base is fully modular to suit a matched suite configuration, and the unit ships ready for connection at 230-240V, 30A single phase.

Key Benefits

• The 20mm thick machined plate retains and distributes heat evenly, reducing hot spots and improving cooking consistency across busy service periods.
• A single temperature control zone with a 50-300°C thermostat simplifies operation for kitchen staff and allows quick adjustment between menu items.
• Top weld sealed plates and an overlapping plate finish at the front and rear minimise grease traps, making end-of-service cleaning significantly faster.
• The stainless steel grease drawer channels and collects drippings hygienically, reducing mess and speeding up turnaround between services.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation and allow the unit to be moved for servicing when required.
• The fully modular cabinet base with double-skin 304 stainless steel interior and exterior integrates neatly into a matched suite of Waldorf 800 Series equipment.
• Large, heat-resistant reinforced control knobs with easy-view settings and indicator lights for power and heating give clear operational feedback at a glance.
• Optional ribbed plate sections or mirror-finish hard chrome plates allow the griddle to be configured for different menu requirements without purchasing a separate unit.

Key Features

• 600mm wide electric griddle on enclosed cabinet base
• 7.2kW heating elements; 230-240Vac, 50/60Hz, 1P+N+E, 30A
• 20mm thick machined griddle plate as standard for superior heat retention
• Single temperature control zone with thermostatic control, 50-300°C range
• Top weld sealed plates for hygienic, easy-clean construction
• Overlapping plate finish at front and rear minimises grease accumulation
• 2.0mm thick grease channel with stainless steel grease drawer
• 2.5mm thick 304 stainless steel splash guards on sides and rear
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Welded hob surround with 1.5mm 304 stainless steel bull nose trim
• Large heat-resistant reinforced control knob with easy-view settings
• Indicator lights for power and heating status
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base for matched suite configuration
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers included for ease of installation and repositioning
• Optional GN 1/1 four-position racking kit for cabinet base
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plate available
• Splashback included
• Manufactured in New Zealand
• 2-year parts and labour warranty

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 53
• Shipping Weight: 172
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1P+N+E|230-240Vac|30A|50/60Hz|7.2kW
• Voltage/Phase: 7.2kW; 230-240Vac, 50/60Hz, 1P+N+E, 30A
• Temperature Control: Thermostatic
