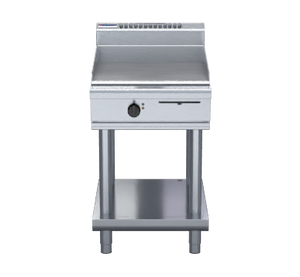

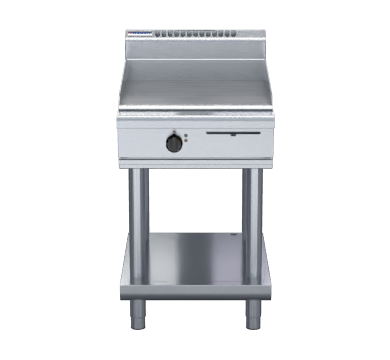

Waldorf GP8600E-LS 800 Series 600mm Electric Griddle on Leg Stand

The Waldorf GP8600E-LS is a heavy-duty 600mm electric griddle mounted on a dedicated leg stand, forming part of the renowned 800 Series range designed and manufactured in New Zealand. The unit is built around a 20mm thick machined griddle plate powered by 7.2kW heating elements, delivering exceptional heat retention and consistent heat distribution across the entire cooking surface, making it ideal for high-volume breakfast service, burgers, seafood and a broad range of griddle cooking applications.

Constructed throughout in 304 stainless steel, this griddle is engineered for the demands of a busy commercial kitchen. A single thermostatic temperature control zone covering 50 to 300°C gives operators precise, consistent control, while design features including top weld sealed plates, a plate edge profile that closes off both the front and rear margins, a stainless steel grease drawer and a tool-free quick-assembly leg stand all contribute to fast, straightforward cleaning, installation and servicing.

Key Benefits

• The 20mm thick machined griddle plate retains heat effectively under heavy load, reducing temperature recovery time and supporting consistent cooking results during peak service.
• A single thermostatic control zone spanning 50 to 300°C gives operators precise temperature management for a wide variety of menu items on the one surface.
• Top weld sealed plates and a plate construction that closes off both the front and rear margins minimise grease traps, making the cooking surface significantly faster to clean between services.
• The stainless steel grease drawer channels fat away cleanly and is easy to remove and empty without interrupting service.
• Adjustable feet combined with two additional rollers allow the unit to be levelled accurately on uneven floors and repositioned without difficulty.
• The quick-assembly modular leg stand requires no tools to put together and connects directly to the griddle head, reducing installation time on site.
• Indicator lights for both power and heating status give kitchen staff an at-a-glance confirmation that the unit is operating, reducing the risk of cooking on an insufficiently heated surface.
• Optional ribbed plate sections and mirror finish hard chrome plates provide flexibility to configure the griddle for different cooking styles or menu requirements without changing the base unit.
• Fully modular construction allows the unit to be paired with other 800 Series appliances for a matched suite finish, supporting a cohesive and professional kitchen layout.

Key Features

• 600mm wide electric griddle on dedicated leg stand
• 7.2kW heating elements; electrical supply 230–240V AC, 50/60Hz, 1P+N+E, 30A
• 20mm thick machined griddle plate as standard for superior heat retention and even cooking
• Single temperature control zone with thermostat range 50–300°C
• Top weld sealed griddle plates for structural integrity and hygienic construction
• Plate edge profile that covers both the front and rear margins of the plate to minimise grease accumulation and simplify cleaning
• Perimeter splash guards on the sides and rear fabricated from 2.5mm thick 304 stainless steel
• 2.0mm thick grease channel directing run-off efficiently
• Welded hob surround constructed from 1.5mm 304 stainless steel with a bull nose profile
• Rear splash panel and flanking side panels fabricated from 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Stainless steel grease drawer for easy fat collection and removal
• Large heat-resistant reinforced control knob with easy-view control settings
• Indicator lights for both power on and heating status
• Leg stand features 63mm diameter heavy-duty legs in 1.2mm 304 stainless steel with adjustable feet
• Two additional rollers for repositioning the unit
• Fully modular framed stand shelf finished in 0.9mm 304 stainless steel
• Framed stand top designed for secure connection to the griddle head
• Quick-assembly leg stand design requires no tools
• Stand shelf accommodates gas connection routing from the rear or through the shelf to suit suite configurations

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 53
• Shipping Weight: 170
• Packed Width (mm): 645.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.373165000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 2
• Griddle Surface: Smooth
• Power Rating: 1P+N+E|230-240Vac|30A|50/60Hz|7.2kW
• Voltage/Phase: 7.2kW; 230-240Vac, 50/60Hz, 1P+N+E, 30A
• Temperature Control: Thermostatic
