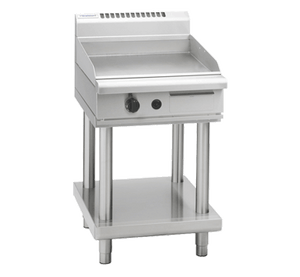

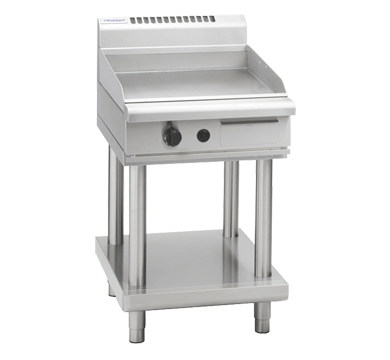

Waldorf GP8600G-LS 800 Series 600mm Gas Griddle on Leg Stand

The Waldorf GP8600G-LS is a commercial-grade 600mm gas griddle mounted on a dedicated leg stand, forming part of the trusted Waldorf 800 Series. Built from 304 stainless steel in New Zealand, it features a solid 20mm thick griddle plate with seamless weld construction that delivers exceptional heat retention and uniform heat distribution across the entire cooking surface, making it well suited to high-volume breakfast, burger and general grill cookery.

The unit operates on a 53MJ/hr thermostatic burner system across two burners, with a temperature range of 100–290°C and a generous 590mm x 530mm cooking surface. Designed for practical everyday use, the GP8600G-LS incorporates push-button piezo ignition, heavy-duty reinforced control knobs, a stainless steel grease drawer, adjustable feet, and two additional rollers for easy repositioning. Optional ribbed or chrome mirror plate configurations are also available to suit different menu requirements.

Key Benefits

• The 20mm thick solid griddle plate stores and distributes heat evenly across the full cooking surface, reducing hot spots and supporting consistent results during high-demand service periods.
• Thermostatic temperature control across a 100–290°C range gives operators precise heat management for a wide variety of proteins, vegetables and breakfast items without constant manual adjustment.
• Push-button piezo ignition allows fast, tool-free start-up, minimising pre-service preparation time.
• The stainless steel grease drawer captures drippings and is easily removed for cleaning, supporting faster kitchen turnaround and improved hygiene compliance.
• Adjustable feet and two additional rollers make positioning and levelling straightforward, even on uneven floors, and allow the unit to be moved when needed for cleaning or reconfiguration.
• Top weld sealed plates prevent grease and food debris from penetrating the plate joins, simplifying daily cleaning and extending the service life of the griddle surface.
• Optional ribbed or chrome mirror plate upgrades give operators the flexibility to adapt the unit to different cooking styles or menu requirements without replacing the whole appliance.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, providing flexibility for a range of commercial kitchen setups.
• Manufactured from 304 stainless steel with an integrated splashback and undershelf, the unit is built for durability and provides practical workspace storage at the same time.

Key Features

• 600mm wide gas griddle mounted on a purpose-built leg stand
• Part of the Waldorf 800 Series, manufactured in New Zealand
• 304 stainless steel construction throughout
• 20mm thick solid griddle plate with seamless weld construction for superior heat retention and even heat distribution
• Top weld sealed plates for easy cleaning and long-term durability
• 53MJ/hr thermostatic burner system with two burners (14.7kW total output)
• Temperature range: 100–290°C
• Cooking surface area: 590mm x 530mm
• Smooth griddle surface as standard; optional ribbed or chrome mirror plate available
• Push-button piezo ignition for quick, reliable start-up
• Heavy-duty reinforced control knobs for robust daily operation
• Stainless steel grease drawer for hygienic and convenient grease collection
• Adjustable feet plus two additional rollers for levelling and manoeuvrability
• Integrated splashback
• Undershelf included for additional storage
• Accepts both natural gas and LPG; R 3/4 (BSP) male gas connection
• Designed for easy cleaning, installation and servicing

Specifications

• Width (mm): 600
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 53
• Shipping Weight: 185
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 2
• Griddle Surface: Smooth
• Cooking Surface Area (mm): 590mm x 530mm
• Power Rating: 14.7 kW
• Temperature Control: Thermostatic
