Overview

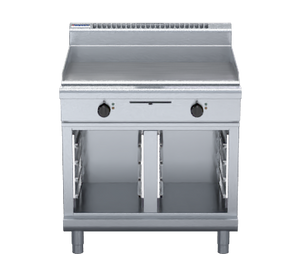

Waldorf GP8900E-CB 800 Series 900mm Electric Griddle Cabinet Base

The Waldorf GP8900E-CB is a heavy-duty 900mm electric griddle built on a fully enclosed cabinet base, forming part of the Waldorf 800 Series. Powered by 12kW heating elements across a 20mm thick machined griddle plate, it delivers outstanding heat retention and uniform temperature distribution across the entire cooking surface, making it ideal for high-volume breakfast service, burgers, and a wide range of griddled foods.

Constructed from 304 stainless steel throughout and manufactured in New Zealand, this unit is engineered for the demands of professional commercial kitchens. The cabinet base is fully modular to allow suite matching, and the griddle is available with optional ribbed plate sections or mirror-finish hard chrome plates to suit different menu requirements. Adjustable feet and two rollers simplify installation and repositioning, while top-welded sealed plates and a stainless steel grease drawer make daily cleaning fast and straightforward.

Key Benefits

• The 20mm thick machined griddle plate provides exceptional heat retention and even temperature distribution, reducing hot spots and ensuring consistent cooking results across every service.
• Thermostatic temperature control with dual 50-300°C thermostats and separate left and right heat zones allows operators to run different temperature profiles simultaneously, maximising cooking flexibility during busy service.
• Top-welded sealed plates with overlapping finishes at the front and rear of the plate minimise grease traps, significantly reducing cleaning time between services.
• The stainless steel grease drawer captures drippings efficiently and can be removed and cleaned quickly, supporting high-turnover kitchen hygiene standards.
• Adjustable feet and two additional rollers make levelling and repositioning the unit straightforward, reducing installation time and effort.
• The fully modular cabinet base with double-skin 304 stainless steel interior and exterior can be matched to other Waldorf 800 Series equipment for a cohesive suite finish, and supports an optional GN 1/1 four-position racking kit for additional storage capacity.
• Indicator lights for power and heating status give operators an at-a-glance view of the unit's operating condition, reducing the risk of cooking errors during busy periods.
• Optional ribbed plate sections or mirror-finish hard chrome plates allow the unit to be configured for a wider variety of menu items without requiring a separate piece of equipment.
• Backed by a 24-month parts and labour warranty, providing commercial operators with confidence in long-term reliability and reduced total cost of ownership.

Key Features

• 900mm wide electric griddle on an enclosed cabinet base
• 12kW heating elements; electrical supply 400-415Vac, 50/60Hz, 3P+N+E
• 20mm thick machined griddle plate as standard for superior heat retention and distribution
• Single temperature control zone with separate left and right side heat zones
• Two thermostats with 50-300°C operating range
• Large heat-resistant reinforced control knobs with easy-view control settings
• Indicator lights for power on and heating status
• Top-welded sealed plate construction
• Overlapping finish at front and rear of plate for easy cleaning
• 2.5mm thick 304 stainless steel splash guards on sides and rear
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.0mm thick grease channel
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• Stainless steel grease drawer
• Fully modular cabinet base for suite matching
• Double-skin 0.9mm 304 stainless steel cabinet interior and exterior
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for ease of repositioning
• Optional GN 1/1 four-position racking kit for cabinet (one or two bays); capacity up to eight 65mm GN 1/1 trays
• Optional ribbed plate sections
• Optional mirror-finish hard chrome plates
• Constructed from 304 stainless steel throughout
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 80
• Shipping Weight: 223
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 12kW|3P+N+E|400-415Vac|50/60Hz
• Voltage/Phase: 12kW; 400-415Vac, 50/60Hz, 3P+N+E
• Temperature Control: Thermostatic
