Overview

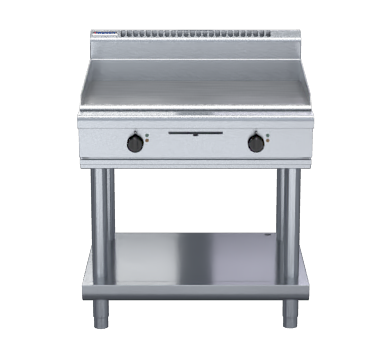

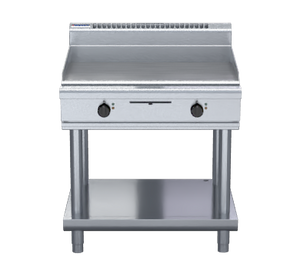

Waldorf GP8900E-LS 800 Series 900mm Electric Griddle on Leg Stand

The Waldorf GP8900E-LS is a 900mm wide electric griddle from the heavy-duty 800 Series, mounted on a dedicated leg stand for freestanding installation in commercial kitchens. Powered by 12kW three-phase elements and built around a 20mm thick machined griddle plate, it delivers exceptional heat retention and uniform temperature distribution across the entire cooking surface, making it equally suited to high-volume breakfast service, burgers, seafood and a wide range of grilled proteins.

Constructed throughout in 304 stainless steel, the GP8900E-LS features a welded hob surround, sealed top plates, splash guards, a stainless steel grease drawer and fully modular leg stand with adjustable feet and two additional rollers for easy repositioning. Optional ribbed plate sections or mirror-finish hard chrome plates allow the unit to be configured for specific menu requirements, while a quick-assembly leg stand design means installation and routine servicing are straightforward.

Key Benefits

• The 20mm thick machined plate retains heat effectively under heavy load, reducing temperature recovery time during continuous service and maintaining consistent cooking results.
• Thermostatic temperature control across the cooking zone, ranging from 50 to 300°C, gives operators precise adjustment to suit different proteins and menu items without hot or cold spots.
• Separate left and right heat zones with individual thermostats allow two different cooking temperatures to be maintained simultaneously, improving menu flexibility and energy efficiency.
• Top weld sealed plates and overlapping finishes at the front and rear of the plate eliminate grease traps, making the surface faster and easier to clean between services.
• The stainless steel grease drawer channels drippings away from the cooking surface efficiently, reducing smoke and simplifying end-of-service clean-down.
• Adjustable feet and two additional rollers on the leg stand allow the unit to be levelled precisely on uneven floors and repositioned within the kitchen without heavy lifting.
• The fully modular leg stand is designed to integrate with matched Waldorf 800 Series suite equipment, enabling a consistent professional appearance across a complete kitchen line-up.
• Heavy-duty, heat-resistant reinforced control knobs with easy-view settings remain legible and operable in demanding high-temperature kitchen environments.
• Optional ribbed plate sections or mirror-finish hard chrome plates let operators customise the cooking surface to suit specific menu items such as char-marked proteins or delicate seafood.

Key Features

• 900mm wide electric griddle on leg stand
• 12kW heating elements; electrical requirements: 12kW, 400-415Vac, 50/60Hz, 3P+N+E
• 20mm thick machined griddle plate for superior heat retention and even heat distribution
• Single temperature control zone with separate left and right side heat zones
• Two thermostats with a 50-300°C operating range
• Top weld sealed griddle plates
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• 2.5mm thick 304 stainless steel splash guards on sides and rear
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.0mm thick grease channel
• Stainless steel grease drawer
• Overlapping finish at front and rear of plate for easier cleaning
• Large, heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Leg stand features 63mm diameter heavy-duty 1.2mm 304 stainless steel legs
• Adjustable feet and two additional rollers for levelling and repositioning
• Framed top connection to griddle; framed stand shelf with 0.9mm 304 stainless steel finish
• Fully modular construction for matched suite finish with other 800 Series equipment
• Quick-assembly leg stand design requiring no tools
• Suitable for rear or through-shelf connection
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Manufactured in New Zealand
• 304 stainless steel construction throughout
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 80
• Shipping Weight: 170
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 12kW|3P+N+E|400-415Vac|50/60Hz
• Voltage/Phase: 12kW; 400-415Vac, 50/60Hz, 3P+N+E
• Temperature Control: Thermostatic
