Overview

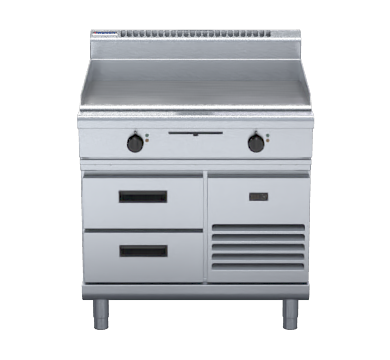

Waldorf GP8900E-RB 800 Series 900mm Electric Griddle with Refrigerated Base

The Waldorf GP8900E-RB pairs a heavy-duty 900mm electric griddle with a suite-matched, self-contained refrigerated base, forming a compact integrated cooking and cold storage solution purpose-built for busy commercial kitchens. The griddle delivers 12kW of heating power across a single temperature control zone, while the refrigerated base is a ventilated, self-contained unit housing two GN 1/1 drawers and operating across a temperature range of -2°C to +8°C, with a tropical climate rating.

Built throughout in 304 stainless steel, the GP8900E-RB is engineered for straightforward daily operation, cleaning, and servicing. The refrigerated base needs no condensate drain connection, and its condensing unit can be withdrawn from the front of the unit for fast, uncomplicated maintenance. Optional ribbed plate sections or hard chrome mirror plates allow the griddle cooking surface to be tailored to a wide range of menu applications.

Key Benefits

• The integrated refrigerated base keeps ingredients cold directly beneath the griddle, cutting the distance between cold storage and the cooking surface during a busy service period.
• A single temperature control zone spanning the full 900mm griddle plate simplifies operation and delivers consistent, even heat across the entire cooking surface.
• Self-contained refrigeration that requires no condensate drain reduces installation complexity and removes the need for ongoing drainage maintenance.
• The condensing unit can be accessed and withdrawn through the front of the unit, allowing servicing to be completed quickly without pulling the equipment out of the line.
• Drawer gaskets fitted with magnetic seals can be swapped out without any tools, keeping downtime short and routine maintenance costs low.
• An overlapping plate finish at both the front and rear of the griddle top, combined with a stainless steel grease drawer, makes end-of-service clean-down quick and thorough.
• Adjustable feet and two additional rollers allow the unit to be levelled precisely and moved with ease during kitchen reconfiguration or cleaning.
• Optional ribbed plate sections or hard chrome mirror plates mean the cooking surface can be matched to specific menu requirements without needing a separate piece of equipment.
• A 50mm fully foamed CFC-free insulation layer and an anti-corrosion treated evaporator support long-term reliable refrigeration performance in a demanding commercial environment.

Key Features

• 900mm wide electric griddle mounted on a suite-matched, self-contained refrigerated base
• 12kW heating elements; electrical supply 400-415Vac, 50/60Hz, 3P+N+E
• 20mm thick machined griddle top plates as standard
• Single temperature control zone across the full griddle surface
• Top weld sealed griddle plates
• Overlapping plate finish at front and rear for easy cleaning
• Splash guards on sides and rear fabricated from 2.5mm thick 304 stainless steel
• 2.0mm thick grease channel with stainless steel grease drawer
• Welded hob surround constructed in 1.5mm 304 stainless steel, finished with a bull nose profile; splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Heavy-duty reinforced control knobs
• Optional ribbed plate sections available
• Optional mirror finish hard chrome plates available
• Refrigerated base temperature range -2°C to +8°C, tropical climate rated
• Ventilated refrigeration system using R134a refrigerant
• Two GN 1/1 drawers with a pan depth capacity of 100mm, supported by heavy-duty European telescopic drawer guides
• Drawer gaskets use a magnetic seal design and can be replaced without tools
• 50mm fully foamed CFC-free insulation
• 304 stainless steel exterior and interior throughout the refrigerated base
• Anti-corrosion treated evaporator
• No condensate drain required
• Digital electronic thermostat with automatic defrost
• Automatic evaporation of defrost water
• Condensing unit removable through the front of the unit for servicing
• Legs constructed from 1.2mm 304 stainless steel tube at 63mm diameter, heavy-duty rated, with adjustable feet
• Two additional rollers for repositioning
• Refrigerated base electrical supply: single-phase 220-240Vac, 50Hz, drawing 1.8A on a 1P+N+E circuit, supplied with a 3-pin 10A plug cord

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 80
• Shipping Weight: 223
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 12kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
