Overview

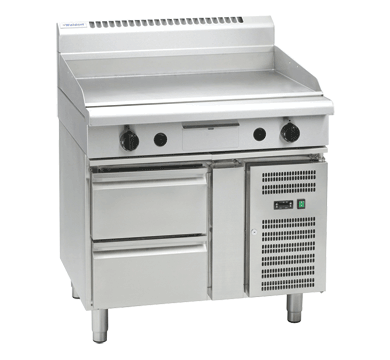

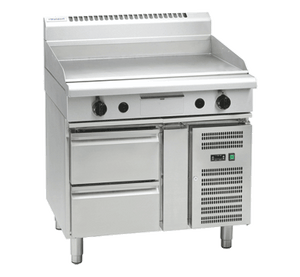

Waldorf GP8900G-RB 800 Series 900mm Gas Griddle with Refrigerated Base

The Waldorf GP8900G-RB combines a heavy-duty 900mm gas griddle with an integrated refrigerated base, delivering a compact two-in-one cooking and cold storage solution purpose-built for high-volume commercial kitchens. The griddle features a 20mm thick plate powered by an 80MJ/h thermostatic burner system across three burners, while the ventilated refrigerated base maintains temperatures between 0°C and 4°C using R134a refrigerant, keeping mise en place and ingredients within arm's reach of the cooking surface.

Constructed from 304 stainless steel and manufactured in New Zealand, the GP8900G-RB is engineered for durability and ease of maintenance. Top weld sealed plates prevent grease and food debris from penetrating joints, and a dedicated stainless steel grease drawer simplifies cleaning between services. The unit accepts both natural gas and LPG and connects via a 3/4 inch BSP male fitting, with electrical supply for the refrigeration system via a standard 3-pin 10A plug cordset.

Key Benefits

• Integrated refrigerated base keeps ingredients at safe serving temperature directly beneath the cooking surface, reducing movement and improving service efficiency.
• 80MJ/h thermostatic burner system across three burners delivers precise, consistent heat control across the full 900mm griddle surface.
• 20mm thick griddle plate retains and distributes heat evenly, reducing hot spots and supporting high-volume cooking without temperature recovery delays.
• Push-button piezo ignition allows fast, reliable burner lighting without the need for a match or separate igniter.
• Top weld sealed plates and a removable stainless steel grease drawer make cleaning straightforward and help maintain hygiene standards between services.
• Adjustable feet and two additional rollers allow the unit to be levelled on uneven floors and repositioned easily for cleaning or kitchen reconfiguration.
• Optional ribbed or chrome mirror plate upgrades offer flexibility to suit different menu requirements, from searing proteins to cooking delicate items.
• Ventilated refrigeration system with tropical climate classification ensures consistent cold storage performance even in hot commercial kitchen environments.
• Accepts both natural gas and LPG with a standard 3/4 inch BSP male connection, providing flexibility across different site gas supplies.

Key Features

• 900mm wide gas griddle mounted on an integrated refrigerated base unit
• Three-burner system with a combined output of 80MJ/h
• Thermostatic temperature control for precise griddle surface heat management
• 20mm thick griddle plate for superior heat retention and even cooking
• Top weld sealed plate construction prevents grease and debris ingress at joints
• Stainless steel grease drawer for hygienic and convenient grease collection
• Heavy-duty reinforced control knobs for reliable, long-term operation under frequent use
• Push-button piezo ignition system for quick and easy burner lighting
• Ventilated refrigeration system with R134a refrigerant (160g charge)
• Refrigerated base temperature range of 0°C to 4°C
• Tropical (T) climate classification for performance in high-ambient-temperature environments
• Electrical connection: 220-240Vac, 50Hz, 1.8A, 1P+N+E via 3-pin 10A plug cordset
• Compatible with both natural gas and LPG fuel supplies
• Gas connection via R 3/4 inch BSP male fitting
• Adjustable feet for levelling, plus two additional rollers for mobility
• Integrated splashback included
• Optional ribbed griddle plate or chrome mirror plate available
• Constructed from 304 stainless steel throughout
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 80
• Shipping Weight: 265
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 1.8A|1P+N+E|220-240Vac|3 pin 10A plug cordset fitted|50Hz
• Temperature Control: Thermostatic
