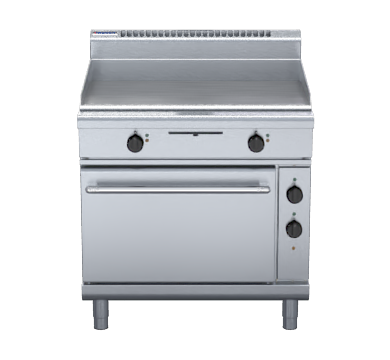

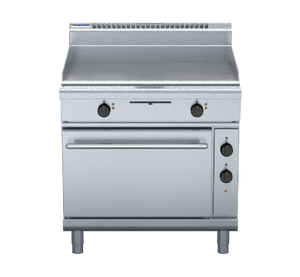

Waldorf GP8910E 800 Series 900mm Electric Griddle Static Oven Range

The Waldorf GP8910E is a 900mm wide commercial range from the 800 Series, pairing a heavy-duty electric griddle with a 2/1 GN electric static oven. The griddle is built around a 20mm thick machined solid plate with dual thermostatic control zones for independent left and right heat management, while the oven delivers consistent, even heat through 6.5kW heating elements, a cast iron sole plate and a fully welded vitreous enamelled liner with a temperature range of 150 to 300°C.

Manufactured in New Zealand from 304 stainless steel throughout, the GP8910E is engineered to meet the demands of high-volume commercial kitchens. A galvanised steel chassis, welded drop-down oven door with a spring hinge system, stainless steel grease drawer and overlapping plate finish all contribute to a unit that is straightforward to clean, service and maintain across continuous shifts. A 24-month warranty is included.

Key Benefits

• Independent left and right griddle heat zones allow simultaneous cooking of different products at different temperatures, maximising flexibility during service.
• The 20mm thick machined griddle plate provides exceptional heat retention and uniform heat distribution across the full cooking surface, reducing hot and cold spots.
• A cast iron even-heat oven sole plate ensures steady, consistent base heat for reliable baking and roasting results every time.
• GN 2/1 oven capacity with four-position racking accommodates large or multiple trays, supporting high commercial output from a single unit.
• The fully welded oven liner coated in vitreous enamel, along with a vitreous enamelled door inner, resists staining and simplifies post-service cleaning.
• High-density fibreglass oven insulation and a low-heat stainless steel door handle fitted with cast metal mounts protect staff during busy service periods.
• Adjustable feet and two additional rollers make levelling and repositioning the unit on the kitchen floor quick and practical.
• Heavy-duty reinforced control knobs and a robustly welded frame drop-down door engineered with a spring hinge mechanism are built to withstand constant daily use without degradation.
• Optional ribbed plate sections or mirror-finish hard chrome plates allow the griddle configuration to be tailored to specific menu requirements.

Key Features

• 900mm wide 800 Series electric griddle static oven range
• Galvanised steel chassis with a welded hob surround finished in 1.5mm 304 stainless steel with a bull nose profile
• Splashback and hob sides constructed from 1.2mm 304 stainless steel; front panels and oven sides formed from 0.9mm 304 stainless steel
• Legs standing 150mm tall, turned from 63mm diameter tube in 1.2mm 304 stainless steel, each fitted with an adjustable foot; two additional rollers supplied
• 20mm thick machined solid griddle plate with top weld-sealed construction for superior heat retention and even distribution
• Dual thermostatic control zones providing independent left and right griddle temperature management
• Griddle side and rear splash guards fabricated from 2.5mm thick 304 stainless steel plate
• Grease channel in 2.0mm thick steel paired with a stainless steel grease drawer
• Overlapping plate finish at front and rear for easy cleaning
• Optional ribbed plate sections and optional mirror-finish hard chrome plates available
• 2/1 GN electric static oven with four-position racking
• 6.5kW oven heating elements; total electrical requirement 18.6kW, 3 phase + N (26.6A per phase)
• Cast iron even-heat oven sole plate for consistent base temperature
• Fully welded oven liner clad in vitreous enamel for durability and easy cleaning
• Chrome wire rack supports designed for straightforward removal and reinsertion; two chrome wire oven racks supplied
• High-density fibreglass insulated oven cavity
• Welded frame drop-down oven door incorporating a heavy-duty spring hinge mechanism
• Oven door outer panel in 0.9mm 304 stainless steel; inner door panel press-formed in 1.0mm vitreous enamelled steel
• Door handle in low-heat stainless steel secured by cast metal mounting brackets
• Heavy-duty reinforced control knobs throughout
• Thermostatic temperature control; oven range 150 to 300°C
• Analog display
• Stainless steel splashback included
• Manufactured in New Zealand from 304 stainless steel
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.5kW
• Temperature Control: Thermostatic
• Display Type: Analog
