Overview

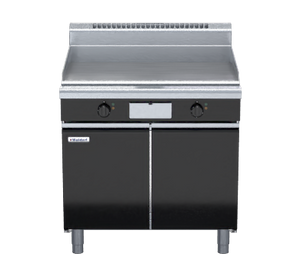

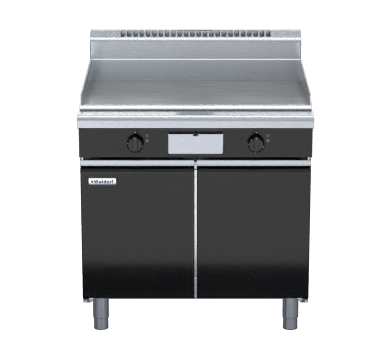

Waldorf Bold GPB8900E-CD 900mm Electric Griddle with Cabinet Base

The Waldorf Bold GPB8900E-CD is a heavy-duty 900mm electric griddle mounted on a fully enclosed cabinet base, designed for high-volume commercial kitchens that demand consistent, controllable cooking performance. Powered by 12kW heating elements across a 20mm thick machined griddle plate, it delivers even, responsive heat for everything from breakfast service to burgers and grilled proteins throughout the day.

Built in New Zealand from 304 stainless steel throughout, the GPB8900E-CD features dual independent thermostatic control zones covering left and right sides of the plate, giving operators precise temperature management across the full cooking surface. The cabinet base is fully modular to match suite configurations, and the unit is available in custom colours with optional ribbed or hard chrome mirror plate finishes to suit specific menu and operational requirements.

Key Benefits

• Dual independent heat zones with separate left and right thermostats (50-300°C) allow operators to cook different items simultaneously at different temperatures, reducing energy use during quieter periods.
• The 20mm thick machined griddle plate retains and distributes heat evenly across the full 900mm cooking surface, minimising hot spots and delivering consistent results across high-volume service.
• Top weld-sealed plates with overlapping finishes at the front and rear make cleaning faster and more thorough, supporting rapid turnaround between service periods.
• A stainless steel grease drawer captures drippings efficiently, simplifying grease management and reducing the risk of flare-ups or build-up on internal components.
• The fully modular cabinet base aligns with other Waldorf Bold suite equipment for a cohesive, professional kitchen layout, and supports optional GN 1/1 racking for storage of up to eight 65mm GN 1/1 pans.
• Large, heat-resistant reinforced control knobs with clearly visible settings make it straightforward for kitchen staff to adjust temperatures quickly and accurately during busy service.
• Adjustable feet and two additional rollers simplify installation, repositioning, and routine service access.
• Optional ribbed plate sections or mirror-finish hard chrome plates expand menu versatility, accommodating different cooking styles without requiring additional equipment.

Key Features

• 900mm wide electric griddle on enclosed cabinet base
• 12kW heating elements; 3P+N+E, 400-415Vac, 50/60Hz
• 20mm thick machined griddle plate as standard
• Dual thermostatic control zones: separate left and right side heat zones
• Two thermostats with 50-300°C operating range
• Top weld-sealed griddle plates with overlapping front and rear finish for easy cleaning
• 2.5mm thick 304 stainless steel splash guards on sides and rear
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.0mm thick grease channel
• Welded hob surround with 1.5mm 304 stainless steel bull nose
• Stainless steel grease drawer
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Cabinet base: double-skin construction with 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base for matched suite configuration
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Adjustable feet plus two additional rollers for ease of installation and service
• Optional GN 1/1 four-position racking kit available for one or two cabinet bays (up to eight 65mm GN 1/1 capacity)
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Default colour black; other custom colour options available
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 80
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 3
• Griddle Surface: Smooth
• Power Rating: 12kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
