Overview

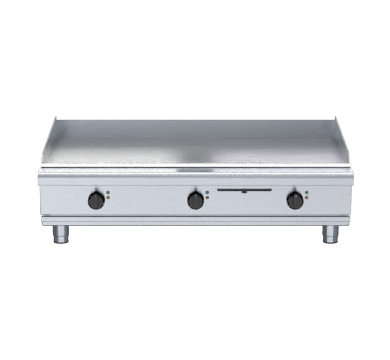

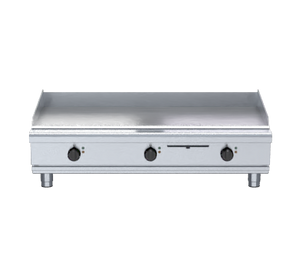

Waldorf GPL8120E-B 800 Series 1200mm Electric Griddle Low Back Bench Model

The Waldorf GPL8120E-B is a heavy-duty 1200mm electric griddle from the Waldorf 800 Series, engineered for high-volume commercial kitchens demanding consistent, reliable performance. Manufactured in New Zealand from 304 stainless steel throughout, it features a 20mm thick machined griddle plate delivering 16.2kW of heating power, with thermostatic temperature control across separate left, centre and right heat zones spanning 50 to 300°C.

Configured as a bench-mounted unit with a low back splashback, the GPL8120E-B comes with four heavy-duty adjustable legs offering a height range of 80 to 105mm, plus two additional rollers for ease of repositioning. Optional ribbed plate sections or mirror-finish hard chrome plates allow operators to tailor the unit to their menu requirements, while top-weld sealed plates, a stainless steel grease drawer, and overlapping plate edges at the front and rear simplify cleaning and reduce downtime.

Key Benefits

• The 20mm thick machined griddle plate retains and distributes heat evenly, reducing hot spots and ensuring consistent cooking results across the full 1200mm surface.
• Three independent heat zones, each with its own thermostat, allow simultaneous cooking of different foods at different temperatures, maximising throughput during peak service.
• Top-weld sealed plates and overlapping plate edges at the front and rear minimise grease traps and make end-of-service cleaning fast and thorough.
• The stainless steel grease drawer captures runoff efficiently, keeping the cooking area cleaner and reducing fire risk during extended service periods.
• Adjustable bench legs with a height range of 80 to 105mm and two included rollers make installation and repositioning straightforward without specialist tools.
• Large heat-resistant reinforced control knobs with easy-view settings remain legible and functional even in demanding, high-temperature kitchen environments.
• Optional ribbed plate sections or mirror-finish hard chrome plates let operators adapt the griddle to suit different menu items, from delicate fish to chargrilled vegetables.
• Indicator lights for power and heating status provide clear at-a-glance monitoring, helping kitchen staff track the unit quickly during busy service.
• Constructed from 304 stainless steel throughout and built in New Zealand, the unit is designed for long-term durability and straightforward compliance with kitchen hygiene standards.

Key Features

• 1200mm wide bench-mounted electric griddle, 800 Series, low back configuration
• 16.2kW total heating element output; 3P+N+E, 400–415Vac, 50/60Hz
• 20mm thick machined griddle plate as standard
• Separate left, centre and right heat zones with three individual thermostats, each adjustable from 50°C to 300°C
• Top-weld sealed griddle plates
• Overlapping plate finish at front and rear for easy cleaning
• Side and rear splash guards fabricated from 2.5mm 304 stainless steel sheet
• Welded hob surround constructed from 304 stainless steel formed to a 1.5mm bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel; front panels formed from 0.9mm 304 stainless steel sheet
• 2.0mm thick grease channel
• Stainless steel grease drawer
• Large heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Four 63mm diameter heavy-duty bench legs formed from 1.2mm 304 stainless steel with adjustable feet; height range 80–105mm
• Two additional rollers supplied for repositioning
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Manufactured in New Zealand
• Packed weight: 260kg; packed volume: 1.36m³

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
