Overview

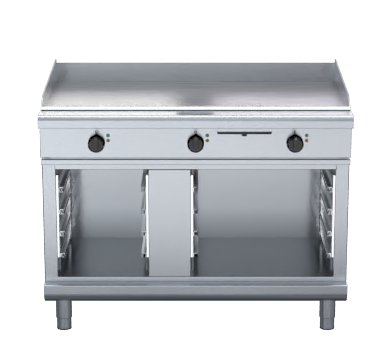

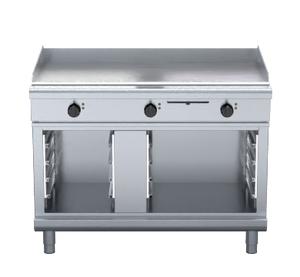

Waldorf GPL8120E-CB 800 Series 1200mm Electric Griddle Low Back Cabinet Base

The Waldorf GPL8120E-CB is a heavy-duty 1200mm electric griddle from the 800 Series, mounted on a solid cabinet base and designed for the rigorous demands of high-volume commercial kitchens. Powered by 16.2kW heating elements and featuring a 20mm thick griddle plate, it delivers consistent, even heat across the entire cooking surface for everything from breakfast service to burgers and beyond.

Built in New Zealand from 304 stainless steel, this unit combines robust construction with practical servicing and cleaning in mind. Top weld sealed plates, a stainless steel grease drawer, and heavy-duty reinforced control knobs all contribute to a reliable, low-maintenance workhorse. Optional ribbed or chrome mirror plate configurations allow the unit to be tailored to specific menu requirements.

Key Benefits

• The 20mm thick griddle plate retains and distributes heat evenly, reducing hot spots and ensuring consistent cooking results across the full 1200mm width.
• A single temperature control zone with thermostatic regulation across a 100 to 290°C range keeps operation straightforward and precise during busy service periods.
• Top weld sealed plates prevent grease and food debris from penetrating joins, making the cooking surface faster and easier to clean between services.
• The stainless steel grease drawer collects runoff efficiently, simplifying daily clean-down and supporting food safety compliance.
• Adjustable feet and two additional rollers make installation straightforward and allow the unit to be repositioned when kitchen layouts change.
• Heavy-duty reinforced control knobs withstand the wear of continuous commercial use, reducing the likelihood of maintenance interruptions.
• The cabinet base provides enclosed storage beneath the cooking surface, making productive use of space in busy kitchen environments.
• Optional ribbed or chrome mirror plate upgrades allow operators to adapt the griddle for different cooking styles without replacing the entire unit.

Key Features

• 1200mm wide electric griddle on cabinet base
• 16.2kW heating elements rated at 3P+N+E, 400-415Vac, 50/60Hz
• 20mm thick griddle plate for superior heat retention and even cooking
• Single temperature control zone with thermostatic control, 100-290°C range
• Top weld sealed plates for hygienic, easy-clean cooking surface
• Stainless steel grease drawer for efficient fat collection and simple removal
• Heavy-duty reinforced control knobs for durability in continuous commercial use
• Adjustable feet plus 2 additional rollers for flexible installation and repositioning
• Low back splashback included
• Cabinet door base with enclosed storage
• Constructed from 304 stainless steel throughout
• Optional ribbed plate or chrome mirror plate available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
