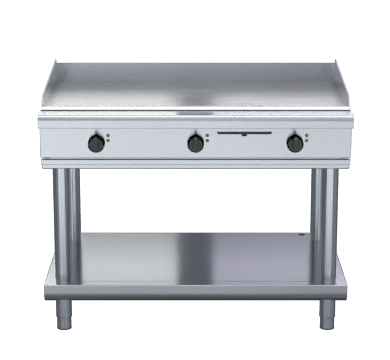

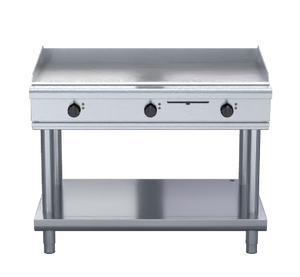

Waldorf GPL8120E-LS 800 Series 1200mm Electric Griddle with Leg Stand, Low Back Configuration

The Waldorf GPL8120E-LS is a 1200mm wide electric griddle from the acclaimed 800 Series, presented in a low back (splashback) configuration and supplied complete with a leg stand for a self-contained, floor-standing installation. Powered by 16.2kW heating elements and fitted with a 20mm thick machined griddle plate, this unit delivers consistent, high-capacity cooking performance across breakfasts, burgers, seafood, and a broad range of grilled menu items in busy commercial kitchens.

Constructed throughout from 304 stainless steel, the GPL8120E-LS is engineered for long-term durability and ease of maintenance, incorporating top-welded sealed plates, overlapping plate edges at the front and rear, and a stainless steel grease drawer. The leg stand is fully modular, supporting matched suite configurations with other Waldorf 800 Series equipment, and features adjustable feet together with two additional rollers for straightforward levelling and repositioning on the kitchen floor.

Key Benefits

• The 20mm thick machined griddle plate retains and distributes heat evenly across the full 1200mm surface, reducing hot spots and ensuring consistent cook results throughout service.
• Three independent heat zones, each governed by a 50-300°C thermostat covering left, centre, and right sections, allow precise temperature management across the plate, minimising energy consumption and the risk of over or undercooking.
• Top-welded sealed plates combined with overlapping front and rear plate edges remove food trap points entirely, cutting cleaning time significantly during and between service periods.
• The stainless steel grease drawer provides a hygienic, contained collection point for fats and drippings, making grease management quick and helping to reduce fire risk.
• Large, heat-resistant reinforced control knobs with easy-view settings and indicator lights for power and heating status reduce operator error and withstand the physical demands of a high-volume service environment.
• Adjustable feet and two additional rollers make installation, repositioning, and routine servicing straightforward without the need for specialist equipment.
• The fully modular leg stand design allows the griddle to integrate seamlessly with other Waldorf 800 Series equipment, supporting a cohesive and efficient kitchen suite layout.
• Optional ribbed plate sections or mirror-finish hard chrome plates provide versatile cooking surface configurations to suit different menu requirements without purchasing a separate unit.

Key Features

• 1200mm wide electric griddle in low back (splashback) configuration, mounted on leg stand, 800 Series
• 16.2kW heating elements; 3P+N+E, 400-415Vac, 50/60Hz
• 20mm thick machined griddle plate as standard
• Separate left, centre, and right heat zones with three independent 50-300°C thermostats
• Top-welded sealed plates for a hygienic, flush cooking surface
• Overlapping plate finish at front and rear for easy cleaning
• Side and rear splash guards in 304 stainless steel, 2.5mm thick
• 2.0mm thick grease channel
• Stainless steel grease drawer
• Welded hob surround finished with a 304 stainless steel bull nose profile, 1.5mm thick
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Large, heat-resistant reinforced control knobs with easy-view settings
• Indicator lights for power and heating status
• Leg stand supplied as standard with this model (-LS)
• 63mm diameter legs constructed from 304 stainless steel, 1.2mm gauge, heavy-duty, with adjustable feet
• Two additional rollers for ease of movement and repositioning
• Fully modular framed stand shelf with 0.9mm 304 stainless steel finish
• Quick-assembly leg stand design requiring no tools
• Suitable for rear or through-shelf connection to griddle
• Fully modular for matched Waldorf 800 Series suite configuration
• Optional ribbed plate sections available
• Optional mirror-finish hard chrome plates available
• Manufactured in New Zealand
• Overall dimensions: 1200mm W x 805mm D x 972mm H
• Packed weight: 260kg

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
