Overview

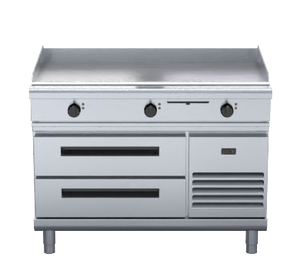

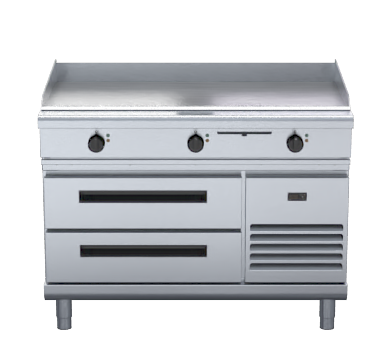

Waldorf GPL8120E-RB 800 Series 1200mm Electric Griddle Low Back with Refrigerated Base

The Waldorf GPL8120E-RB pairs a 1200mm electric griddle with a fully integrated refrigerated base to create a self-contained, modular cooking and cold-storage solution purpose-built for high-volume commercial kitchens. A 16.2kW heating element system powers a 20mm thick machined griddle plate, while the refrigerated base holds a temperature range of -2°C to +8°C, keeping ingredients at food-safe temperatures directly beneath the cooking surface.

Constructed throughout in 304 stainless steel and built to Waldorf 800 Series standards, the unit is engineered for durability, hygiene and ease of servicing. The ventilated R134a refrigeration system is rated for tropical climates, requires no condensate drain, and incorporates a condensing unit that can be withdrawn from the front of the appliance for straightforward maintenance. Optional ribbed plate sections or hard chrome mirror finish plates allow the griddle to be configured to match specific menu and cooking style requirements.

Key Benefits

• Integrated refrigerated base keeps prep ingredients within arm's reach of the cooking surface, reducing travel time and improving service efficiency.
• Tropical climate-rated refrigeration maintaining -2°C to +8°C ensures consistent food-safe temperatures even in demanding hot kitchen environments.
• 16.2kW of electric heating across a 20mm thick machined plate delivers rapid, even heat distribution for consistent cooking results across the entire surface.
• No condensate drain required simplifies installation and removes a common maintenance point from the equation.
• Front-access condensing unit allows servicing to be completed without relocating the appliance, minimising downtime across busy service periods.
• Two GN 2/1 refrigerated drawers fitted with robust European telescopic guides and tool-free replaceable magnetic gaskets make restocking and cleaning fast and straightforward.
• Overlapping plate finish at front and rear, together with a dedicated stainless steel grease drawer and grease channel, simplifies end-of-service cleaning routines.
• Adjustable feet and two additional rollers provide precise levelling capability and allow easy repositioning within the kitchen layout.
• Optional ribbed plate sections or mirror finish hard chrome plates offer flexibility to accommodate a wide range of cooking styles and menu requirements.

Key Features

• 1200mm electric griddle mounted on a fully integrated refrigerated base
• 16.2kW heating elements; power supply 3P+N+E, 400-415Vac, 50/60Hz
• 20mm thick machined griddle plate as standard
• Single temperature control zone with thermostatic control
• Optional ribbed plate sections available
• Optional mirror finish hard chrome plates available
• Top weld sealed griddle plates
• Overlapping plate finish at front and rear for easy cleaning
• Side and rear splash guards in 2.5mm thick 304 stainless steel
• 2.0mm thick grease channel
• Welded hob surround constructed from 1.5mm 304 stainless steel with a bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Stainless steel grease drawer
• Heavy-duty reinforced control knobs
• Self-contained suite-matched modular refrigerated base
• Ventilated refrigeration system using R134a refrigerant
• Tropical climate rated; operating temperature range -2°C to +8°C
• Digital electronic thermostat with automatic defrost
• Automatic evaporation of defrost water; no condensate drain required
• Two GN 2/1 refrigerated drawers with 100mm deep pan capacity
• Robust European telescopic drawer guides rated for heavy-duty use
• Magnetic drawer gaskets designed for tool-free replacement
• 50mm fully foamed CFC-free insulation
• 304 stainless steel exterior and interior throughout
• Anti-corrosion treated evaporator
• Condensing unit removable through the front of the unit for servicing
• 63mm diameter legs in heavy-duty 1.2mm 304 stainless steel with adjustable feet
• Two additional rollers for ease of repositioning
• Low back (splashback) configuration
• Manufactured in New Zealand

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz|Phase loading
• Temperature Control: Thermostatic
