Overview

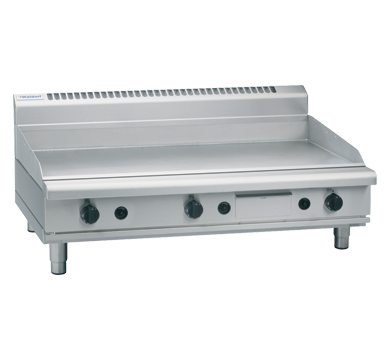

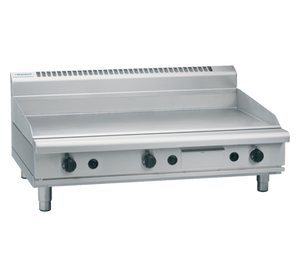

Waldorf GPL8120G-B 800 Series 1200mm Gas Griddle Low Back Version – Bench Model

The Waldorf GPL8120G-B is a heavy-duty 1200mm bench-mount gas griddle from the 800 Series, designed to meet the demands of high-volume commercial kitchens. Built from 304 stainless steel in New Zealand, it features a 20mm thick smooth griddle plate with top weld sealed construction, delivering consistent, even heat across the entire cooking surface for breakfasts, burgers, seafood and more.

Powered by a 108MJ/hr thermostatic burner system across four burners, the GPL8120G-B offers precise temperature control across a range of 100–290°C and accepts both natural gas and LPG. Push-button piezo ignition, a stainless steel grease drawer, heavy-duty reinforced control knobs and adjustable feet with two additional rollers all contribute to smooth, efficient daily operation. Optional ribbed or chrome mirror plate configurations are available to suit different menu requirements.

Key Benefits

• Even heat distribution across the full 1200mm smooth plate reduces hot spots and supports consistent cooking results during peak service periods.
• Thermostatic temperature control across 100–290°C allows precise adjustment for a wide variety of menu items, from delicate fish to seared burgers.
• Push-button piezo ignition enables fast, tool-free startup so kitchen staff can get the griddle running quickly at the start of each service.
• The 20mm thick griddle plate retains heat effectively, minimising temperature recovery time when cold product is added and maintaining throughput.
• Top weld sealed plates prevent grease and debris from penetrating joints, making the surface easier to clean and reducing downtime between services.
• A removable stainless steel grease drawer simplifies fat collection and disposal, supporting hygiene and reducing the effort required for daily cleaning.
• Adjustable feet and two additional rollers make levelling and repositioning straightforward during installation or routine kitchen reconfiguration.
• Compatibility with both natural gas and LPG through a 3/4 BSP male connection provides installation flexibility across a range of commercial sites.
• Optional ribbed or chrome mirror plate configurations allow the unit to be tailored to specific cooking applications without requiring a separate piece of equipment.

Key Features

• 1200mm wide bench-mount gas griddle in the Waldorf 800 Series
• 20mm thick smooth griddle plate for superior heat retention and even cooking
• Top weld sealed plate construction prevents grease ingress and simplifies cleaning
• 108MJ/hr thermostatic burner system with four burners and a temperature range of 100–290°C
• Push-button piezo ignition for fast, reliable startup without external ignition tools
• Heavy-duty reinforced control knobs for durability in demanding kitchen environments
• Removable stainless steel grease drawer for hygienic, convenient fat collection
• Adjustable feet and two additional rollers for flexible levelling and repositioning
• Accepts natural gas and LPG via R 3/4 (BSP) male gas connection
• 304 stainless steel construction throughout
• Low back version with splashback included
• No undershelf on this configuration
• Optional ribbed or chrome mirror plate available as alternatives to the standard smooth plate
• Designed and manufactured in New Zealand
• Total power output: 30.0 kW
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 30.0 kW
• Temperature Control: Thermostatic
