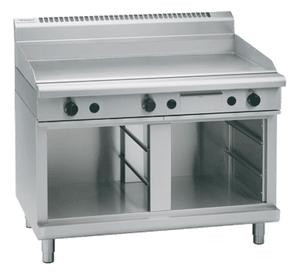

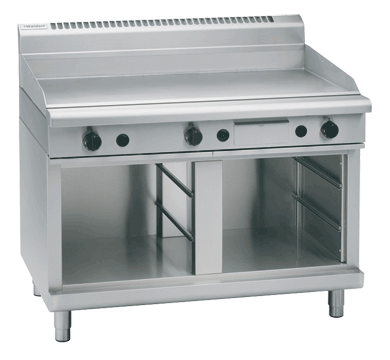

Waldorf GPL8120G-CB 800 Series 1200mm Gas Griddle Low Back Version Cabinet Base

The Waldorf GPL8120G-CB is a 1200mm wide gas griddle from the 800 Series, mounted on a fully enclosed cabinet base. Constructed from 304 stainless steel, it delivers 108MJ/hr across four thermostatic burners, covering a temperature range of 100 to 290°C and providing consistent, controllable heat across a smooth 20mm thick griddle plate suited to high-volume breakfast, burger and protein cookery.

Designed and manufactured in New Zealand, this unit combines a robust heavy-gauge cooking surface with practical features including push-button piezo ignition, a stainless steel grease drawer, top weld-sealed plates and adjustable feet with two additional rollers for straightforward repositioning. Optional ribbed or chrome mirror plate finishes are available, making the GPL8120G-CB a versatile centrepiece for demanding commercial kitchen lines.

Key Benefits

• Thermostatic temperature control across the full 100 to 290°C range allows precise adjustment for diverse menu items and reduces the risk of overcooking during busy service periods.
• A 20mm thick griddle plate retains heat effectively, recovering temperature quickly between batches and maintaining consistent results across the entire cooking surface.
• 108MJ/hr total burner output across four burners supports sustained high-volume output in fast-paced commercial environments.
• Push-button piezo ignition provides reliable, tool-free lighting for each burner, reducing downtime at the start of service.
• The stainless steel grease drawer captures drippings efficiently and slides out for quick emptying, supporting faster kitchen turnaround and easier hygiene management.
• Top weld-sealed plates prevent grease and food debris from penetrating plate joints, simplifying daily cleaning and extending the life of the cooking surface.
• Adjustable feet combined with two additional rollers make installation straightforward and allow the unit to be repositioned for cleaning or servicing without heavy lifting.
• Cabinet base construction provides enclosed undercounter storage within the unit footprint, maximising useful space in the kitchen.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, offering flexibility across different kitchen gas supply configurations.

Key Features

• 1200mm wide gas griddle on enclosed cabinet base
• 800 Series construction in 304 stainless steel
• 20mm thick smooth griddle plate as standard
• Top weld-sealed plate joints for hygienic, easy-clean surface
• Four-burner thermostatic system rated at 108MJ/hr total output
• Temperature range of 100 to 290°C with thermostatic control
• Total power output of 30.0kW
• Push-button piezo ignition per burner
• Heavy-duty reinforced control knobs for durability under constant use
• Stainless steel grease drawer for efficient fat collection and removal
• Low back splashback included
• Cabinet door undercounter enclosure
• Adjustable feet plus two additional rollers for levelling and repositioning
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Optional ribbed plate or chrome mirror plate available
• Manufactured in New Zealand
• Dimensions: 1200mm W x 805mm D x 970mm H
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 30.0 kW
• Temperature Control: Thermostatic
