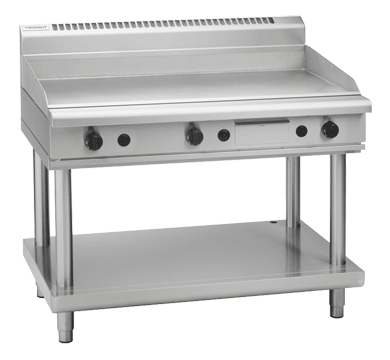

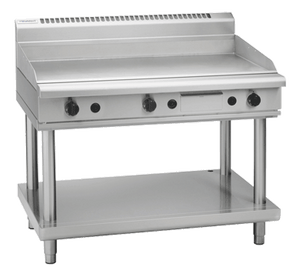

Waldorf GPL8120G-LS 800 Series 1200mm Gas Griddle Low Back Version – Leg Stand

The Waldorf GPL8120G-LS is a heavy-duty 1200mm gas griddle from the respected 800 Series, mounted on a leg stand for a self-contained, floor-standing installation. Designed and built in New Zealand from 304 stainless steel, it delivers 108MJ/h of thermostatic burner output across four burners, giving operators precise temperature control between 100°C and 290°C over a generous smooth cooking surface suited to high-volume breakfast service, burgers, seafood, and more.

The griddle plate is a robust 20mm thick smooth surface with top weld sealed construction, ensuring consistent heat transfer and long-term durability under continuous commercial use. Push-button piezo ignition, heavy-duty reinforced control knobs, adjustable feet, and two additional rollers make daily operation and repositioning straightforward, while the stainless steel grease drawer and sealed plate design keep cleaning fast and hygienic. Optional ribbed or chrome mirror plate variants are available for operators requiring different cooking surface characteristics.

Key Benefits

• Wide 1200mm cooking surface accommodates large volumes of food simultaneously, reducing service bottlenecks during peak periods.
• Thermostatic burner control across 100°C to 290°C lets kitchen staff dial in precise temperatures for different proteins and products, improving consistency.
• A 20mm thick griddle plate retains and distributes heat evenly, minimising cold spots and ensuring reliable cooking results across the full surface.
• Push-button piezo ignition provides quick, reliable start-up without the need for a separate lighter, improving kitchen safety and convenience.
• Stainless steel grease drawer channels and collects fat efficiently, speeding up the cleaning process between service periods.
• Adjustable feet and two additional rollers allow the unit to be levelled on uneven floors and repositioned with minimal effort during kitchen reconfiguration or cleaning.
• Top weld sealed plates prevent grease and food debris from seeping beneath the surface, making deep cleaning faster and extending the life of the unit.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, offering flexibility across different site gas supplies.
• Optional ribbed or chrome mirror plate upgrades allow operators to adapt the griddle to a wider variety of menu items without purchasing a separate unit.

Key Features

• 1200mm wide gas griddle on leg stand configuration (low back version)
• 800 Series construction in 304 stainless steel, manufactured in New Zealand
• 108MJ/h total burner output across 4 burners, rated at 30.0kW
• Thermostatic temperature control with a range of 100°C to 290°C
• 20mm thick smooth griddle plate for superior heat retention and even cooking
• Top weld sealed plate construction prevents debris ingress and simplifies cleaning
• Push-button piezo ignition for fast, safe start-up
• Heavy-duty reinforced control knobs for durability in demanding kitchen environments
• Stainless steel grease drawer for efficient fat collection and easy removal
• Adjustable feet for levelling on uneven surfaces
• 2 additional rollers for ease of repositioning
• Integrated undershelf for additional storage
• Low back splash guard included
• Compatible with natural gas and LPG; R 3/4 (BSP) male gas connection
• Optional ribbed or chrome mirror griddle plate available as alternatives to standard smooth surface
• Stainless steel finish throughout

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Gas
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 30.0 kW
• Temperature Control: Thermostatic
