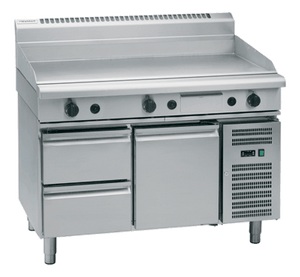

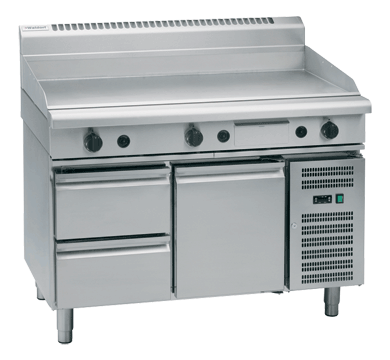

Waldorf GPL8120G-RB 800 Series 1200mm Gas Griddle Low Back Version – Refrigerated Base

The Waldorf GPL8120G-RB combines a heavy-duty 1200mm gas griddle with an integrated refrigerated base, delivering a complete cook-and-store solution within a single 800 Series unit. Built from 304 stainless steel and manufactured in New Zealand, it is engineered for the sustained demands of high-volume commercial kitchens where bench space and workflow efficiency are critical.

The griddle features a 20mm thick smooth plate with top weld sealed construction, driven by a 108MJ/hr thermostatic four-burner system ignited via push-button piezo. Below, the refrigerated base maintains temperatures between 0°C and 4°C, keeping ingredients close at hand throughout service. Optional ribbed or chrome mirror plate finishes allow the unit to be configured for different cooking applications.

Key Benefits

• Integrated refrigerated base keeps perishable ingredients at safe temperatures directly beneath the cooking surface, reducing travel time and improving service speed.
• The 20mm thick griddle plate retains heat effectively across the entire cooking zone, supporting consistent results even during peak service periods.
• Thermostatic temperature control across all four burners allows precise, independent heat management for different ingredients or cooking techniques simultaneously.
• Push-button piezo ignition provides fast, reliable startup without the need for a separate ignition source, reducing downtime at the beginning of service.
• Top weld sealed plates prevent grease and food debris from penetrating joints, simplifying cleaning and supporting food safety compliance.
• A stainless steel grease drawer channels and collects cooking runoff for easy removal and disposal, keeping the cooking surface tidy during service.
• Adjustable feet combined with two additional rollers allow the unit to be levelled precisely on uneven floors and repositioned for cleaning or reconfiguration with minimal effort.
• Compatibility with both natural gas and LPG via a 3/4 BSP male connection gives flexibility for installation across different commercial kitchen setups.
• Optional ribbed or chrome mirror plate upgrades allow the griddle surface to be tailored to specific menu requirements without replacing the entire unit.

Key Features

• 1200mm wide gas griddle mounted on a refrigerated undercounter base
• 108MJ/hr total burner output with thermostatic control across four burners
• 20mm thick smooth griddle plate for superior heat retention and even cooking
• Top weld sealed plate construction for hygienic, easy-clean joints
• Stainless steel grease drawer for efficient fat collection and disposal
• Push-button piezo ignition for quick, reliable burner startup
• Heavy-duty reinforced control knobs built for continuous commercial use
• Adjustable feet plus two additional rollers for levelling and repositioning
• Optional ribbed or chrome mirror plate available as alternative cooking surfaces
• Refrigerated base with 0°C to 4°C operating temperature range
• Refrigeration powered by a 1.8A, 220–240V AC, 50Hz, single-phase 10A plug cordset
• Natural gas and LPG compatible via R 3/4 BSP male gas connection
• 304 stainless steel construction throughout
• Low back splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 0°C to 4°C
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 1.8A|1P+N+E 3 pin 10A plug cordset fitted|220-240Vac|50Hz
• Temperature Control: Thermostatic
