Overview

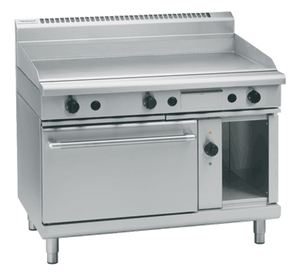

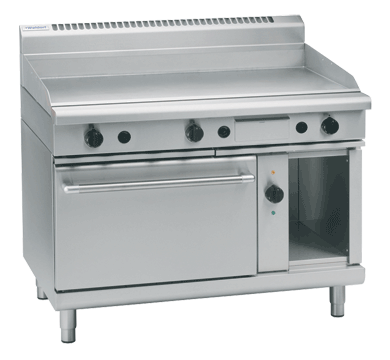

Waldorf GPL8121GEC 800 Series 1200mm Gas Griddle Electric Convection Oven Range Low Back Version

The Waldorf GPL8121GEC is a heavy-duty 1200mm combination range from the 800 Series, pairing a high-output gas griddle top with a 2/1 GN electric convection oven beneath, all finished in 304 stainless steel and manufactured in New Zealand. Designed for demanding commercial kitchens, it delivers a 108MJ/hr thermostatic burner system across 8 burners, a 20mm thick smooth griddle plate with top weld sealed construction, and a drop-down oven door for efficient access during busy service periods.

The unit includes a storage cabinet on the right-hand side, a stainless steel grease drawer for straightforward cleaning, push-button piezo ignition, and adjustable feet with two additional rollers for easy repositioning. The electric convection oven operates on a 415V 3-phase supply at 6.6kW with a thermostatic temperature range of 150 to 300°C and accommodates four shelves, making it well suited to high-volume baking, roasting, and grilling across cafes, restaurants, and catering operations.

Key Benefits

• High-output 108MJ/hr thermostatic gas burner system delivers rapid, consistent heat across the full 1200mm griddle surface, reducing wait times during peak service.
• 20mm thick smooth griddle plate retains heat evenly, minimising temperature recovery time between successive batches and supporting continuous high-volume cooking.
• 2/1 GN electric convection oven with fan-forced heat ensures uniform results across all four shelves, ideal for simultaneous multi-tray baking or roasting.
• Drop-down oven door provides unobstructed access to the full oven cavity, making loading and unloading large trays faster and safer.
• Push-button piezo ignition allows quick, tool-free lighting of the griddle burners, streamlining kitchen start-up routines.
• Stainless steel grease drawer and top weld sealed plates simplify daily cleaning and help maintain hygienic cooking surfaces.
• Adjustable feet plus two additional rollers allow the unit to be levelled on uneven floors and repositioned without heavy lifting.
• Optional ribbed or chrome mirror griddle plate expands the cooking possibilities, accommodating different menu requirements without replacing the entire unit.
• Storage cabinet on the right-hand side keeps frequently used tools and accessories close at hand, improving workflow efficiency.

Key Features

• Waldorf 800 Series, 1200mm wide combination range with low back configuration
• 108MJ/hr thermostatic gas burner system across 8 burners
• 20mm thick smooth griddle plate as standard; optional ribbed or chrome mirror plate available
• Top weld sealed griddle plates for structural integrity and easier cleaning
• Stainless steel grease drawer positioned for convenient removal and emptying
• 2/1 GN electric convection oven with fan-forced air circulation
• Oven temperature range 150 to 300°C with thermostatic control
• 4 oven shelves included
• Drop-down oven door for full, unobstructed cavity access
• 6.6kW electric oven on 415V 3-phase, single-phase connection
• Push-button piezo ignition on gas griddle burners
• Storage cabinet on the right-hand side of the unit
• Heavy-duty reinforced control knobs for durability in commercial use
• Adjustable feet plus 2 additional rollers for levelling and repositioning
• Stainless steel splashback included
• 304 stainless steel construction throughout
• Compatible with natural gas and LPG; R 3/4 BSP male gas connection
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• Dimensions: 1200mm W x 805mm D x 972mm H

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Griddle Surface: Smooth
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
