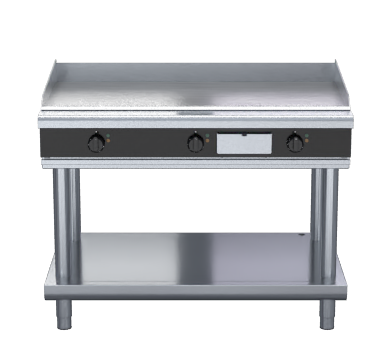

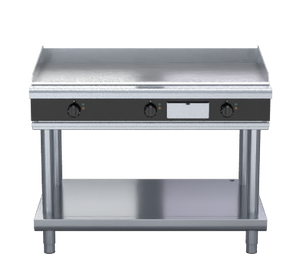

Waldorf Bold GPLB8120E-LS 1200mm Electric Griddle with Leg Stand (Low Back Version)

The Waldorf Bold GPLB8120E-LS is a heavy-duty 1200mm electric griddle built for high-volume commercial kitchens, delivering 16.2kW of heating power through elements positioned beneath a 20mm thick machined griddle plate. Constructed throughout from 304 stainless steel and manufactured in New Zealand, the unit sits on a matching modular leg stand and divides its cooking surface into three independently thermostatically controlled zones spanning the left, centre and right sections, allowing operators to cook different food types at different temperatures simultaneously.

A smooth griddle plate is supplied as standard, with optional ribbed plate sections and a mirror finish hard chrome plate available to broaden menu capability. The unit incorporates top weld-sealed plates with overlapping front and rear edges for ease of cleaning, a dedicated stainless steel grease drawer, and a tool-free quick-assembly leg stand. Available in default black with further colour options, the GPLB8120E-LS integrates neatly into a matched Waldorf Bold suite and is supported by a 24-month warranty.

Key Benefits

• Three independently controlled heat zones across the 1200mm surface allow kitchen staff to cook different proteins, vegetables or breakfast items at separate temperatures simultaneously, maximising throughput during busy service periods.
• The 20mm thick machined griddle plate retains and distributes heat evenly across the entire cooking surface, reducing cold spots and delivering consistent results through large batch cooking.
• Overlapping plate edges at the front and rear, combined with a dedicated stainless steel grease drawer, simplify end-of-service cleaning and speed up turnaround between shifts.
• Optional ribbed plate sections and mirror finish hard chrome plates extend menu flexibility without the need for an additional piece of equipment.
• The quick-assembly modular leg stand goes together without any tools and incorporates adjustable feet plus two additional rollers, making installation, repositioning and servicing considerably faster.
• Large heat-resistant reinforced control knobs with clearly marked settings and individual indicator lights for both power and heating status reduce operator error during high-pressure service periods.
• Fully modular construction allows the griddle and stand to integrate seamlessly into a complete Waldorf Bold suite, supporting a consistent and professional kitchen layout.
• New Zealand manufacture using 304 stainless steel throughout and a 24-month warranty provide long-term confidence in demanding commercial environments.

Key Features

• 1200mm wide electric griddle mounted on a dedicated leg stand
• 16.2kW total heating element output rated at 3P+N+E, 400-415Vac, 50/60Hz
• 20mm thick machined griddle plate supplied as standard
• Three independent thermostatic heat zones: left, centre and right
• Temperature range 50-300°C per zone via three individual thermostats
• Overlapping plate finish at front and rear for straightforward cleaning
• Top weld-sealed griddle plates
• Stainless steel grease drawer
• Side and rear splash guards in 2.5mm thick 304 stainless steel
• 2.0mm thick grease channel running to sides and rear
• Welded hob surround constructed from 1.5mm 304 stainless steel with a bull nose profile
• Splashback and side cladding panels in 1.2mm 304 stainless steel
• Front panels fabricated from 0.9mm 304 stainless steel
• Large heat-resistant reinforced control knobs with easy-view settings
• Separate indicator lights for power and heating status
• Optional ribbed plate sections available
• Optional mirror finish hard chrome plates available
• Leg stand legs are 63mm diameter, constructed from 1.2mm 304 stainless steel with adjustable feet
• Stand fitted with two additional rollers for ease of repositioning
• Modular stand shelf with a 0.9mm 304 stainless steel surface, braced by a stainless steel backstop panel running between the shelf and the top for rigidity and convenience
• Quick-assembly leg stand design requiring no tools
• Gas connection routing can be accommodated to the rear or through the shelf where applicable
• Fully modular construction for integration into a matched Waldorf Bold suite
• Default colour black with additional colour options available
• Manufactured in New Zealand from 304 stainless steel throughout
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Gas Connection: 3/4" BSP Male
• Burner Output (MJ/h): 108
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Number of Burners: 4
• Griddle Surface: Smooth
• Power Rating: 16.2kW|3P+N+E|400-415Vac|50/60Hz
• Temperature Control: Thermostatic
