Overview

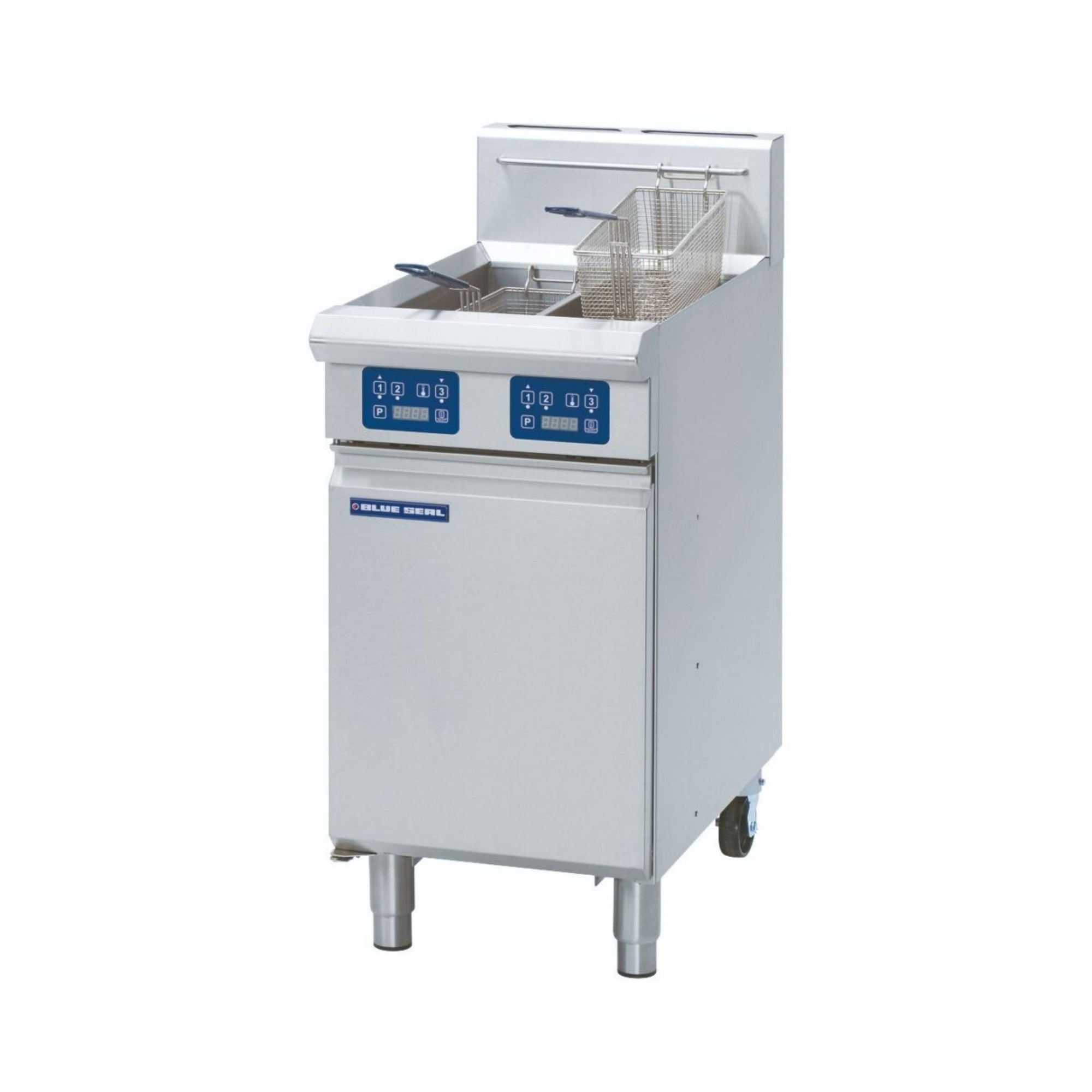

Blue Seal GT46E Evolution Series 450mm Twin Pan Gas Fryer

The Blue Seal GT46E Evolution Series is a 450mm freestanding commercial twin pan gas fryer built for medium to high-volume kitchens that need flexible, independent frying capability without sacrificing bench space. Each of the two 13-litre stainless steel fry tanks operates independently, allowing different food types to be cooked simultaneously with no flavour transfer, while Blue Seal's patented Vee Ray infrared burner technology delivers a combined 90MJ/hr of gas output for rapid heat-up and outstanding oil recovery throughout a busy service.

Designed and manufactured in New Zealand from 304 stainless steel, the GT46E features digital electronic thermostats on each pan with a temperature range of 88–193°C, three product timers per pan (six total), and an over-temperature safety cut-out for consistent, safe operation. The cool-zone V-tank design extends oil life, simplifies cleaning, and reduces running costs, while the compact 450mm footprint and modular Evolution Series format make it straightforward to integrate into a complete professional kitchen suite. Available in Natural Gas or LPG configurations.

Key Benefits

• Independent twin pan operation lets you fry different products at different temperatures simultaneously, preventing flavour transfer and improving service flexibility.
• Vee Ray patented infrared burners deliver 2 x 45MJ/hr (90MJ/hr total), producing a 31kg/hr production rate and fast oil recovery to keep output high during peak periods.
• Six product timers across two pans (three per pan) help kitchen staff manage multiple frying batches accurately and reduce the risk of over- or under-cooked product.
• Cool-zone V-tank design keeps food debris away from the active heat zone, slowing oil degradation, cutting oil replacement costs, and making cleaning faster.
• Digital LCD temperature controls on each pan allow precise, repeatable results across an 88–193°C range, suiting everything from delicate seafood to thick-cut chips.
• Over-temperature safety cut-out provides an additional layer of protection for staff, equipment, and oil quality in a high-output environment.
• Compact 450mm width maximises available kitchen space while still providing dual independent frying zones suited to medium to high-volume operations.
• Supplied ready to use with two standard baskets, 150mm adjustable stainless steel legs for easy cleaning beneath the unit, and a 165mm splashback included.

Key Features

• 450mm wide freestanding twin pan gas fryer in the Blue Seal Evolution Series
• Two independent 13-litre fry tanks, 26 litres total oil capacity
• 2 x 45MJ/hr Vee Ray patented infrared burners, 90MJ/hr combined gas output
• Production rate of 31kg/hr
• Digital electronic thermostat per pan with digital LCD display
• Thermostat temperature range 88–193°C
• Three product timers per pan, six product timers total
• Over-temperature safety cut-out on each pan
• Cool-zone open V-tank design to extend oil life and simplify maintenance
• Constructed from 304 stainless steel throughout
• Integrated 165mm splashback
• Adjustable 150mm stainless steel legs
• 3/4" BSP male gas connection
• Compatible with Natural Gas or LPG (specify at time of ordering)
• 240V, 10A single-phase electrical supply for electronic controls (220–240V, 1P+N+E, 50Hz)
• Supplied with 2 standard frying baskets
• Modular design integrates with the broader Blue Seal Evolution Series kitchen suite
• Manufactured in New Zealand

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Shipping Weight: 129
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 13
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Digital Electronic
• Temperature Control: Thermostat | 90-185°C
• Mounting Type: Freestanding
• Display Type: Digital LCD
• Fuel Type: Gas / Electric
• Number of Burners: 2
• Power Supply: 220-240 Vac | 1P+N+E | 50Hz
• Voltage/Phase: 220-240V | Single Phase
